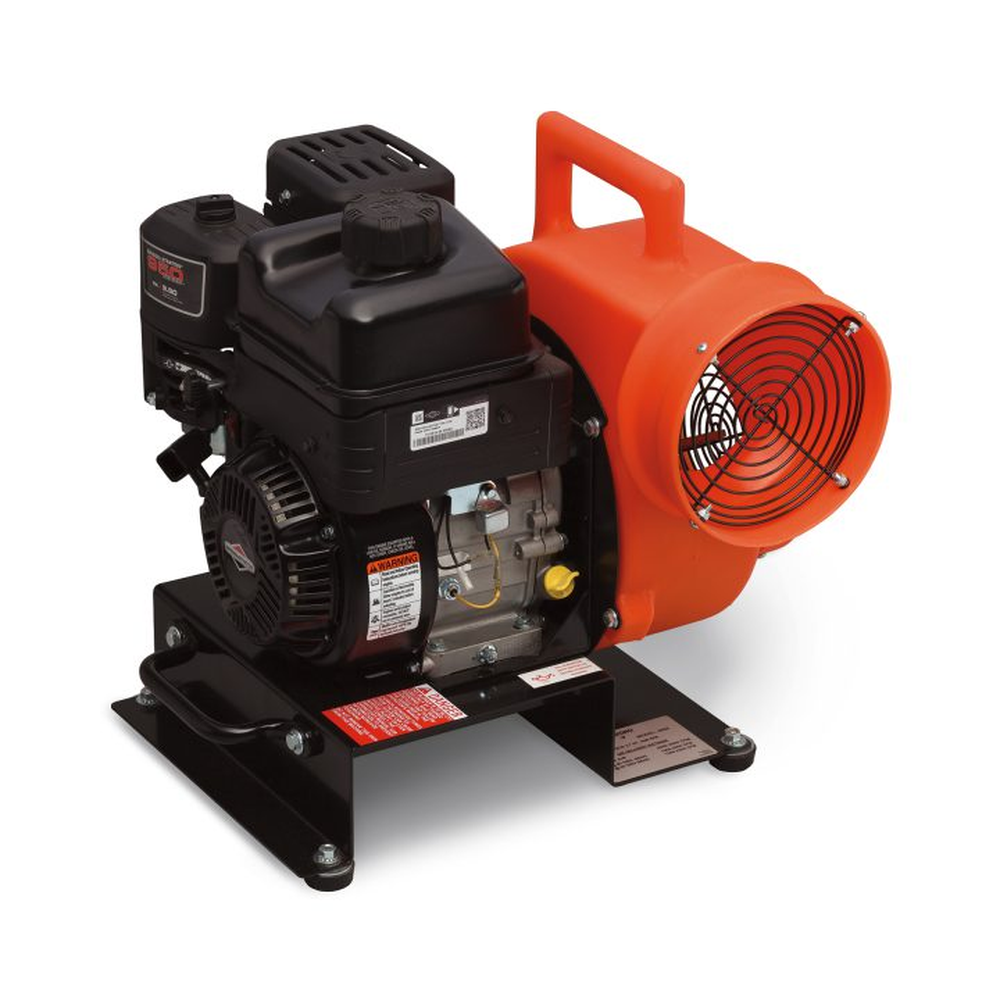

Allegro Centrifugal Gas Blower with Briggs & Stratton Engine

Mfr.: Allegro Industries
Item #: I094574
Mfr. #: 9505
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1,514.34
i h h

Description

A gasoline-powered ventilation blower designed for positive ventilation or fume extraction in locations without electricity. Features a compact design with two 8-inch ports, a powerful 5 HP engine, and durable construction for easy use and storage.
  • 5 HP Briggs & Stratton gasoline engine for electricity-free operation
  • Compact design with two 8-inch ports for ventilation/fume extraction

Features

  • Centrifugal fan style
  • 8-inch flange on intake and exhaust side
  • Tough safety orange polyethylene construction
  • One-piece housing with integrated handle
  • Black powder coated 12-gauge steel base
  • 8-blade cast aluminum fan impeller
  • 6-foot inlet duct extension
  • Steel black powder coated grills
  • Equipped with five rubber feet
  • 5 HP gasoline powered engine (170cc)
  • Four stroke cycle
  • Air cooled
  • 3.2-quart fuel tank
  • Pull start
  • Also available with Honda 3.5 hp engine (PN: 9505-50)
  • Aluminum eight-blade fan
  • Optional yellow single-ply lightweight vinyl/polyester PVC-coated ducting
  • 180F temperature resistant ducting
  • Retractable non-collapsible ducting design
  • Hard drawn spring steel wire helix ducting (ASTM 227 Specs)

Includes

  • 6-foot inlet duct extension
  • Five rubber feet

Specifications

Part Number9505
StyleCentrifugal Fan
Length19 inches (48.2 cm)
Width20 inches (50.8 cm)
Height21.5 inches (54.6 cm)
Weight62 lbs (28.1 kg)
Free Air Flow1390 CFM (2361.62 m3/hr)
One 90 Bend Flow1152 CFM (1957.26 m3/hr)
Two 90 Bends Flow1079 CFM (1833.23 m3/hr)
Port Size8 inches (20.3 cm)
Engine HP5 HP
Engine TypeGasoline Briggs & Stratton
Engine Displacement170cc
Fuel Tank Capacity3.2 quarts (3.03 L)
Fan MaterialCast aluminum
Fan Blades8 blades
Base Material12-gauge steel
Base FinishBlack powder coated
Housing MaterialPolyethylene
Housing ColorSafety orange
Ducting Temp Resist180 degF (82.2 degC)
Ducting MaterialVinyl/polyester PVC-coated
*
*
*
