  • American Pneumatic Tool M117 Paving Breaker

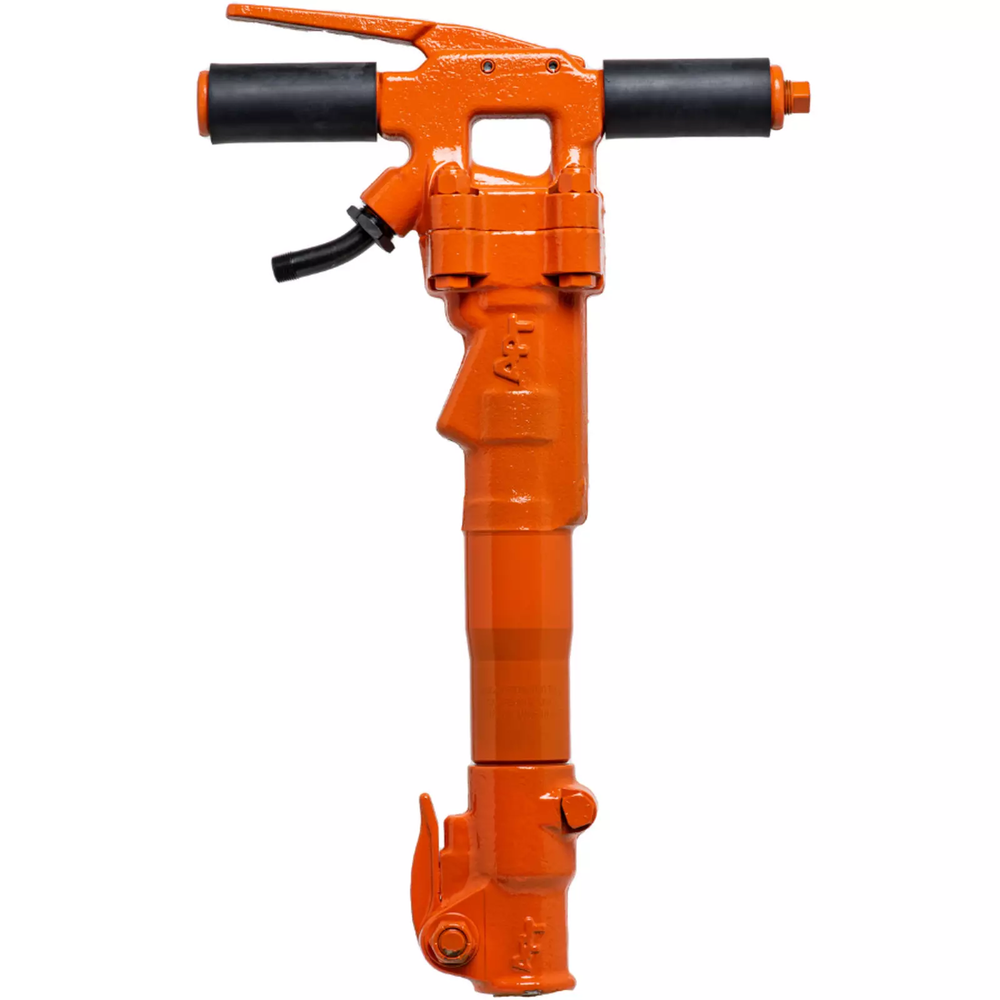

American Pneumatic Tool M117 Paving Breaker

Mfr.: Monopole
Item #: I053286
Mfr. #: 5200
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $1,701.03
i h h

Description

The APT M117, referenced by part number 5200, is a versatile 30-lb class paving breaker designed for exceptional power and maneuverability in light to medium demolition projects. Its lightweight design makes it an ideal choice for work in confined spaces and for breaking up concrete floors. This model combines a compact, easy-to-handle frame with the impact force required for professional general demolition tasks.
  • Patented Automatic Ball Valve
  • Drop-forged, alloy steel handle
  • Built-in automatic oiler

Features

  • Replaceable chuck bushing for extended tool life
  • Vibration-reducing rubber handle grips
  • Latch-type retainer for quick tool changes
  • Rugged four-bolt backhead design
  • Swivel hose connection for improved maneuverability

Includes

  • M117 Paving Breaker (Part # 5200)
  • Universal Hose Connector
Products specifications
Stroke 3-3/8 inch
Impact Rate 1,850 BPM
Chuck Size 1 inch Hex x 4-1/4 inch
Bore Diameter 1-3/4 inch
Length 21-3/4 inch
Air Inlet 3/8 inch Male NPT
Air Consumption 34-38 CFM @ 90 PSI
Weight 33 lbs
Part Number 5200
*
*
*
