Curb Inlet Guard, 75-inch

Item #: I090698
Mfr. #: CIG75
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $127.32
i h h

Description

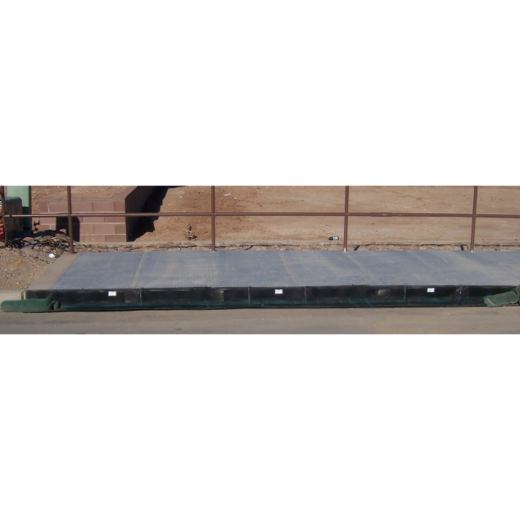

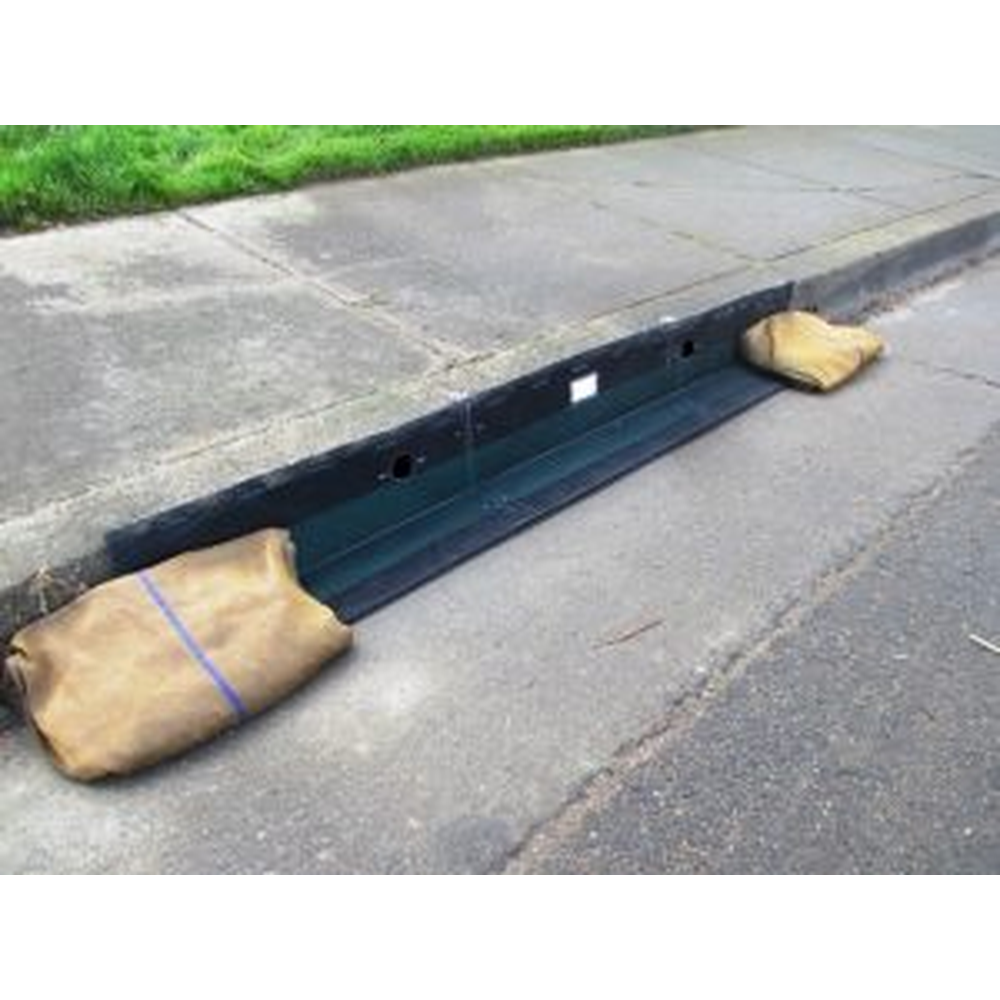

The Ertec Curb Inlet Guard is a patented, low-cost sediment control system designed specifically for curb inlets without grates. This 75-inch module (Model CIG75) is part of a modular series where segments can be overlapped to fit any length of curb opening. It features a unique integrated filter with a 2-inch vertical height that allows water to bypass during high-flow events, preventing street flooding while still capturing sediment and debris.

Constructed from durable, UV-stable, and recyclable HDPE, the unit includes built-in brackets to prevent it from collapsing into the storm drain. It is designed for easy installation, maintenance, and reuse across multiple projects. An optional hydrocarbon absorption jacket is also available for applications involving new asphalt or industrial runoff.

Products specifications
Length 75 inches (6.25 ft)
Fits Opening 5 feet
Total Height 8 inches
Filter Height 2 inches
Material Recyclable HDPE
UV Stability 4 years
Flow Rate 145 gpm/ft2
Service Temp -30 degF to 160 degF
Module Weight 3.0 lbs
AOS 425 microns
*
*
*
