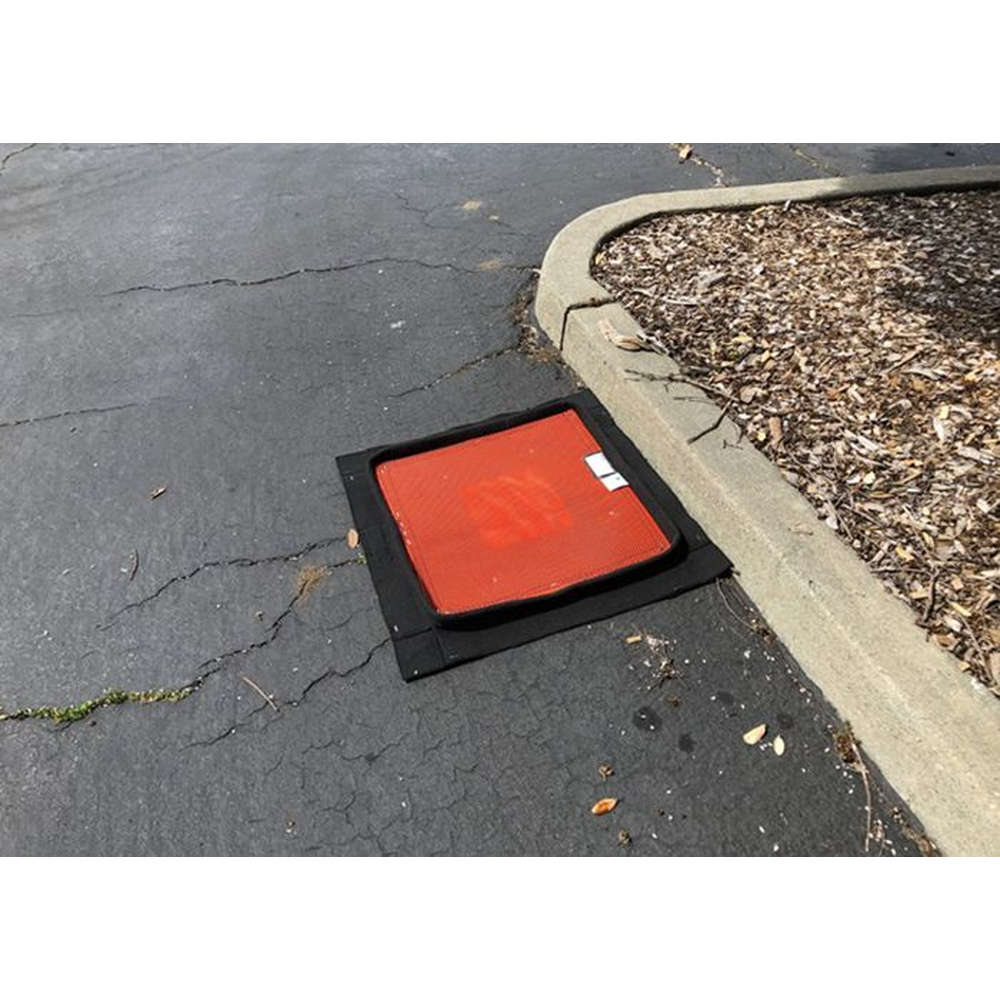

Ertec Gr8 Guard 36-inch x 36-inch Drainage Inlet Protection

Item #: I090710
Mfr. #: GG 36x36
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $146.20
i h h

Description

The ERTEC Gr8 Guard is a high-performance, low-profile drainage inlet protection system designed specifically for grated storm drain inlets in paved areas. This patent-pending system effectively keeps sediment, debris, and trash out of the storm drain system while allowing filtered water to pass through. The design features an integrated filter and an outer berm that causes water to rise at least 1.5 inches before reaching the filter, allowing heavier particles to settle out. It includes a high-flow bypass to reduce the risk of localized flooding during extreme weather events. Installation is exceptionally efficient, typically taking one person less than five minutes, and does not require the removal of heavy metal grates, significantly reducing the risk of installer injury. The system is durable, UV stable, and designed to be reusable across multiple project phases or different sites.

Products specifications
Fits Grate Size Up to 36 inch x 36 inch
Module Weight 0.5 lbs/sq. ft.
Filter AOS 425 microns
Functional Life 4 years (minimum)
Filter Flow Rate 145 gpm/ft2
Tensile Yield 1800 - 2800 lb/in2
Service Temperature -30 degF to 160 degF
UV Resistance UV Stable
Reusability Yes
Installation Time Approx. 5 minutes
*
*
*
