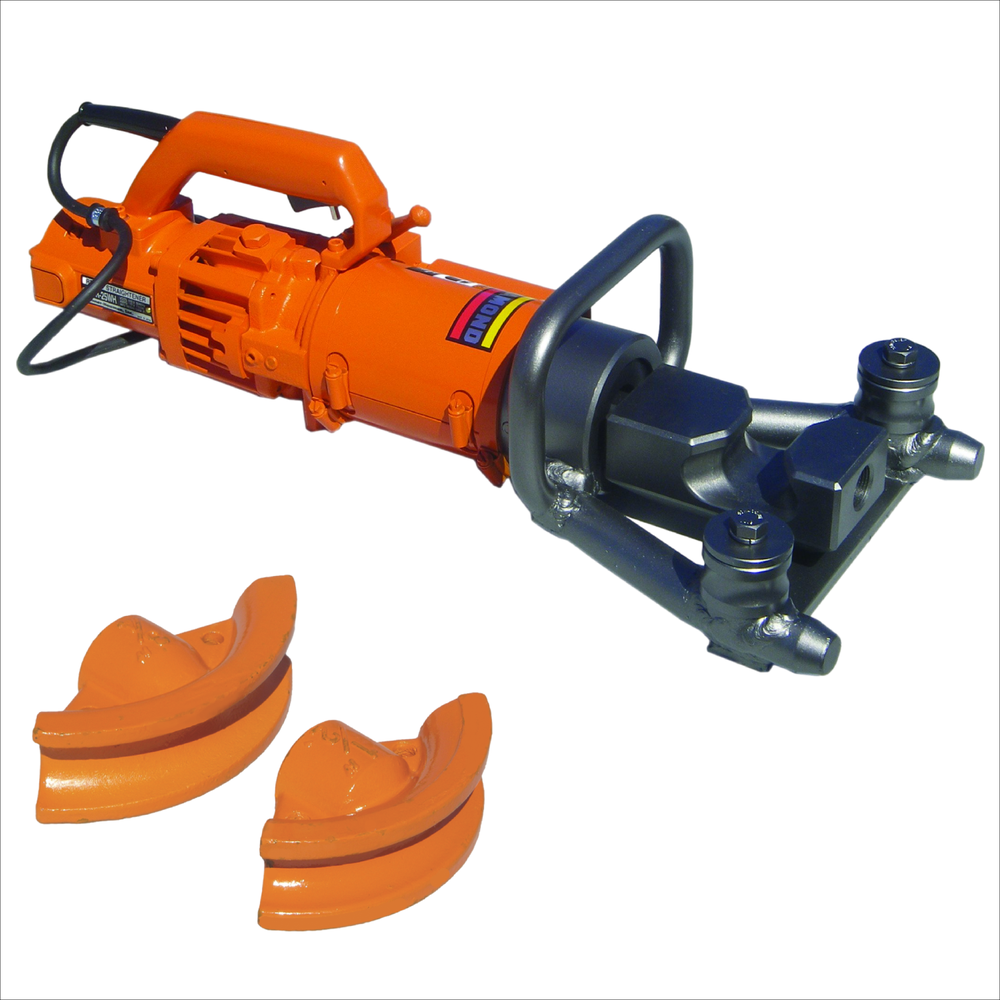

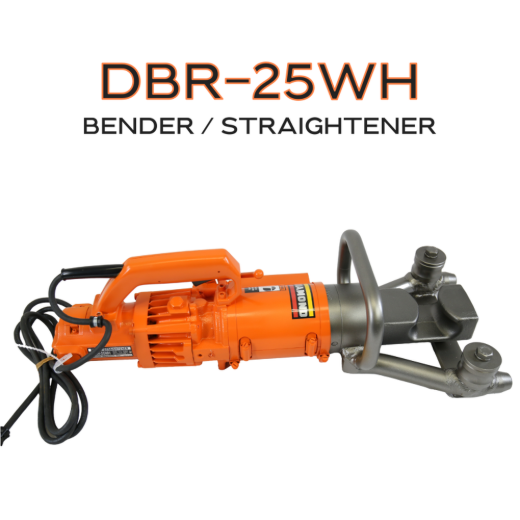

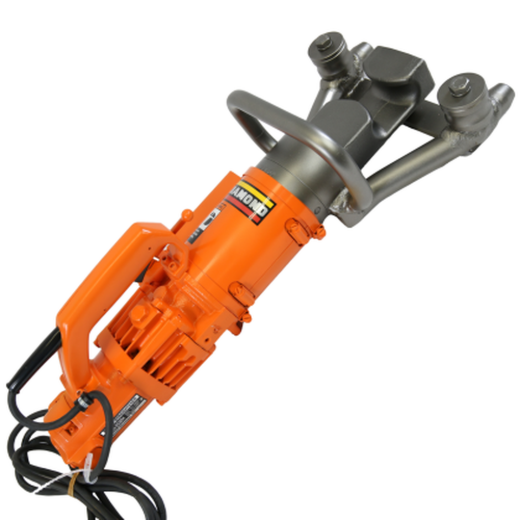

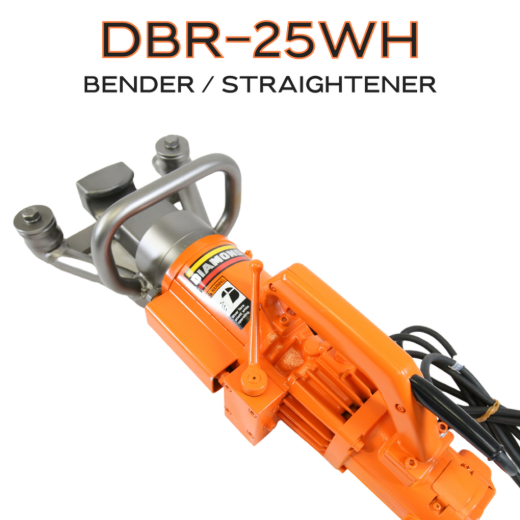

DBR-25WH Portable Rebar Bender/Straightener

Mfr.: BN Products
Item #: I077067
Mfr. #: DBR-25WH
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $5,106.04
i h h

Description

The DBR-25WH is a portable heavy-duty electric/hydraulic tool designed to efficiently bend and straighten rebar up to #8 (1') Grade 60. This versatile unit saves significant man-hours by allowing operators to perform bends or straighten deformed rebar in-place in as little as four seconds. Its specialized push/pull hydraulic system and 360-degree rotating head make it ideal for working in confined spaces or complex job-site environments. Built for durability, it provides between 8.5 and 11 tons of pressure to solve challenging bending applications that other tools cannot handle.
  • Bends up to #8 (1', 25mm) Grade 60 rebar
  • Bends a 90-degree angle in only 4 seconds
  • Straightens rebar bent at 45 degrees or less
  • 360-degree rotating head for versatility

Features

  • Push/pull hydraulic capabilities for in-place use
  • Interchangeable bending hook for various diameters
  • Safety pressure relief valve for overload protection
  • Precision-balanced armature and double-insulated motor
  • Locking trigger switch for operator convenience

Includes

  • DBR-25WH Rebar Bender/Straightener
  • Hydraulic Oil
  • Tool Kit
  • Two Additional Bending Dies (#4 and #6)
  • Molded Carrying Case
  • Instruction Manual
Products specifications
Model Number DBR-25WH
Max Rebar Diameter 1 inch (#8) Grade 60 (25mm)
Bending Angle Up to 94 degrees
Voltage 115V 50/60Hz
Amperage 12 Amps
Bending Speed 4 Seconds
Maximum Pressure 11 Tons (Push) / 8.5 Tons (Pull)
Tool Weight 57.3 lbs (26 kg)
Dimensions (L x W x H) 25.75 inch x 10.5 inch x 7.8 inch
Motor Output 1.5 HP
*
*
*
