Simpson 12In W/4In Embed Truss Anchor

Mfr.: Simpson Strong-Tie
Item #: I093114
Mfr. #: HETA16
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.16
i h h

Description

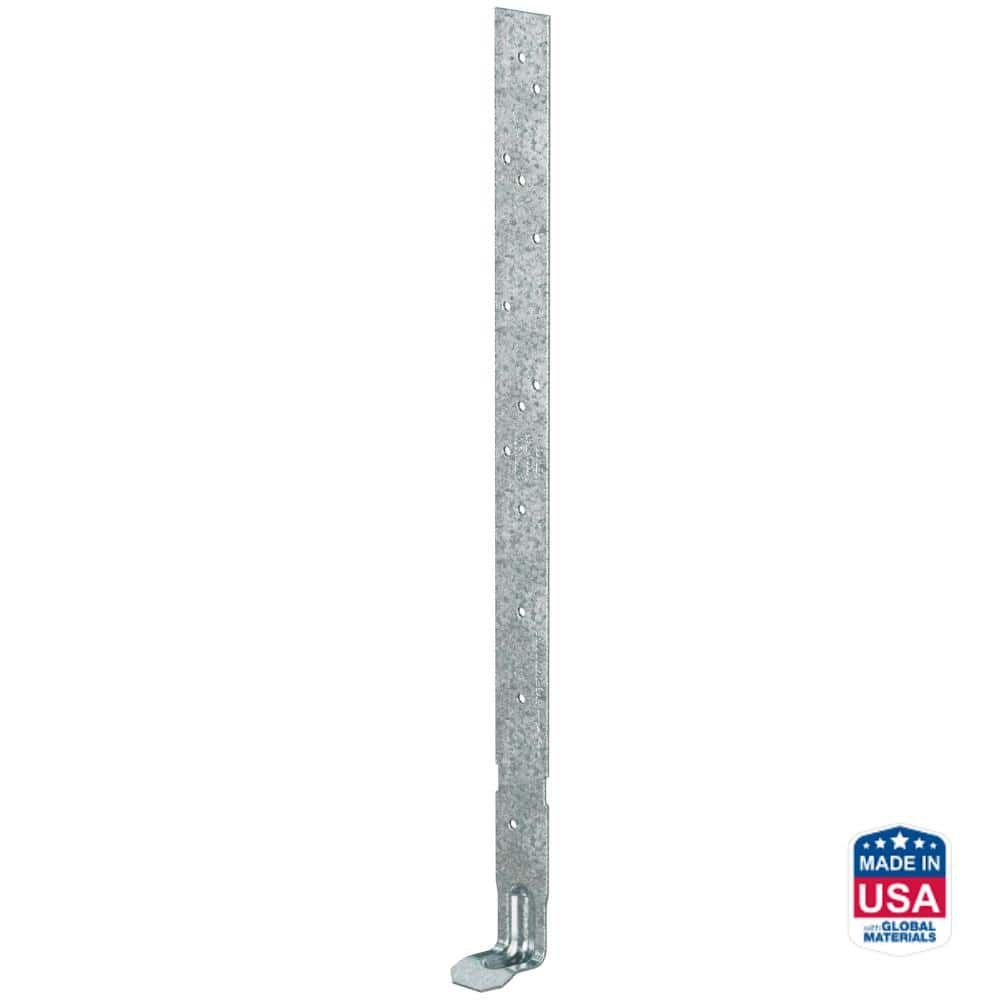

The Simpson Strong-Tie HETA16 is a heavy-duty embedded truss anchor engineered for securely attaching roof trusses to concrete and masonry walls. It features a staggered nail pattern that enhances connection strength while minimizing the potential for wood splitting. For increased load capacity, HETA anchors may also be used in pairs on single- or multi-ply trusses. The versatile HETA16 can be installed straight or field-bent to wrap around truss or rafter members, making it adaptable to a wide range of project needs. The anchor is load rated for wind and seismic forces.
  • Staggered nail patterns
  • Load rated for wind and seismic forces

Features

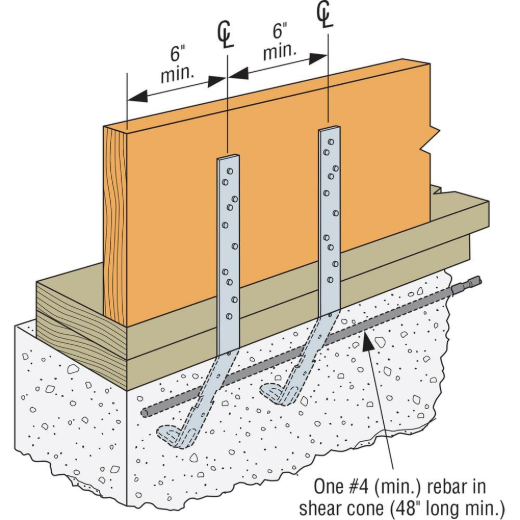

  • An indented embedment line ensures accurate embedment depth.
  • Compatible with the Simpson Strong-Tie TSS and TBP8 moisture barrier plate.

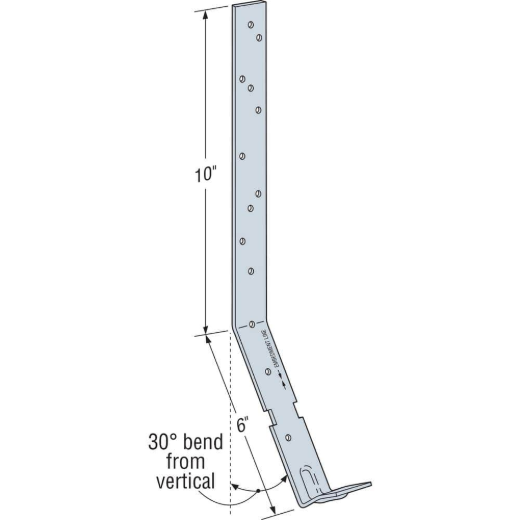

  • Can be installed straight or field-bent to suit various applications.
  • Provides a moisture barrier between concrete and truss.

Includes

  • Anchor
  • May include TSS2 truss seat snap-in (model dependent)
Products specifications
Length 12 inch
Embedment 4 inch
Material 16-gauge steel
Finish Galvanized (G90)
For concrete beam 6 inch min.
For grouted block 8 inch nominal
*
*
*
