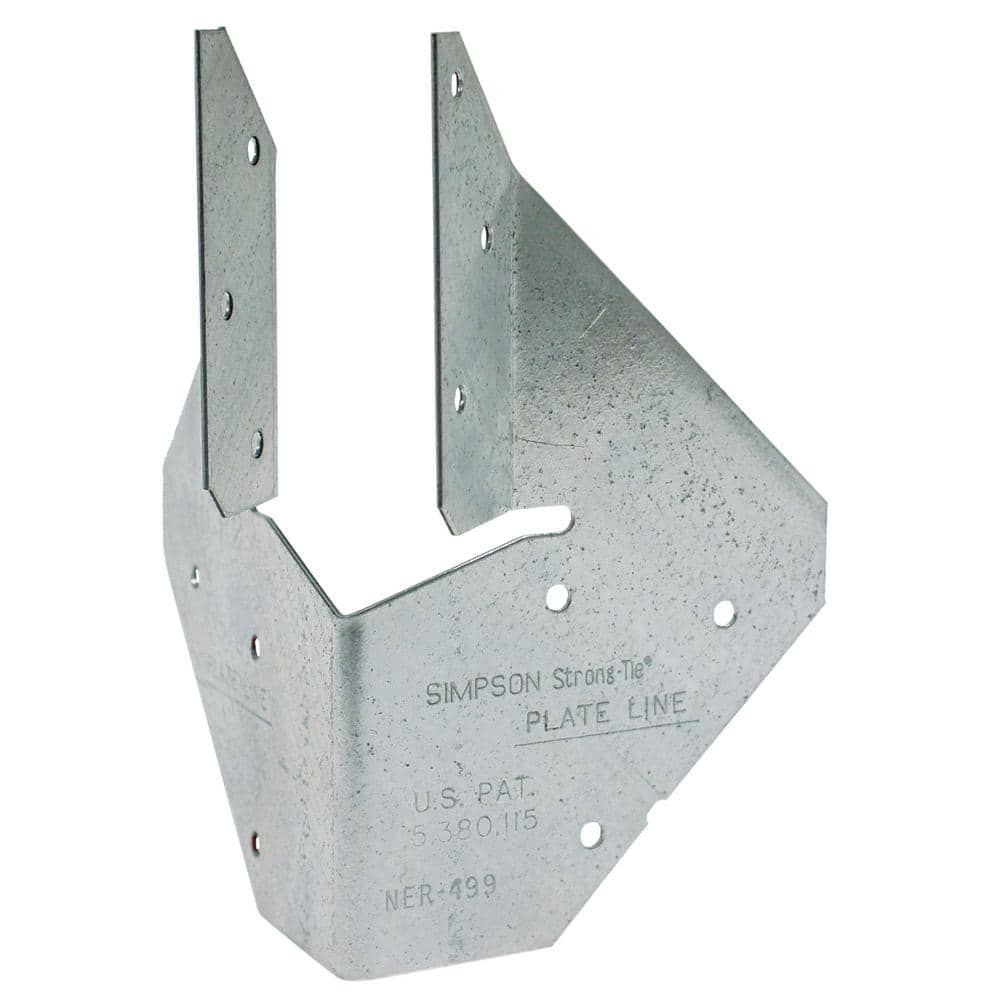

Simpson 2X Hip Corner Plate

Mfr.: Simpson Strong-Tie
Item #: I093055
Mfr. #: HCP2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.27
i h h

Description

The Simpson Strong-Tie HCP2 Hip Corner Plate is engineered to provide a secure and durable connection for wood construction. It is specifically designed to connect a rafter or joist to double top plates at a 45 angle, ensuring structural integrity in hip roof applications. This plate is suitable for use with solid sawn lumber and is easy to install with the recommended fasteners.
  • 18-gauge galvanized steel construction
  • Designed for 2x member size

Features

  • Galvanized (G90) finish for enhanced corrosion resistance.

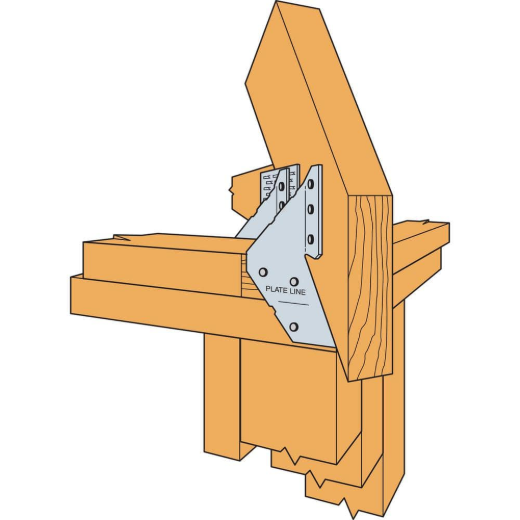

  • Connects rafter or joist to double top plates at a 45 angle.
  • Birdsmouth not required for table uplift loads but may be required for download.
  • Easy installation with specified fasteners.

Includes

  • 1x Hip Corner Plate
Products specifications
member size 2X
gauge 18
finish G90 Galvanized
material Steel
*
*
*
