Simpson 2X Hip Corner Plate Zmax

Mfr.: Simpson Strong-Tie
Item #: I093056
Mfr. #: HCP2Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $8.43
i h h

Description

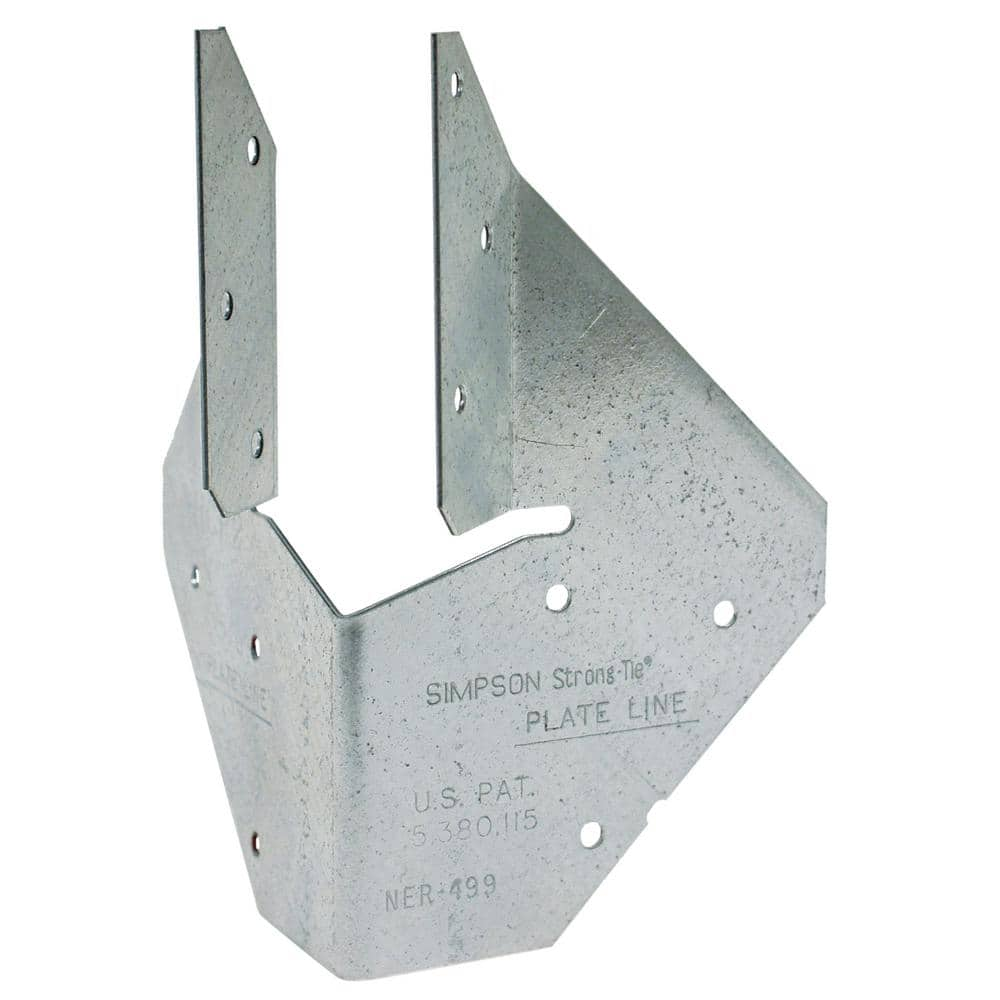

The Simpson Strong-Tie HCP2Z is a 2X Hip Corner Plate designed to provide robust support for structural connections. It efficiently connects a rafter or joist to double top plates at a precise 45 angle, eliminating the need for a birdsmouth cut in many uplift load scenarios. The ZMAX coating ensures excellent corrosion resistance, making it suitable for various construction environments. This plate is engineered for straightforward installation, offering a reliable solution for securing hip rafters and joists.
  • ZMAX finish for corrosion resistance

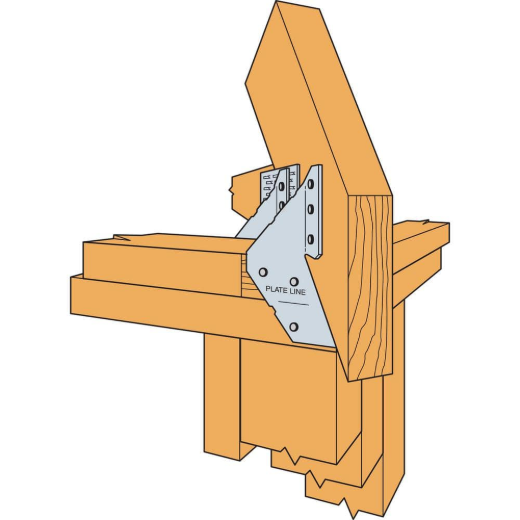

  • Connects rafter or joist to double top plates
  • Designed for 45 angle connections
  • No birdsmouth required for table uplift loads

Features

  • 18 gauge steel construction for durability.
  • Allows for rafter to be sloped up to 45.
  • Can achieve twice the allowable load when installed on the inside and outside of the wall with a flat bottom chord truss.

Includes

  • 1 x HCP2Z Hip Corner Plate

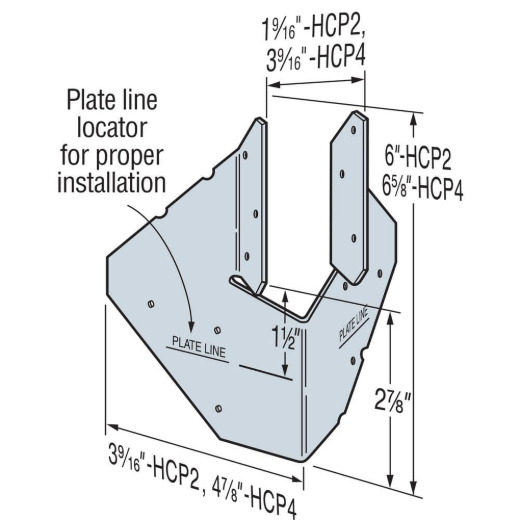

Products specifications
member size 2x
gauge 18
height 2
coating ZMAX
model no HCP2Z
finish ZMAX
*
*
*
