Simpson 4 Piece Kit W/Fasteners

Mfr.: Simpson Strong-Tie
Item #: I092665
Mfr. #: DTT1Z-KT
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $71.72
i h h

Description

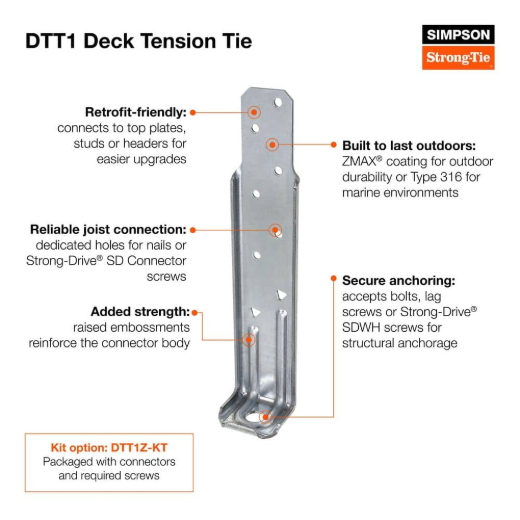

The Simpson Strong-Tie DTT1Z-KT is a deck tension tie kit designed to meet and exceed code requirements for deck construction, ensuring a safe and cost-effective connection. This versatile kit is also load-rated as a holdown for light-duty shearwalls and braced-wall panel applications. It provides a less invasive approach for attaching a new deck to a home or retrofitting an existing one, eliminating the need to access interior floor joists. The ZMAX coating offers excellent corrosion resistance, making it suitable for exterior and treated-wood applications.
  • Meets 2015, 2018, and 2021 IRC provisions for a 750 lb. lateral load connection.

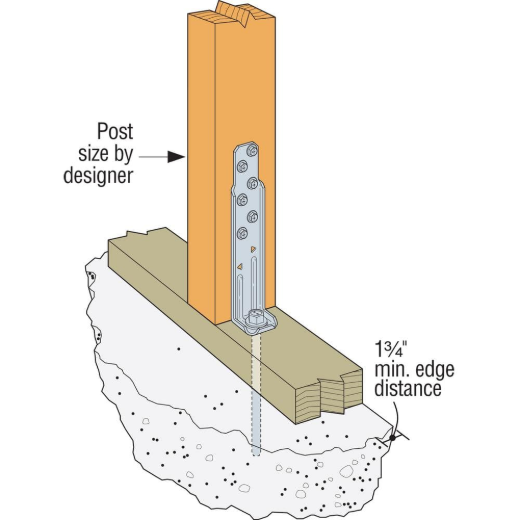

  • Load-rated as a holdown for light-duty shearwalls and braced-wall panel applications.

Features

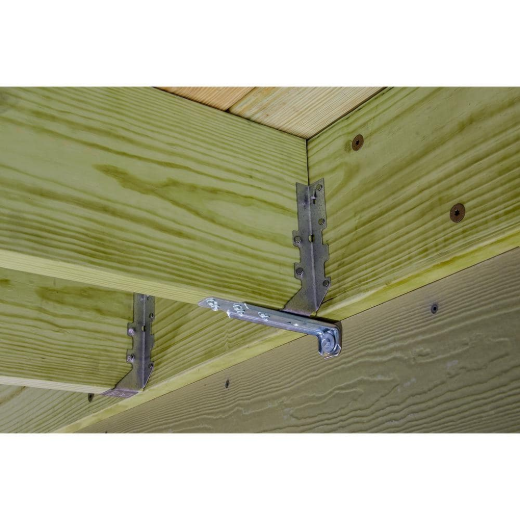

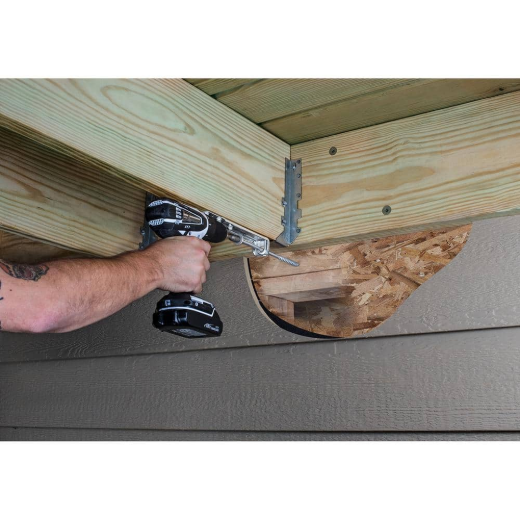

  • Non-invasive installation, eliminating the need to access interior floor joists.
  • ZMAX galvanization for superior corrosion resistance in exterior applications.
  • Can be installed vertically or horizontally.
  • Ties guardrail posts into deck framing for increased safety.

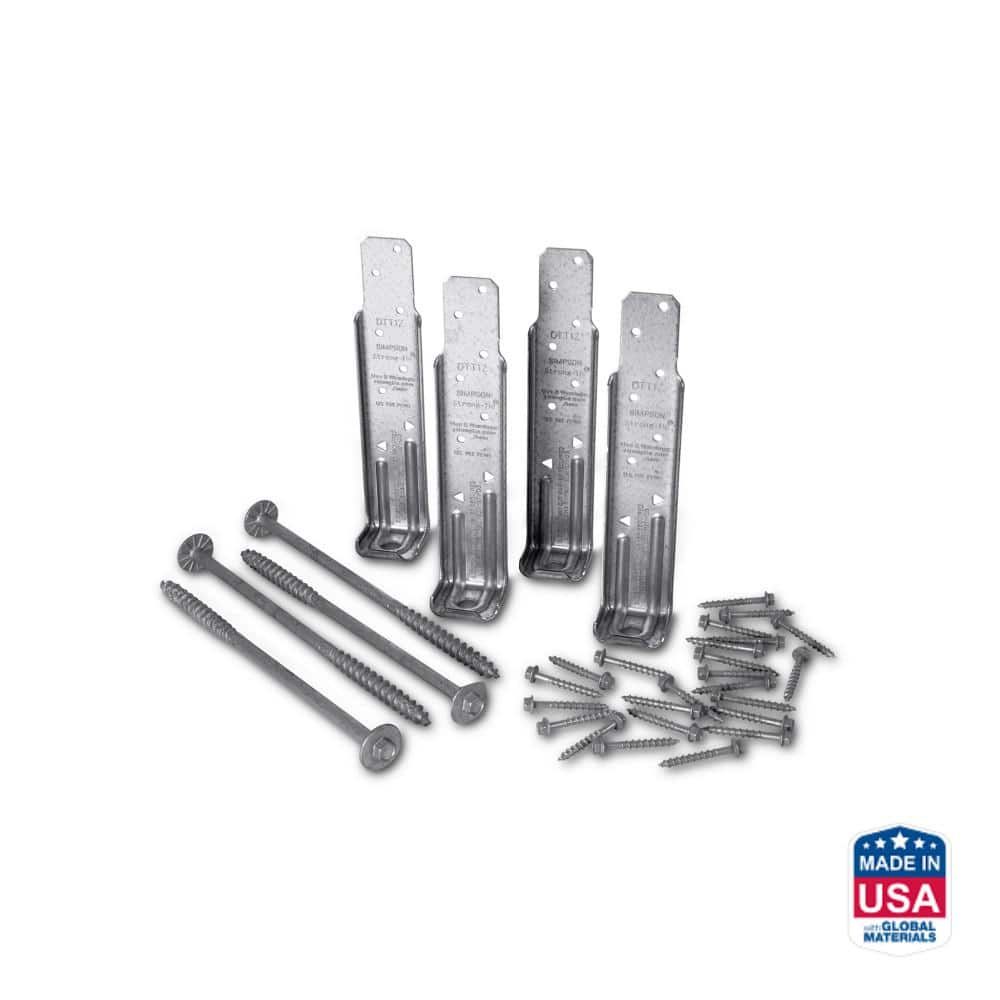

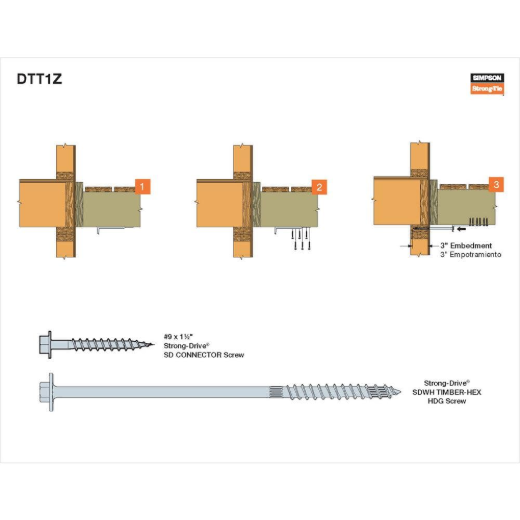

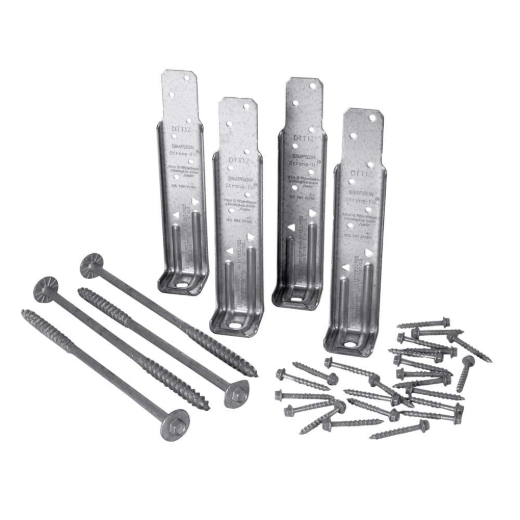

Includes

  • (4) DTT1Z connectors
  • (4) Strong-Drive SDWH Timber-Hex HDG screws (SDWH27800G)
  • (26) #9 x 1 1/2 inch Strong-Drive SD Connector screws
Products specifications
Finish ZMAX
Material Carbon Steel

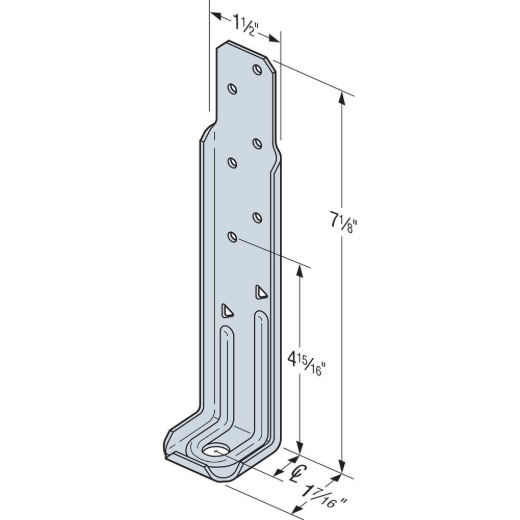

Gauge 14 Gauge
Base width 3/4 inch
Height 7-1/8 inch
Width 1-1/2 inch
Fasteners Included Yes
*
*
*
