Simpson Adjustable Stair-Stringer Connector Zmax

Mfr.: Simpson Strong-Tie
Item #: I093234
Mfr. #: LSCZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.09
i h h

Description

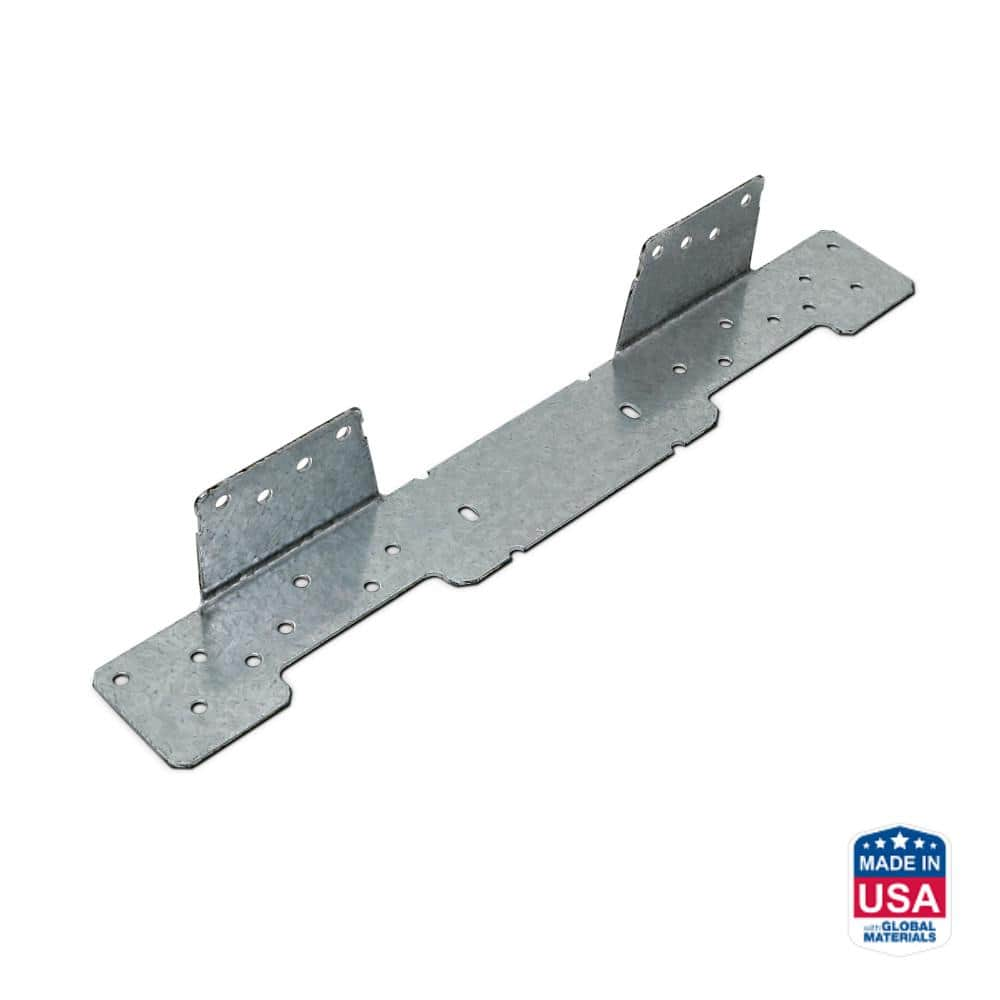

The Simpson Strong-Tie LSCZ Adjustable Stair-Stringer Connector provides a strong, concealed, and versatile connection between stair stringers and carrying headers or rim joists, effectively replacing costly framing and toe-nailing. Its field-slopeable design accommodates all common stair stringer pitches and is suitable for both solid and notched stringers. The ZMAX coating offers enhanced corrosion protection, making it suitable for interior and some exterior applications. This connector is interchangeable for left or right applications, simplifying installation and ensuring structural integrity.
  • Replaces additional framing and toe-nailing
  • Field-slopeable for common stair pitches
  • ZMAX coating for corrosion resistance

Features

  • May be installed flush with the top of the carrying member or lower on the face, suitable for 2x10 or 2x12 header/rim joists.
  • Interchangeable for left or right applications.
  • Made from 18-gauge steel.

Includes

  • LSCZ Connector
Products specifications
material 18 ga Steel
finish ZMAX Coated
coating ZMAX
application Interior and Exterior
gauge 18-gauge
length 4 inch
width 1.55 inch
height 4.31 inch
*
*
*
