Simpson Concealed Joist Tie W/Long Pins - Zmax

Mfr.: Simpson Strong-Tie
Item #: I092455
Mfr. #: CJT4ZL
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $81.86
i h h

Description

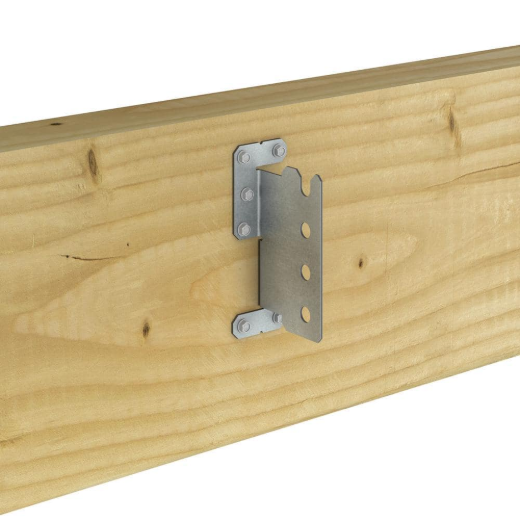

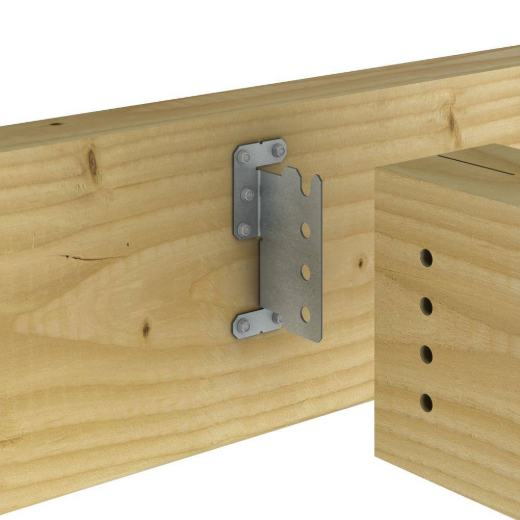

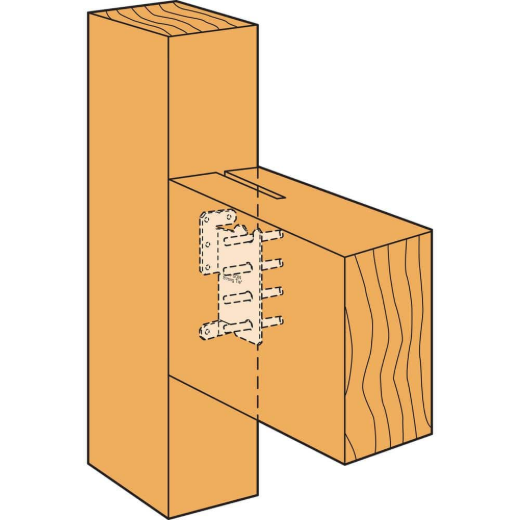

Elevate your construction projects with the Simpson CJT4ZL CJTZ Concealed Joist Tie. This innovative connector provides a strong and concealed connection between a header/post and a beam, enhancing both the aesthetics and structural integrity of your builds. Designed for versatility, it offers multiple installation methods including no routing, routed header/post, or routed beam, ensuring a fit for various applications. Its ZMAX coating provides superior corrosion resistance, making it a durable choice for demanding environments.

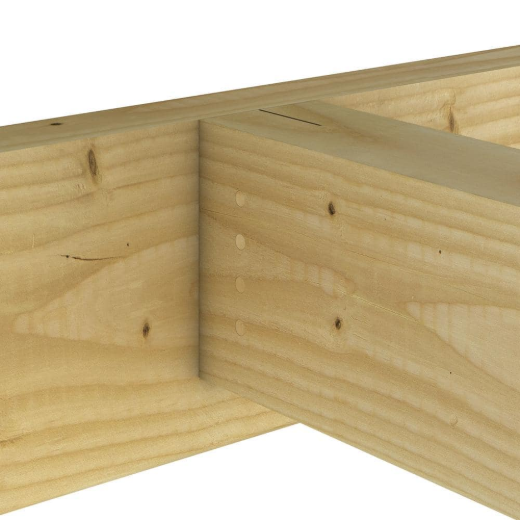

  • Concealed connection for improved aesthetics
  • ZMAX coating for enhanced corrosion resistance

Features

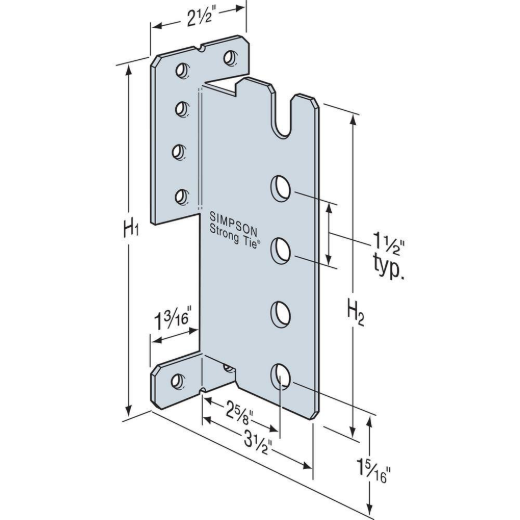

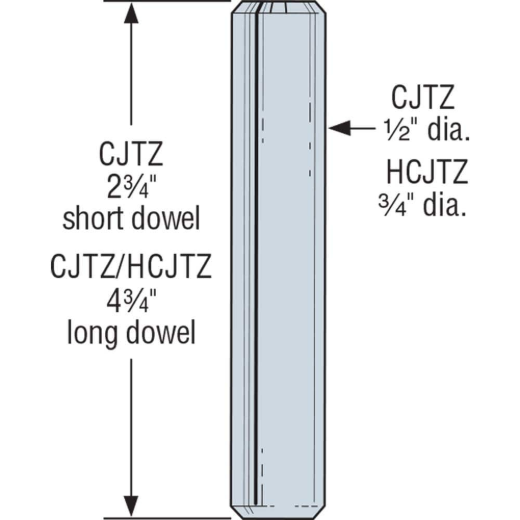

  • Long pin version with 4 3/4 inch pins
  • 12-gauge steel construction
  • Accommodates slopes up to 45
  • Can be installed with or without routing

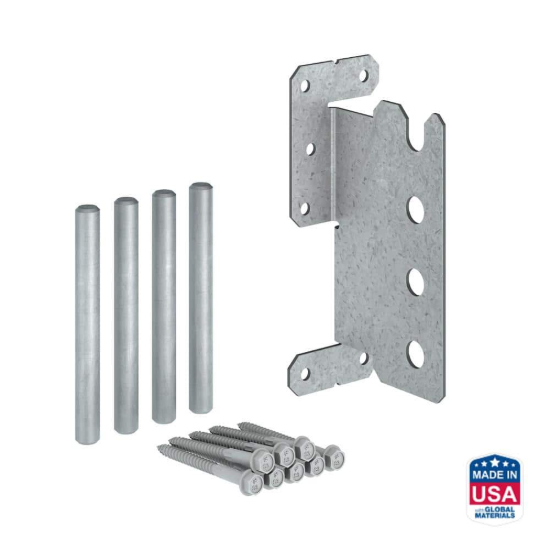

Includes

  • Steel pins
  • Strong-Drive SDS Heavy Duty Connector Screws
Products specifications
material 12 gauge
finish ZMAX
pin_length 4 3/4 inch
for_treated_lumber yes
*
*
*
