Simpson Concealed Joist Tie W/Long Pins - Zmax

Mfr.: Simpson Strong-Tie
Item #: I092457
Mfr. #: CJT5ZL
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $88.74
i h h

Description

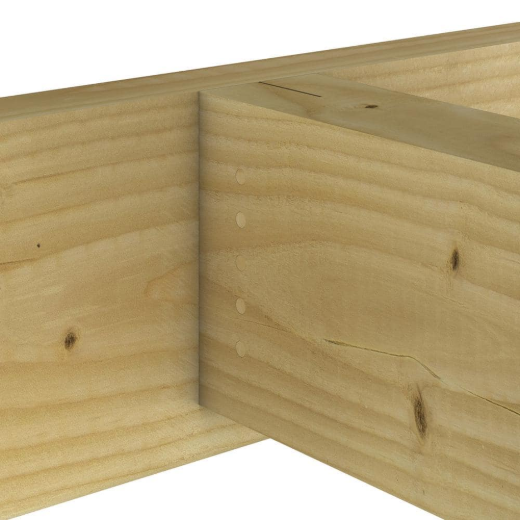

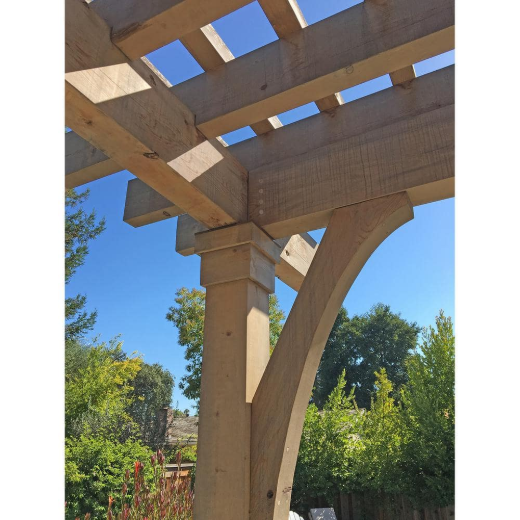

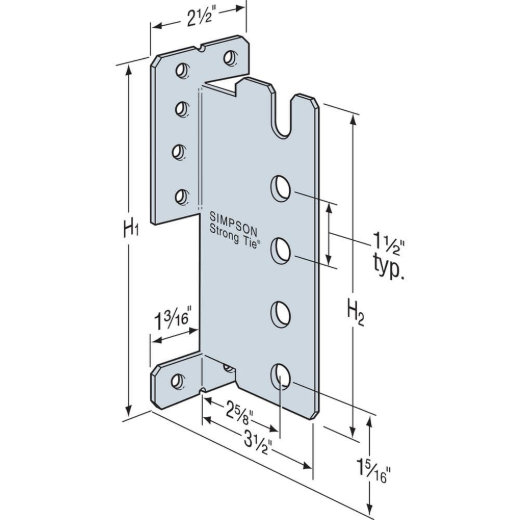

The Simpson Strong-Tie CJT5ZL Concealed Joist Tie is engineered to create robust, hidden connections between headers/posts and beams. Its ZMAX coating provides superior corrosion resistance, making it suitable for various applications. This tie is designed for easy installation with included long pins and can support members with slopes up to 45 degrees. It is an integral part of a concealed connector system that ensures structural integrity and a clean aesthetic.
  • ZMAX coating for enhanced corrosion resistance
  • Includes all necessary steel pins and screws
  • Supports sloped members up to 45

Features

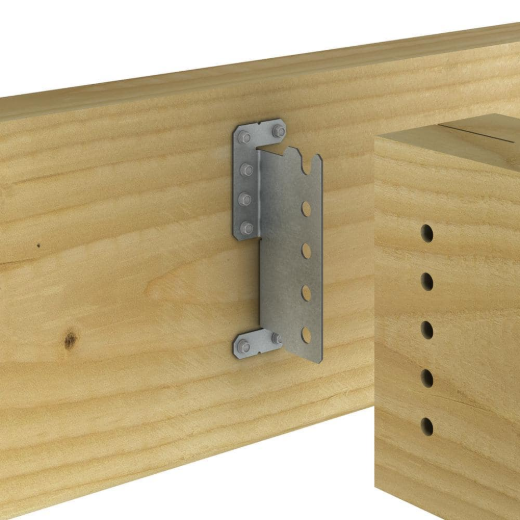

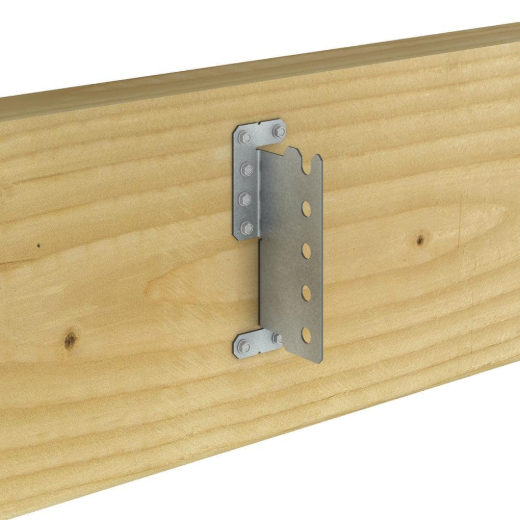

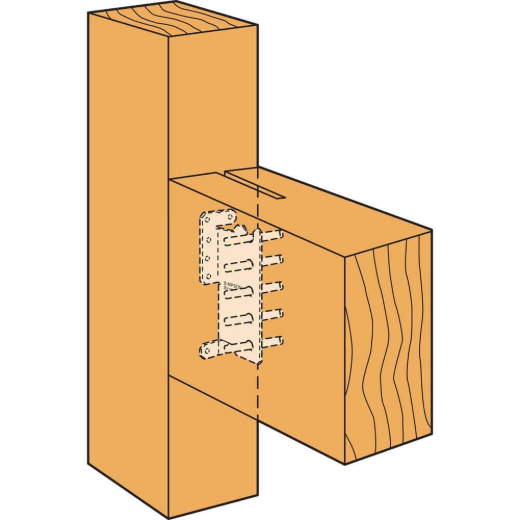

  • Can be installed in three ways: with no routing, routed header/post, or routed beam.
  • Suitable for glulam, composite lumber (PSL, LSL and LVL), or well-dried lumber.

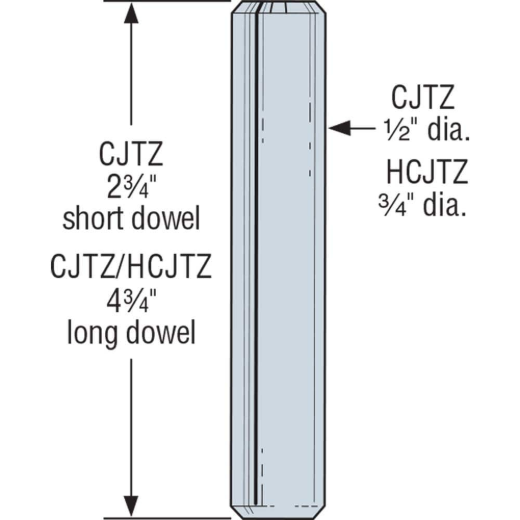

  • Long dowel (1/2-in x 4-3/4-in) for use with 5-1/8-in glulam beam, 6x sawn lumber or greater widths.

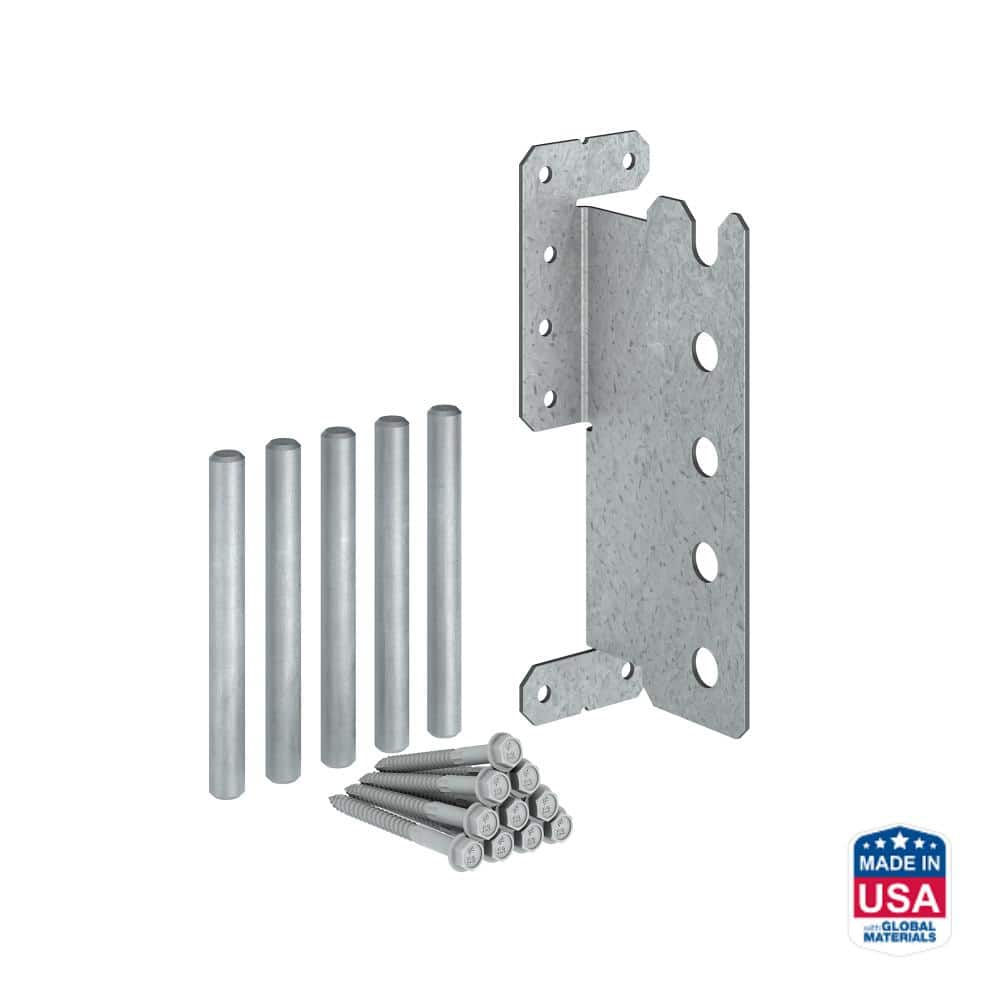

Includes

  • (1) Concealed Joist Tie
  • (1) Set of Long Pins
  • (1) Set of Strong-Drive SDS Heavy Duty Connector Screws
Products specifications
material 12 gauge steel
finish ZMAX coating
weight 3.1 lb
for treated lumber Yes
*
*
*
