Simpson Concealed Joist Tie W/Short Pin - Zmax

Mfr.: Simpson Strong-Tie
Item #: I092458
Mfr. #: CJT5ZS
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $88.74
i h h

Description

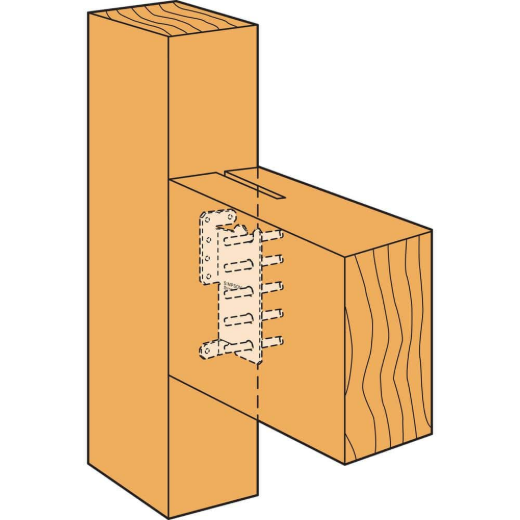

The Simpson Strong-Tie CJT5ZS Concealed Joist Tie is engineered for robust, hidden connections between headers/posts and beams. Its ZMAX coating offers superior corrosion resistance, making it ideal for exterior applications and treated lumber. This tie provides versatile installation options, including no-routing, routed header/post, or routed beam, ensuring a clean aesthetic and structural integrity. It is designed to support sloped members up to 45 degrees, offering flexibility for various project needs.
  • ZMAX coating for enhanced corrosion resistance
  • Supports sloped members up to 45 degrees

Features

  • Made from 12-gauge steel for durable construction.
  • Part of the CJTZ concealed connector system.

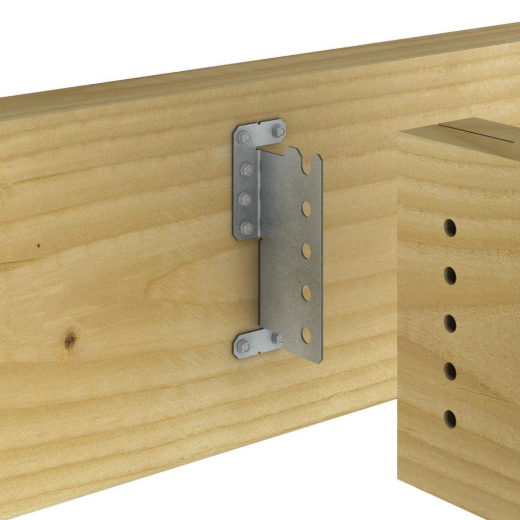

  • Can be installed with or without routing for flexibility.

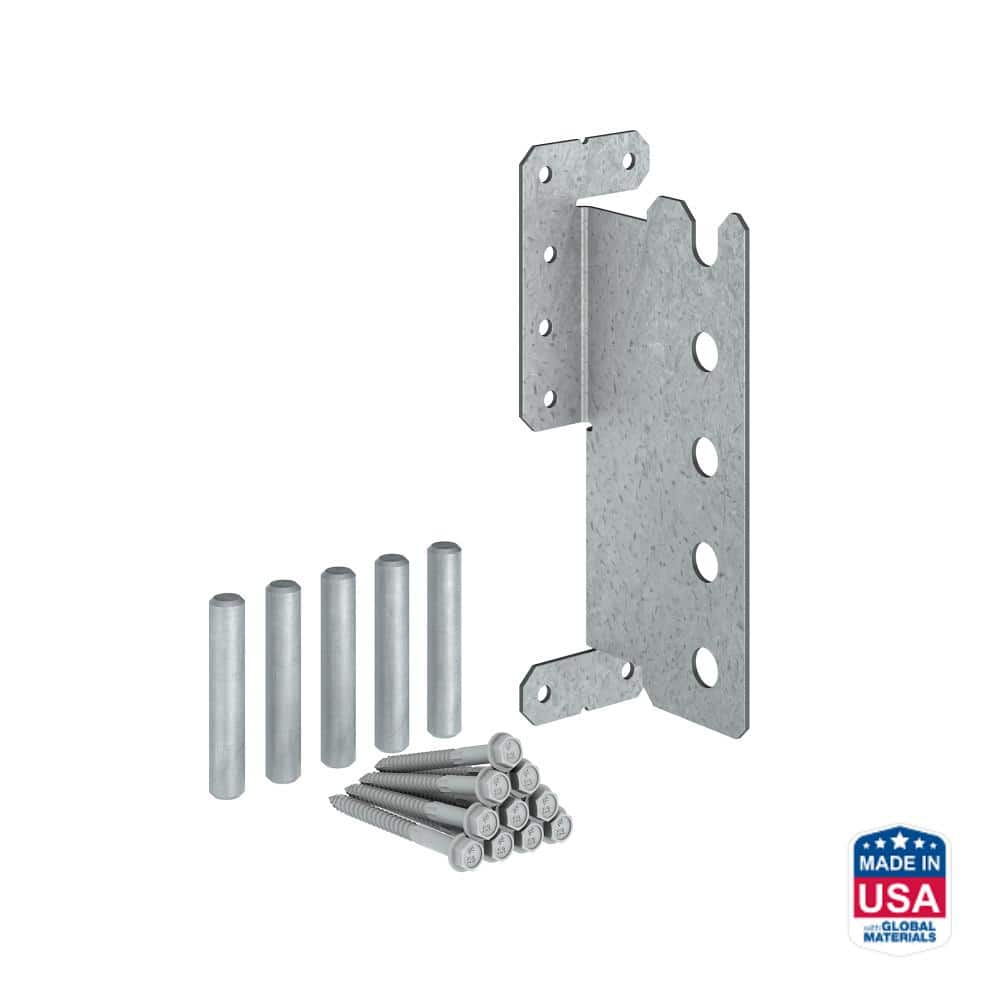

Includes

  • 1 Concealed Joist Tie
  • 1 Set of Steel Pins
  • 1 Set of Strong-Drive SDS Heavy Duty Connector Screws
Products specifications
material 12 gauge steel
finish ZMAX coating

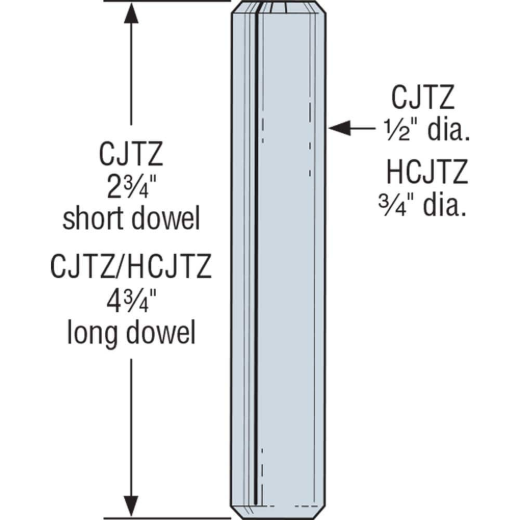

pin length 2-3/4 inch
for treated lumber Yes
*
*
*
