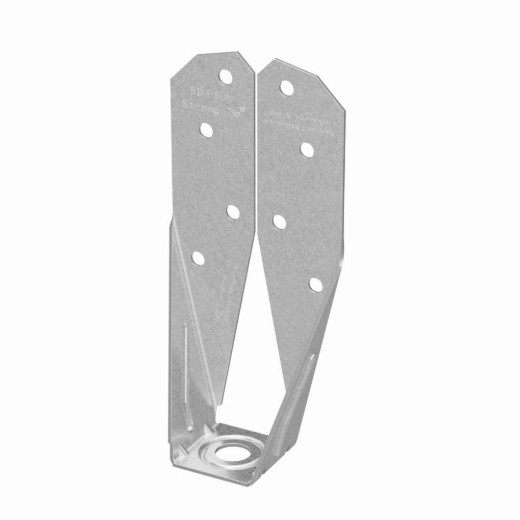

Simpson Deck Tension Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I092666
Mfr. #: DTT2Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $19.36
i h h

Description

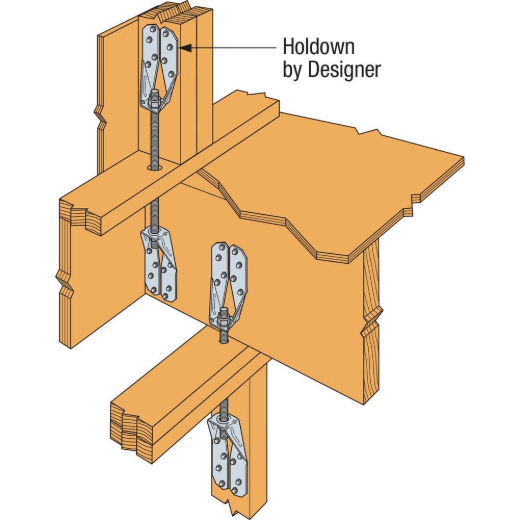

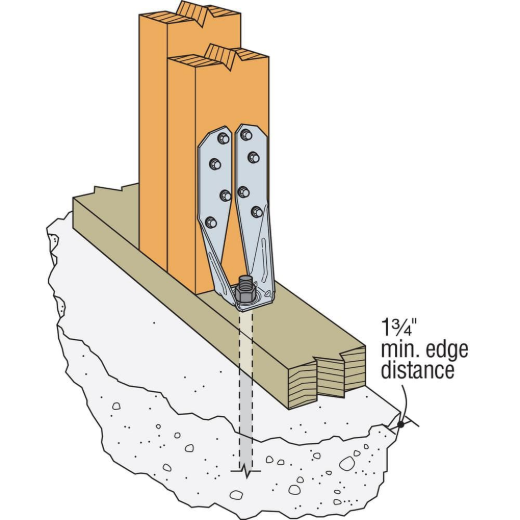

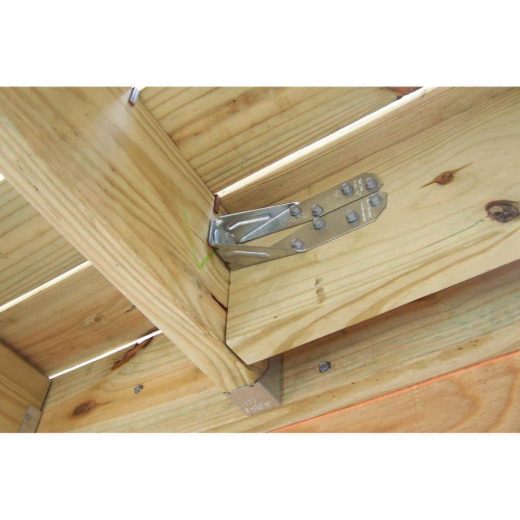

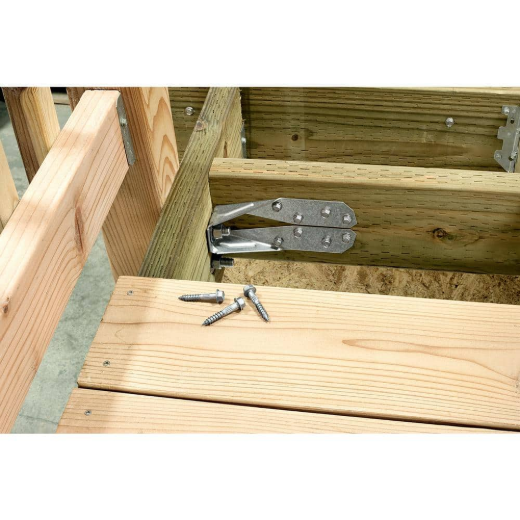

The Simpson Strong-Tie DTT2Z Deck Tension Tie offers a safe and cost-effective solution for securing deck railing posts to deck framing, providing a stronger connection than traditional methods. It ties guardrail posts directly into deck joists, enhancing stability and helping to prevent common deck failures. This versatile connector is also load-rated for light-duty shearwall and braced-wall panel applications, making it a robust choice for various construction needs.
  • ZMAX galvanization for enhanced corrosion resistance
  • Stronger and safer than nails, lag screws, or bolts

Features

  • Complies with IRC and IBC code requirements for guardrail post connections

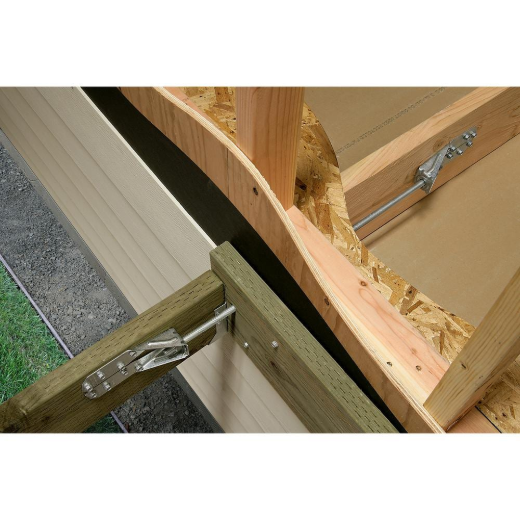

  • Can be used for lateral load connections between the deck and house
  • Installs easily to single or double 2x joists or studs

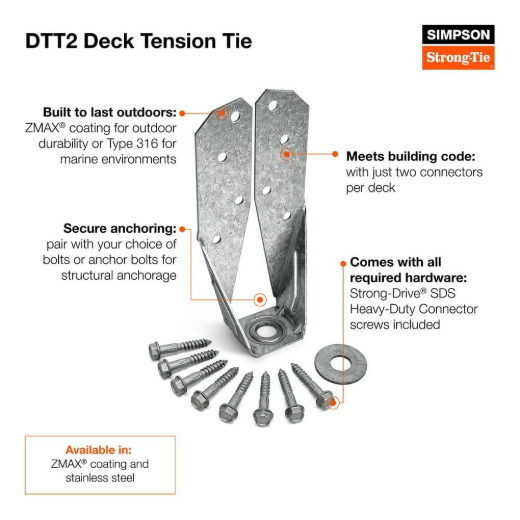

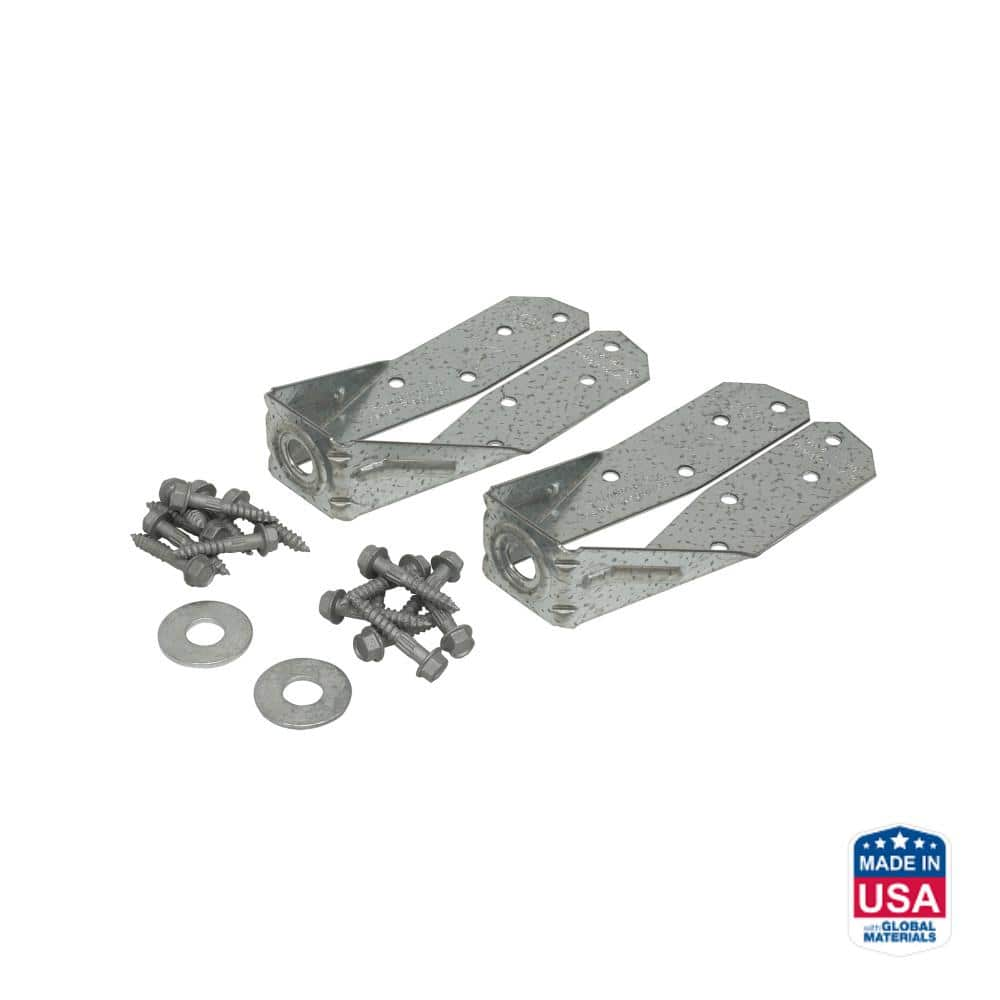

Includes

  • 8 x 1/4 inch x 1-1/2 inch Strong-Drive SDS Heavy-Duty Connector screws
Products specifications
Manufacturer Simpson Strong-Tie
Product Code DTT2Z
Material Carbon Steel
Finish ZMAX
Gauge 14

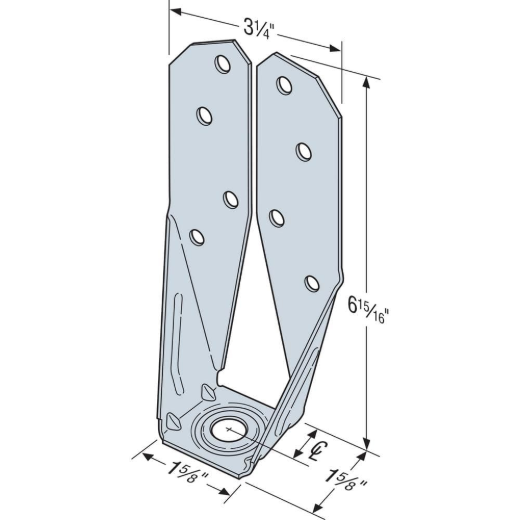

Base width 1-5/8 inch
Width 3-1/4 inch
Height 6-15/16 inch
Thread size 1.5 in
Hole diameter 3/16 inch
Member Size Single or double 2x
Fasteners required ALL FASTENERS INCLUDED
*
*
*
