Simpson Deck Tension Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I092664
Mfr. #: DTT1Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5.24
i h h

Description

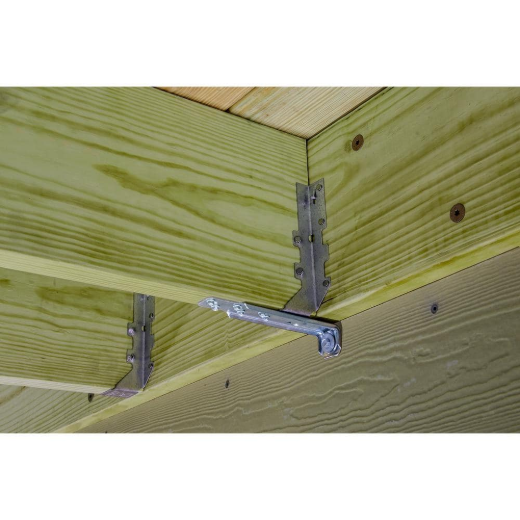

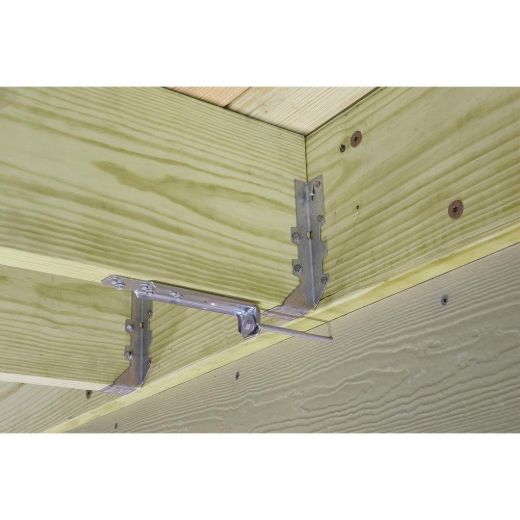

The Simpson Strong-Tie DTT1Z DECK TENSION TIE ZMAX is a safe and cost-effective connector designed to meet or exceed code requirements for deck construction. It provides a secure, code-compliant 750 lb. deck-to-house lateral load connection, ideal for new construction or retrofitting existing decks. This tie allows for a less invasive installation, connecting to the house framing without needing access to interior floor joists. Its ZMAX coating offers enhanced corrosion resistance for exterior applications.
  • ZMAX coating for corrosion resistance
  • 750 lb. lateral load connection

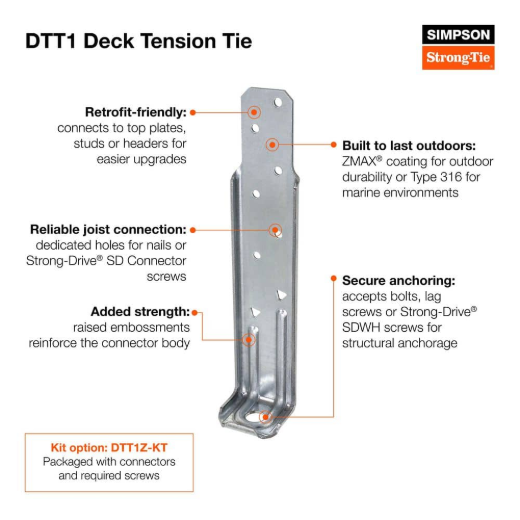

Features

  • Meets 2015 IRC provision for lateral load connections to the house.
  • Can be installed vertically or horizontally onto single 2x members.

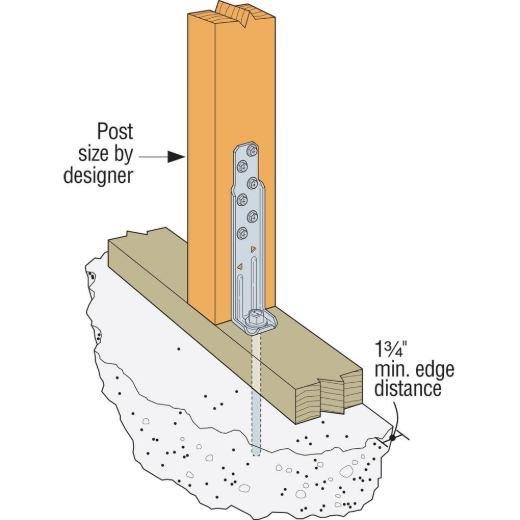

  • Load-rated as a holdown for light-duty shearwalls and braced wall panel applications.
  • Accommodates a 3/8 inch machine bolt, anchor bolt, or lag screw (washer required).

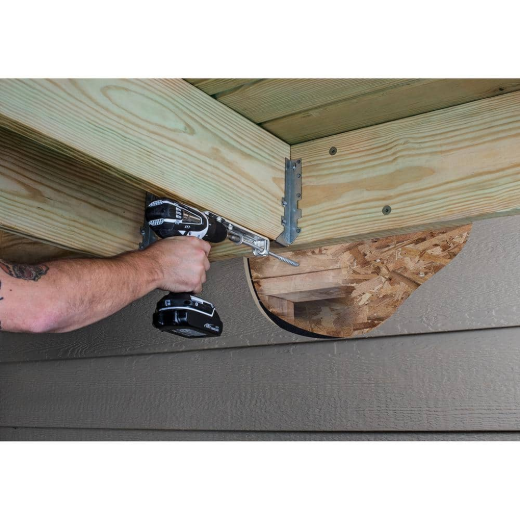

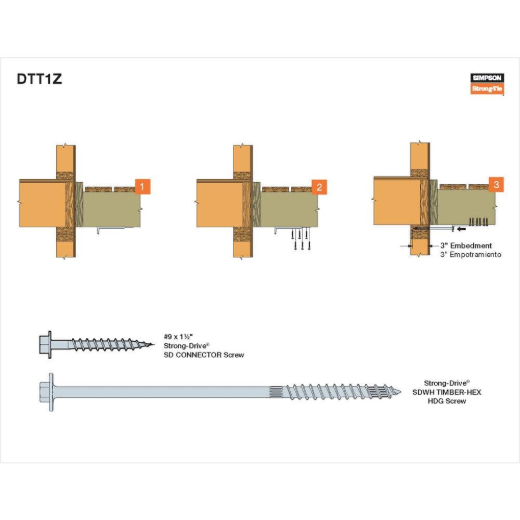

  • Can be installed with Strong-Drive SDWH Timber-Hex HDG screws with an integral washer.

Includes

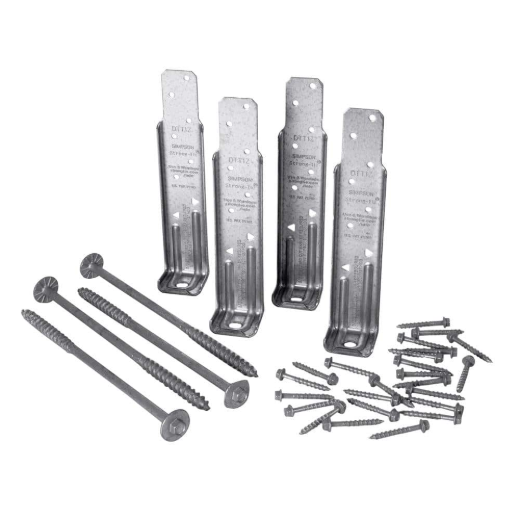

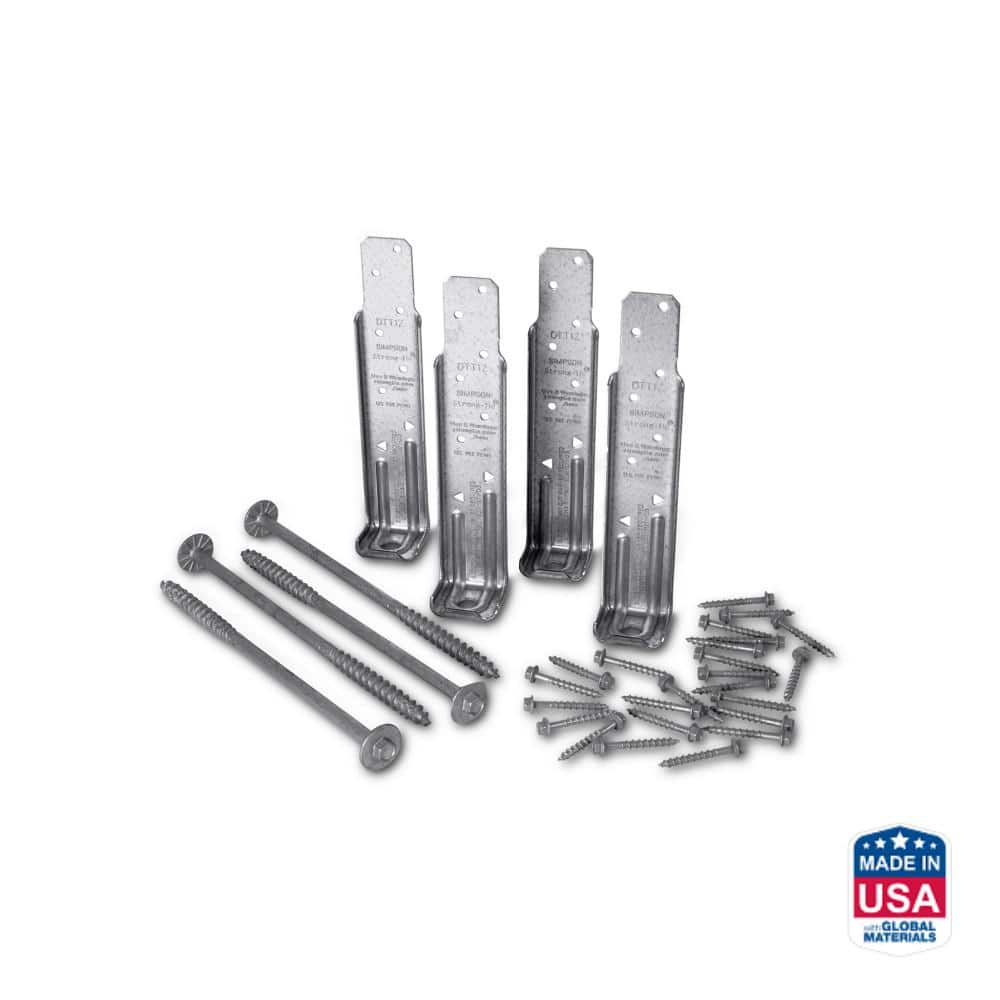

  • The DTT1Z-KT kit includes (4) DTT1Z connectors, (4) Strong-Drive SDWH Timber-Hex HDG screws, and (26) SD #9 x 1 1/2 inch screws.

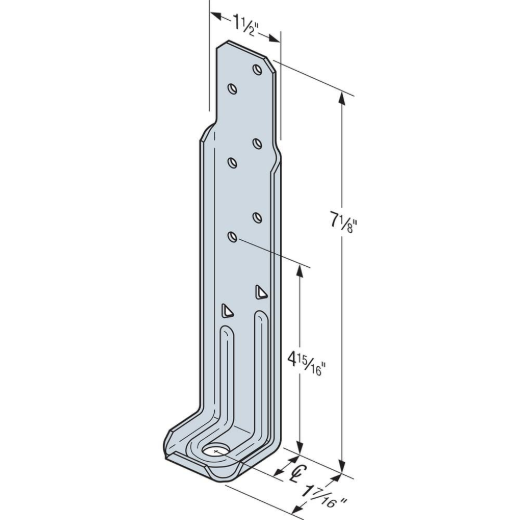

Products specifications
Manufacturer Simpson Strong-Tie
Model DTT1Z
Finish ZMAX
Material Carbon Steel
Gauge 14 Gauge
Height 7-1/8 inch
Width 1-1/2 inch
Base width 3/4 inch
Anchor Bolt Diameter 3/8 inch
Wood Fasteners (6) #9 x 1-1/2 SD
*
*
*
