Simpson Heavy Embed Truss Anchor

Mfr.: Simpson Strong-Tie
Item #: I093121
Mfr. #: HETAL20
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.90
i h h

Description

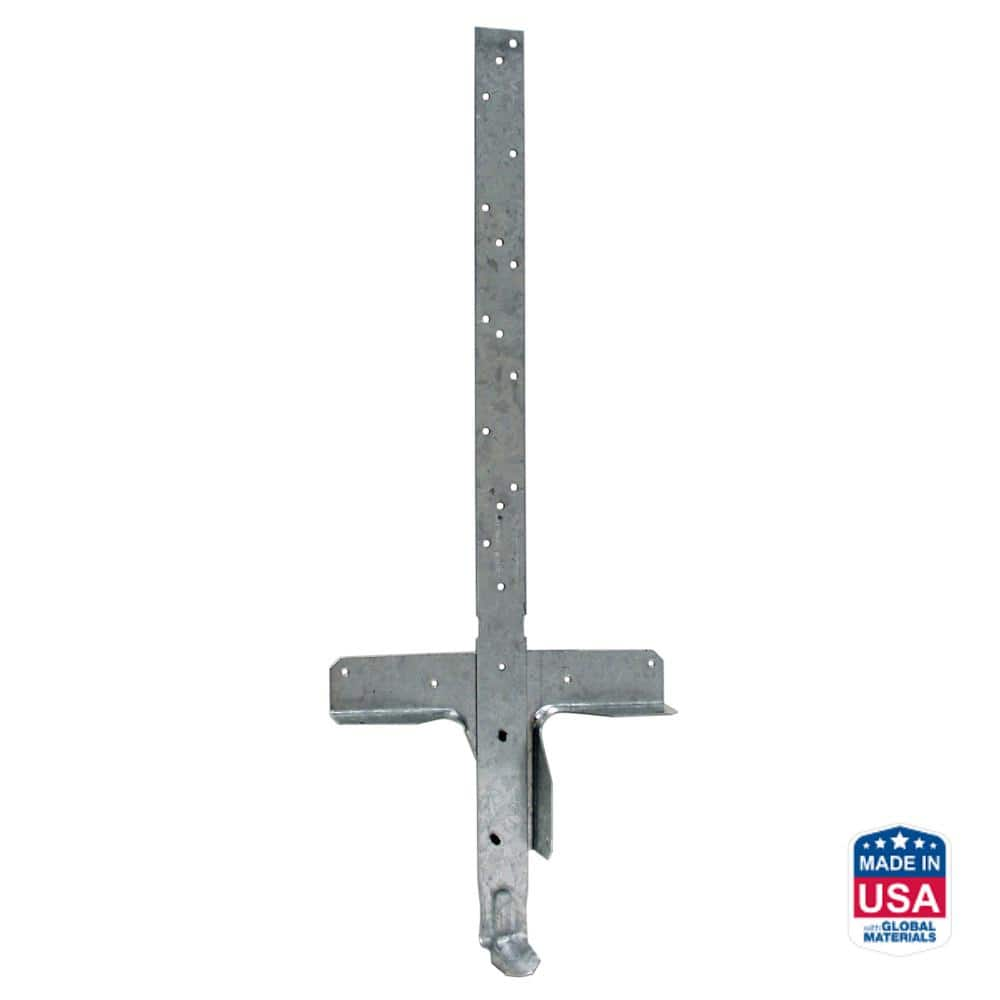

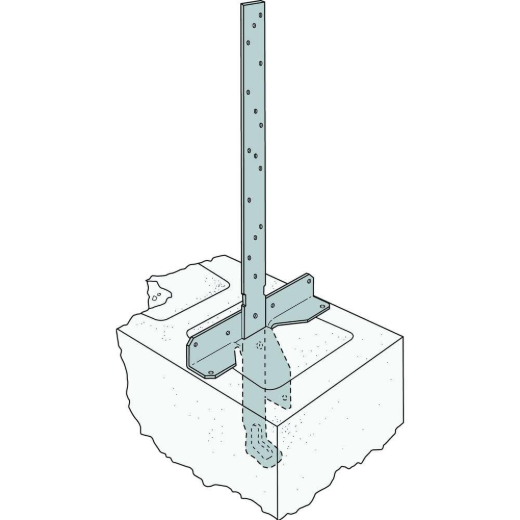

The Simpson Strong-Tie HETAL20 is a heavy-duty truss anchor engineered for securely attaching roof trusses to concrete and masonry walls, specifically designed to resist lateral loads. It features a staggered nail pattern for enhanced uplift resistance and includes a built-in moisture plate to protect against moisture above the wall. This anchor is load-rated for wind and seismic forces, providing a reliable solution for robust structural connections.
  • Engineered for lateral loads
  • Built-in moisture barrier
  • Load rated for wind and seismic forces

Features

  • Strap can be installed straight or field-bent around truss or rafter members.
  • Strap made from 16-ga steel; truss seat made from 18-ga steel.
  • Galvanized (G90 or ZMAX) for corrosion resistance.

Includes

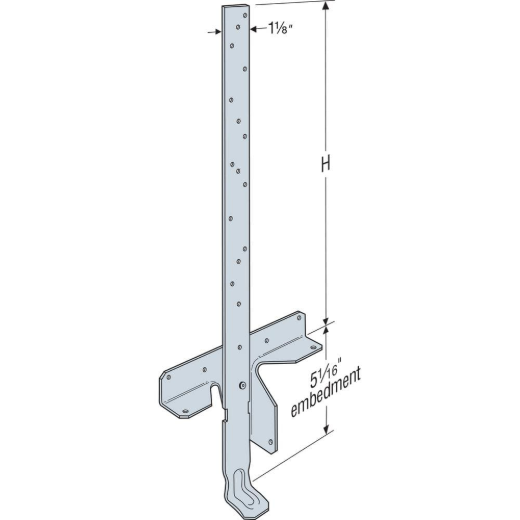

  • 5-1/16 inch embedment depth.
Products specifications
Embedment 5-1/16 inch
Strap Gauge 16-ga
Seat Gauge 18-ga
Material Steel
Coating Galvanized (G90/ZMAX)
Length 15 inch / 20 inch (varies)
*
*
*
