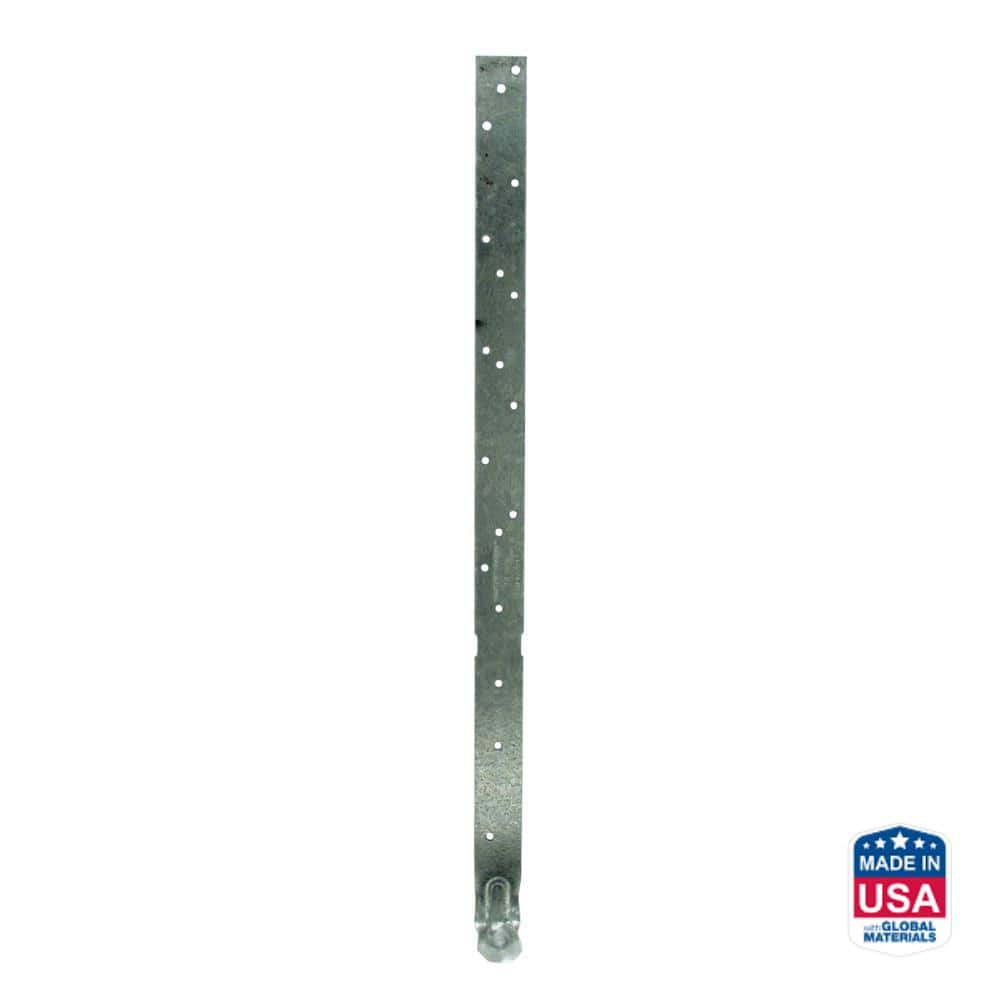

Simpson Heavy Embedded Truss Anchor

Mfr.: Simpson Strong-Tie
Item #: I093117
Mfr. #: HETA24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5.56
i h h

Description

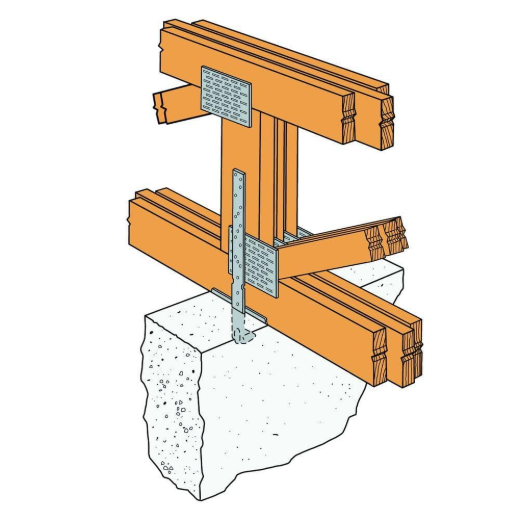

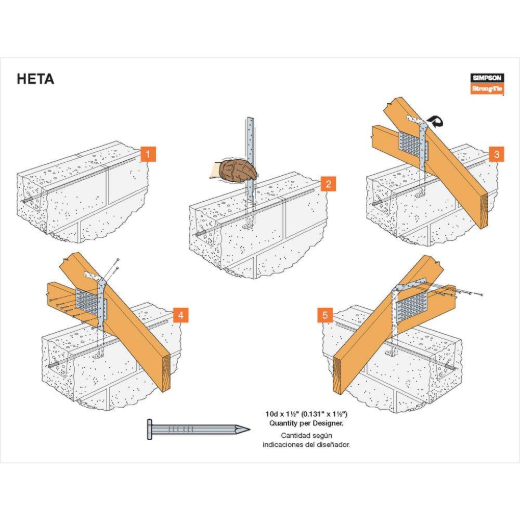

The Simpson Strong-Tie HETA24 is an engineered solution for securely attaching roof trusses to concrete and masonry walls, designed to withstand wind and seismic forces. It features a staggered nail pattern to enhance uplift resistance and can be used in pairs for single- and multi-ply trusses. The anchor offers versatility, allowing for straight installation or field-bending to accommodate various truss or rafter configurations. An indented embedment line ensures precise installation depth for reliable performance.
  • Galvanized (G90) for corrosion resistance
  • Staggered nailing pattern for superior hold

Features

  • Indented embedment line ensures accurate embedment depth.
  • Compatible with Simpson Strong-Tie TSS snap-in seat.
  • Load rated for wind and seismic forces.
  • 20-in. exposed length.

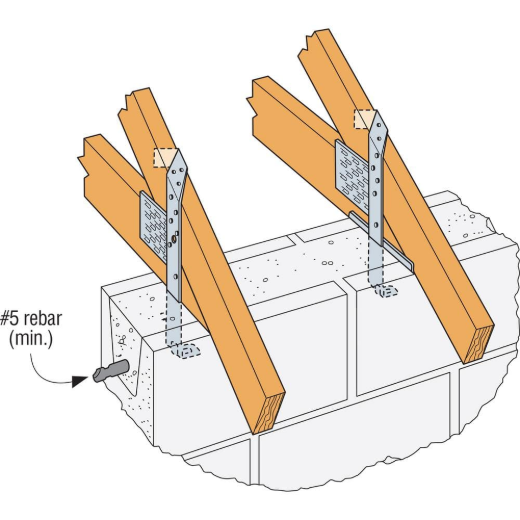

  • Embed 4 in. into a poured concrete bond beam or grouted block wall.
  • Made from 16-gauge steel.

Includes

  • 1 x HETA24 Heavy Embedded Truss Anchor
Products specifications
product_type Truss Anchor
gauge 16
finish G90 Galvanized
height 24.307 inch
width 1.125 inch
depth 1.682 inch
packaging 1
*
*
*
