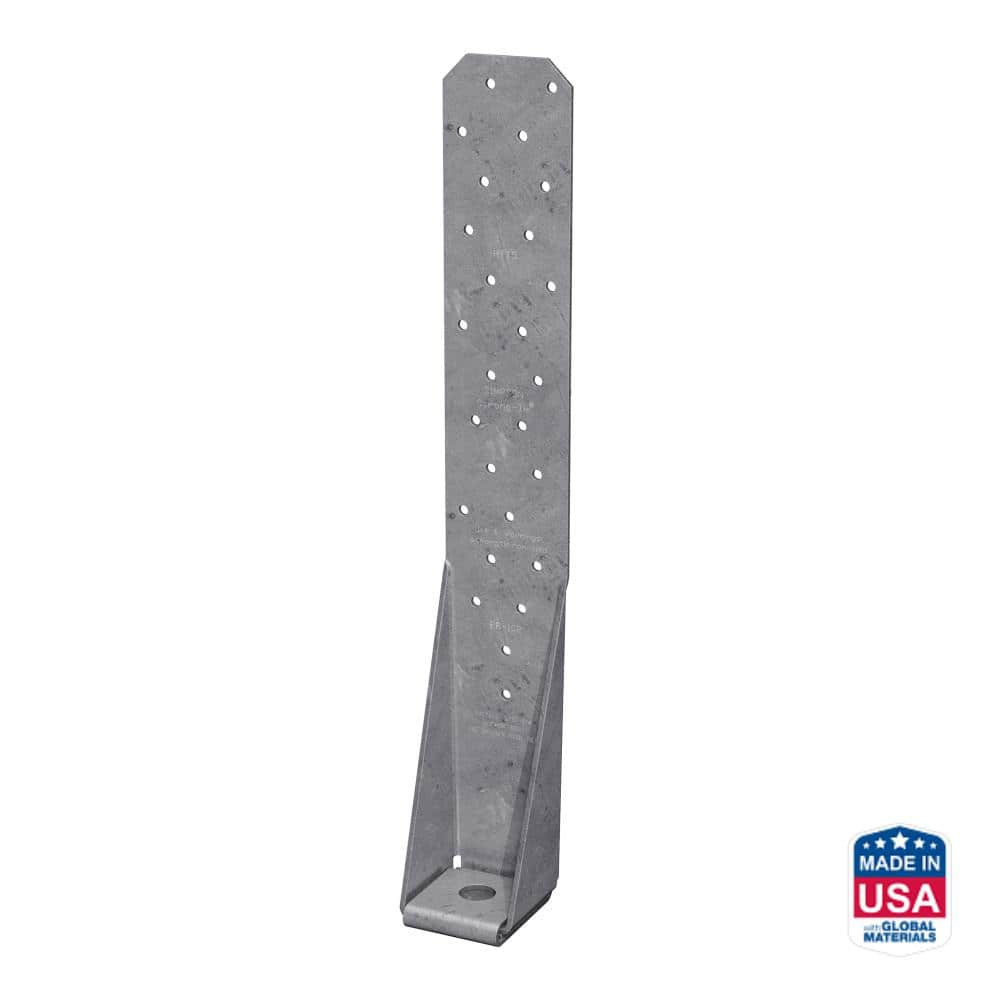

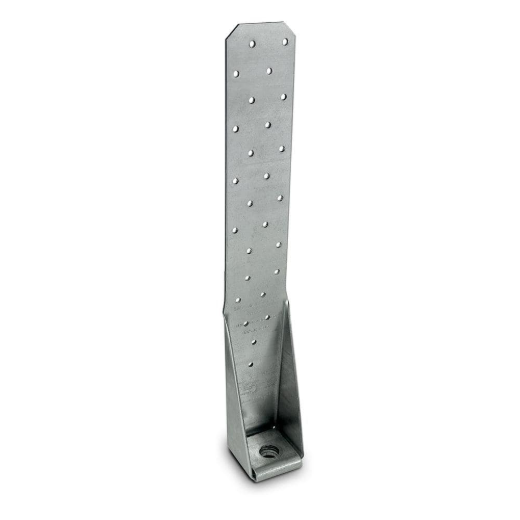

Simpson Heavy Tension Tie HTT5HDG

Mfr.: Simpson Strong-Tie
Item #: I093171
Mfr. #: HTT5HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $71.72
i h h

Description

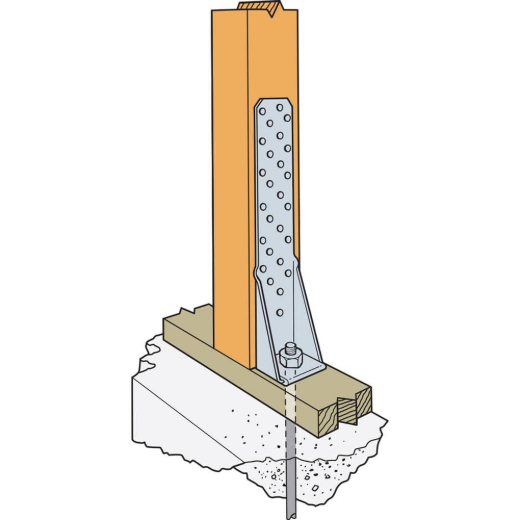

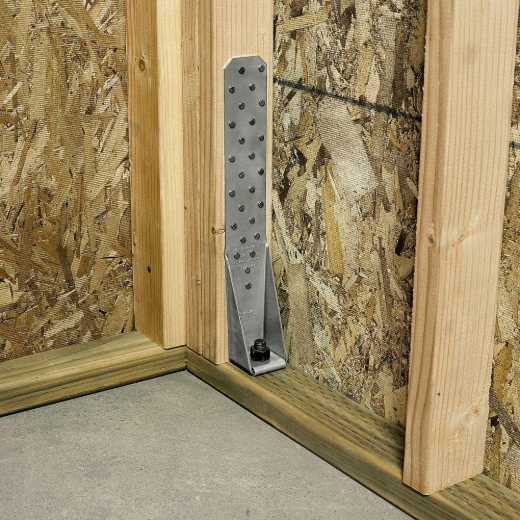

The Simpson Strong-Tie HTT5HDG Heavy Tension Tie is a robust solution for resisting high tension loads in wood-to-concrete connections, ideal for both residential and light-frame commercial buildings. It is designed to resist medium tension loads when fastened with #10 screws and provides high-strength, post-pour, concrete-to-steel connections. This single-piece formed tie features a four-ply formed seat and does not require washers, offering an optimized design for enhanced strength and reduced deflection. Its hot-dip galvanization provides extra corrosion resistance for exterior applications.
  • Hot-Dip Galvanized Finish
  • Resists Medium Tension Loads
  • No Washers Required

Features

  • High Load Capacity: Achieves allowable loads up to 7,650 lbs when installed with Strong-Drive SD Connector screws.
  • Optimized Design: Features a four-fold seat and tapered base to reduce deflection and enhance strength.

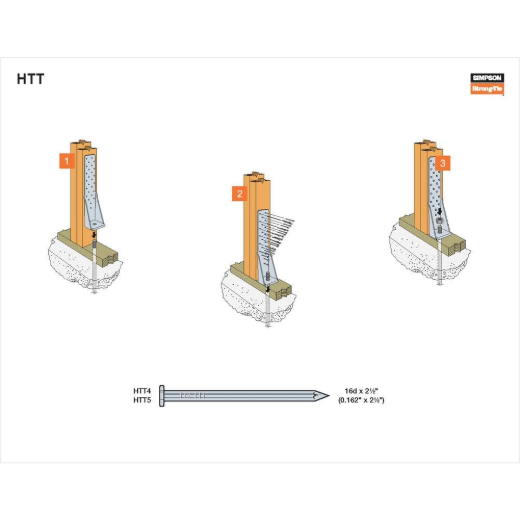

  • Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive SD Connector screws.
  • Durable Construction: Made from 11-gauge steel, providing corrosion resistance.
  • Ideal for retrofit or new construction projects.

Includes

  • One Heavy Tension Tie.

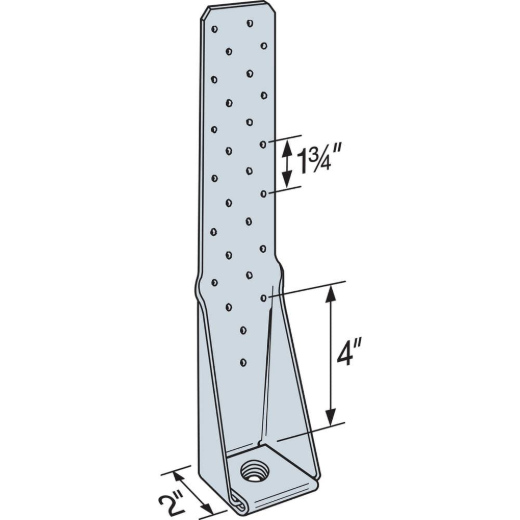

Products specifications
Finish Hot Dip Galvanized
Length 16 inch
Material Galvanized Steel
Thickness 11 Gauge
Width 2-1/2 inch
*
*
*
