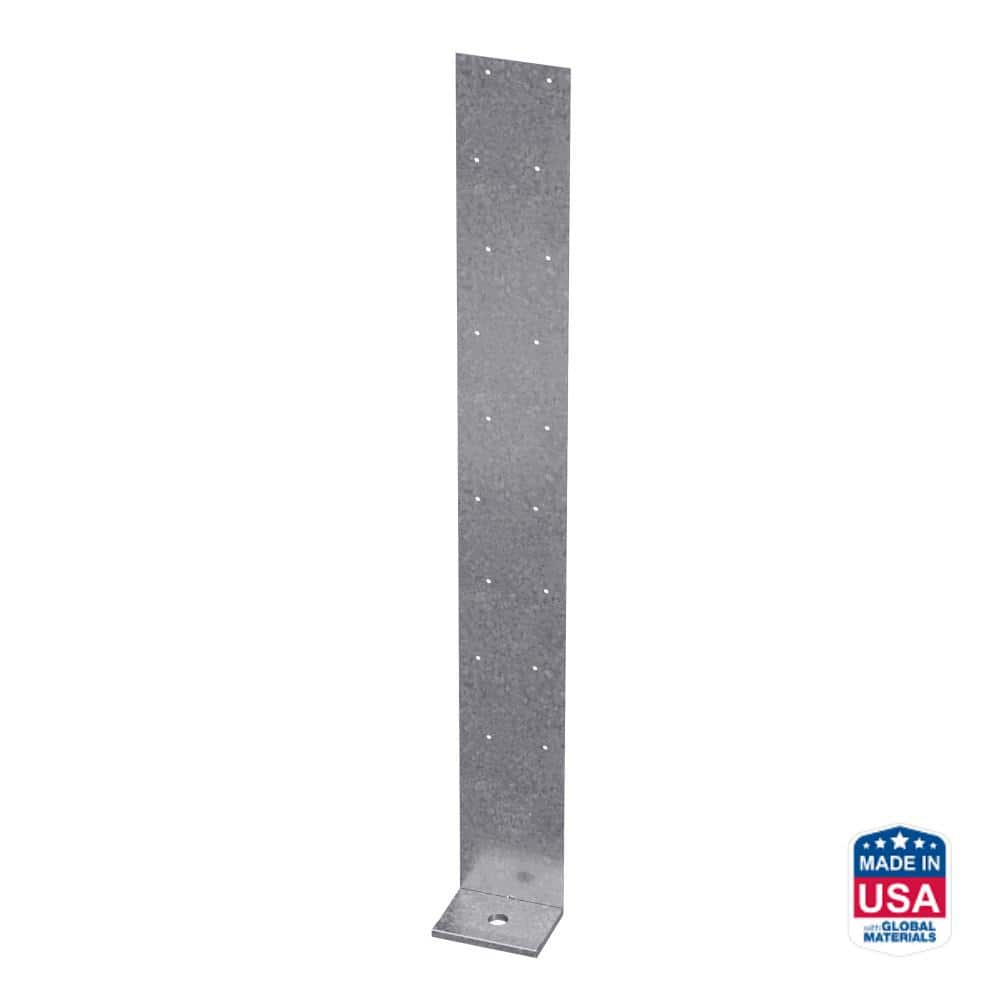

Simpson Light Tension Tie LTTI31

Mfr.: Simpson Strong-Tie
Item #: I093242
Mfr. #: LTTI31
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $125.35
i h h

Description

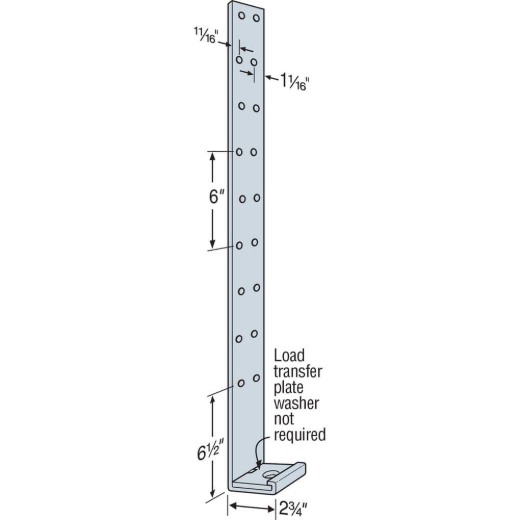

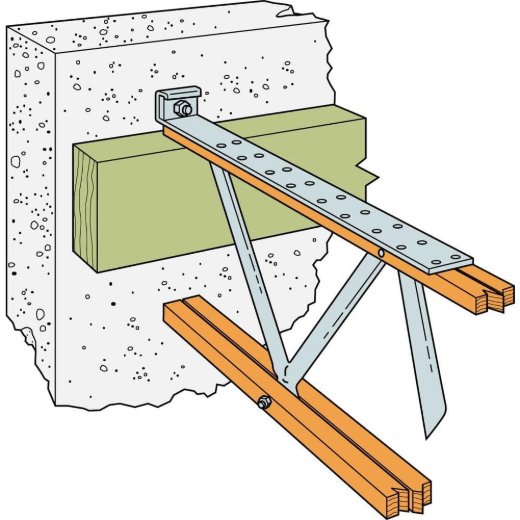

The Simpson Strong-Tie LTTI31 Light Tension Tie is engineered to resist tension loads, making it ideal for attaching wood members to concrete or masonry walls. Specifically designed for wood-chord open-web truss attachments, it features an integrated load transfer plate washer for enhanced performance. This versatile tie can be installed vertically on a minimum 2x6 stud using nails, offering a low-profile seat that minimizes visibility. Its robust construction ensures increased structural stability for critical framing connections.
  • Built-in load transfer plate washer
  • Low-profile seat
  • G90 Galvanized finish

Features

  • Nailing patterns accommodate various purlin/rafter/truss types.
  • Tested with different anchor bolt diameters for code compliance.
  • Corrosion-resistant for outdoor durability.

Includes

  • 1 x 31 inch 18 Gauge Light Tension Tie
Products specifications
Gauge 18
Length 31 inch
Width 3 3/4 inch
Material G90 Galvanized
Weight 2.4 lb
*
*
*
