Simpson Strong-Tie DSP Double Stud Plate Tie

Mfr.: Simpson Strong-Tie
Item #: I092578
Mfr. #: DSP
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.95
i h h

Description

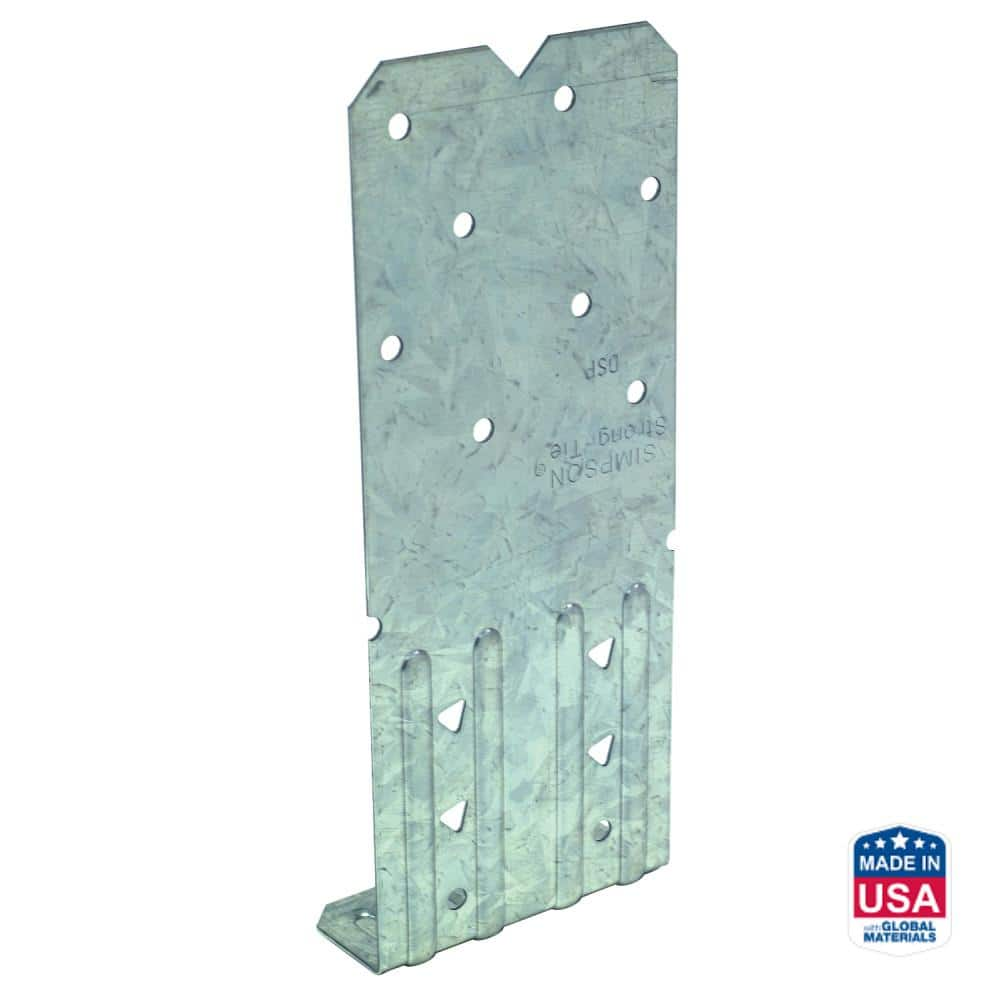

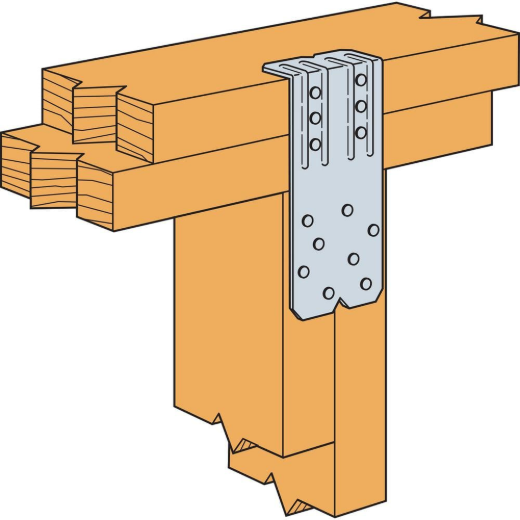

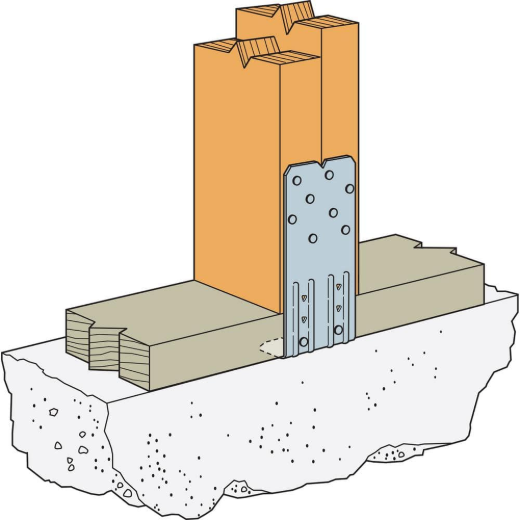

The Simpson Strong-Tie DSP Double Stud Plate Tie is a versatile connector designed to create a continuous load path for uplift resistance, specifically connecting double studs to either top or bottom plates. Its pre-bent steel strap design, featuring a top flange, ensures secure attachment to both sill and top plates for enhanced load distribution. Engineered for ease of installation, the DSP is ideal for structural framing in both new builds and retrofits, providing a clean and secure tie-down solution with added corrosion resistance.
  • Pre-bent steel strap construction
  • Top flange for secure plate attachment

Features

  • Embossments provide strength at the bend.
  • Can be installed before or after placement of wall.
  • Available in 18-gauge galvanized steel or ZMAX finish for added corrosion resistance.

Includes

  • 1x DSP Double-Stud Plate Tie
Products specifications
Material 18 gauge steel
Finish Galvanized or ZMAX coating

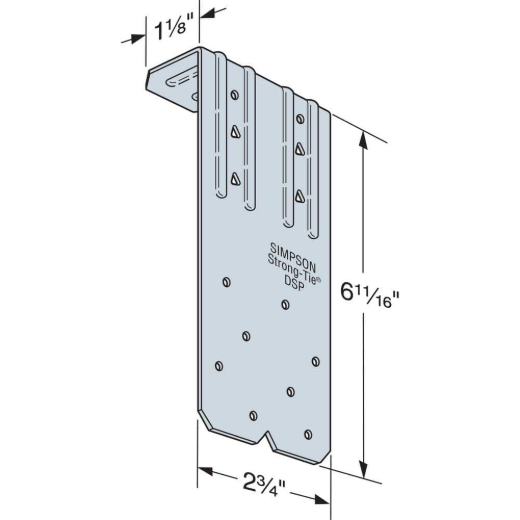

Width 2 3/4 inch
Length 6 11/16 inch
*
*
*
