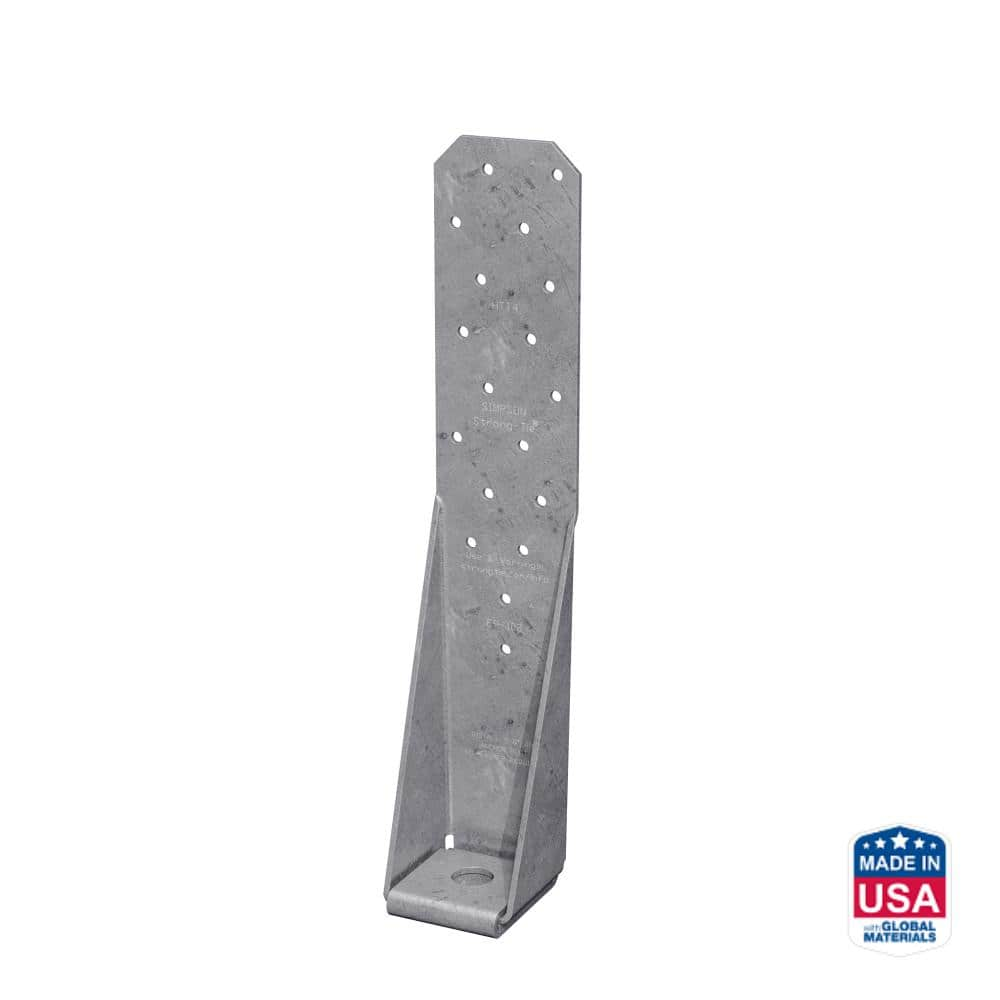

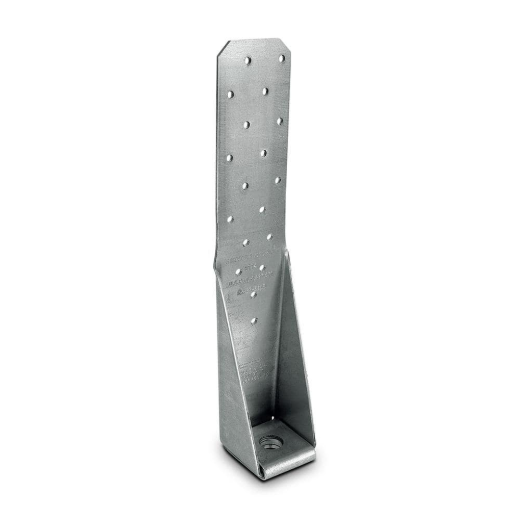

Simpson Strong-Tie HTT4HDG Heavy Tension Tie

Mfr.: Simpson Strong-Tie
Item #: I093169
Mfr. #: HTT4HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $56.85
i h h

Description

The Simpson Strong-Tie HTT4HDG Heavy Tension Tie is engineered to provide robust resistance against high tension loads in wood-to-concrete connections. It is an ideal solution for both residential and light-frame commercial buildings, ensuring structural integrity under demanding conditions. This tie is designed for high-strength, post-pour connections, offering enhanced stability against uplift forces from wind and seismic activity.
  • High Tension Load Resistance

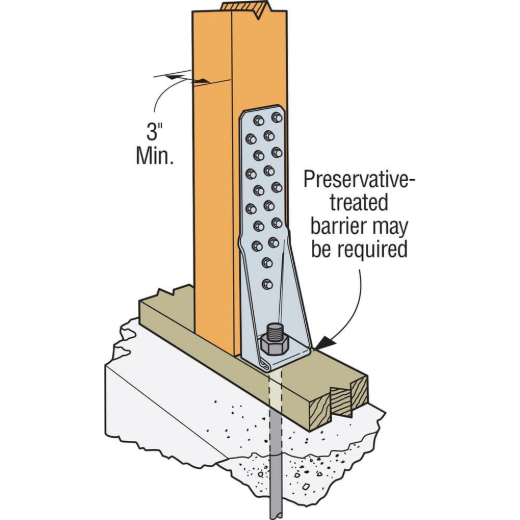

  • Wood-to-Concrete Connections

Features

  • Achieves allowable loads up to 7,650 lbs when installed with Strong-Drive SD Connector screws.
  • Features a four-fold seat and tapered base to reduce deflection and enhance strength.

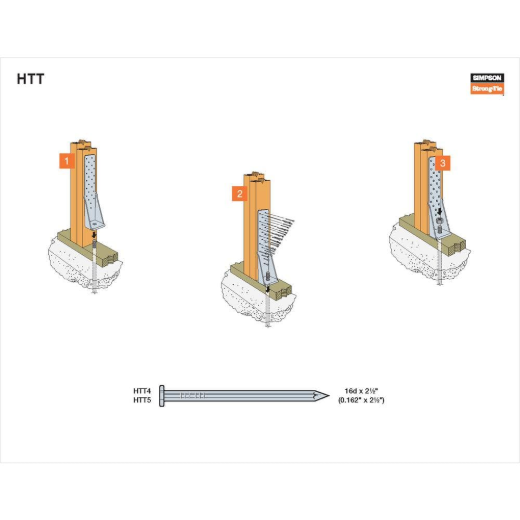

  • Compatible with standard pneumatic nail sizes and Strong-Drive SD Connector screws.
  • Made from 10-gauge galvanized steel for corrosion resistance.

Includes

  • One Heavy Tension Tie
Products specifications
Finish Hot Dip Galvanized
Length 12-3/8 inch
Material Galvanized Steel
Thickness 11 Gauge
Width 2-1/2 inch
Type Tension Tie
*
*
*
