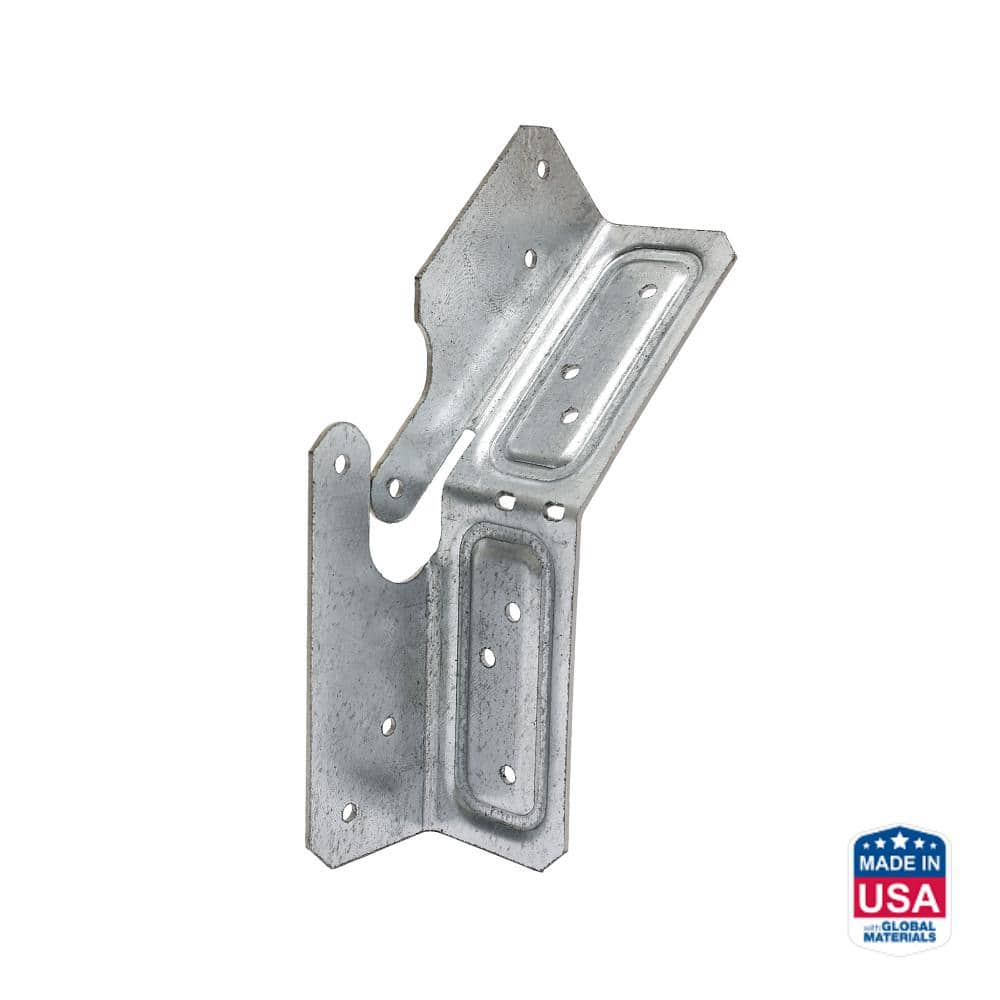

Simpson Strong-Tie KBS1Z Knee Brace Stabilizer

Mfr.: Simpson Strong-Tie
Item #: I093196
Mfr. #: KBS1Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5.50
i h h

Description

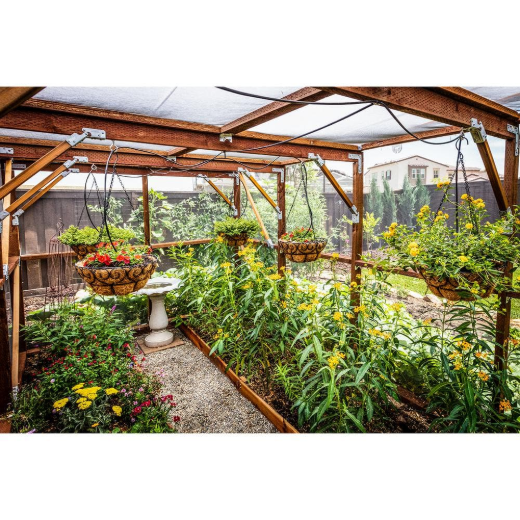

The Simpson Strong-Tie KBS1Z Knee Brace Stabilizer is engineered to create a critical structural connection between knee bracing and columns or beams, essential for stabilizing freestanding structures. It is designed to meet many prescriptive deck bracing requirements, including those outlined in the AWC's DCA6 Prescriptive Residential Wood Deck Construction Guide. This versatile connector is factory-formed at a 45 angle and can be easily installed with nails, making it suitable for bracing 2x, 4x, and 6x in-line post-to-beam configurations. Its ZMAX galvanization ensures superior corrosion resistance, making it ideal for exterior applications and use with treated lumber.

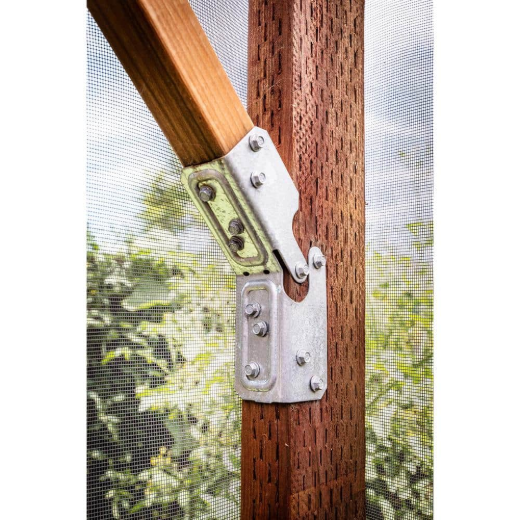

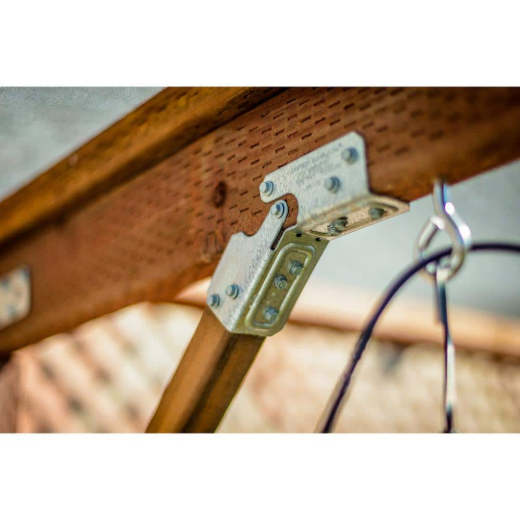

  • Structural connection for knee bracing to columns/beams
  • ZMAX galvanization for corrosion resistance

Features

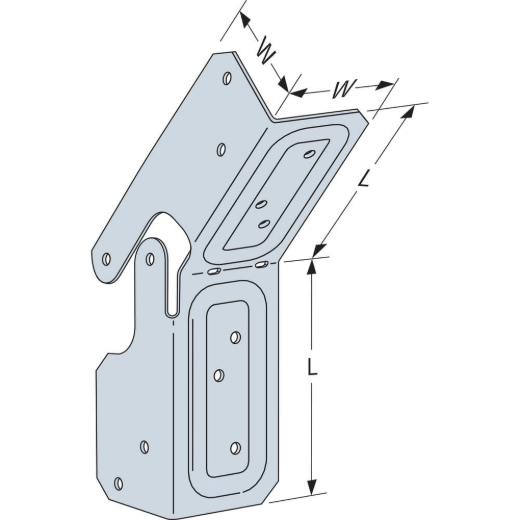

  • Factory-formed at a 45 angle, with slots for bending to custom angles (bend once only).
  • Suitable for 2x, 4x, and 6x in-line post-to-beam configurations.

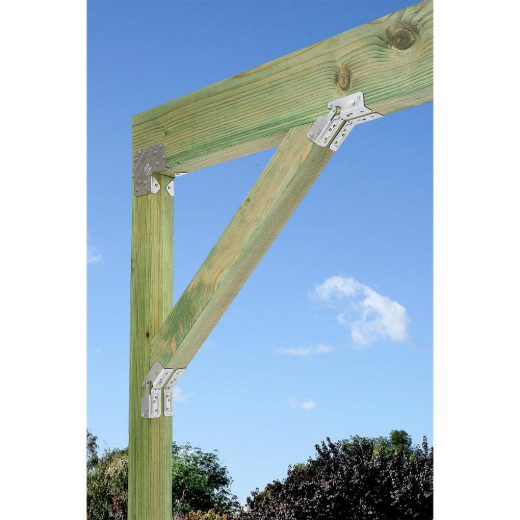

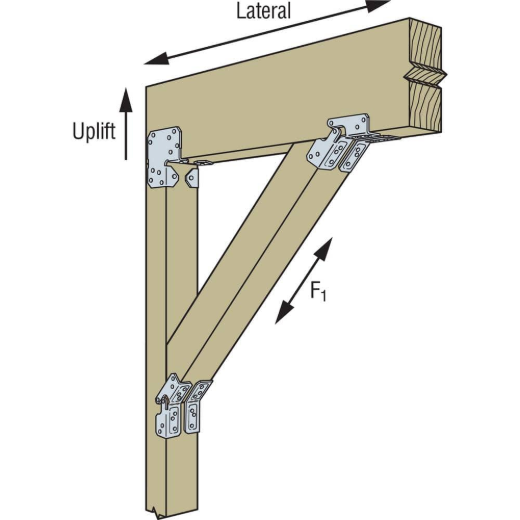

  • Can be installed in pairs for beam-to-post connections or with a single unit for 2x knee braces.
  • Meets requirements for many prescriptive deck bracing codes.

Includes

  • KBS1Z Knee-Brace Stabilizers
Products specifications
Material 16-gauge steel
Coating ZMAX galvanization
Angle Factory-formed 45 deg
Brace Size 2x, 4x, 6x
*
*
*
