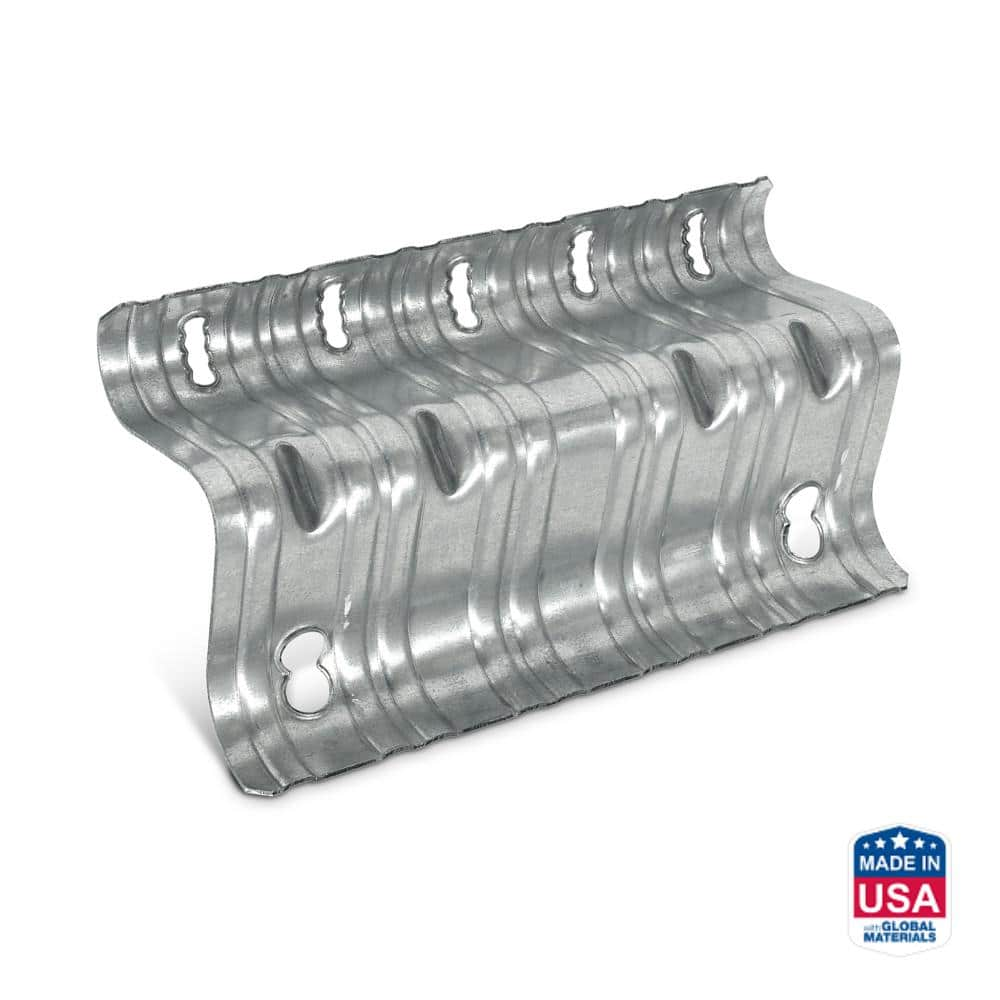

Simpson Universal Retrofit Foundation Plate

Mfr.: Simpson Strong-Tie
Item #: I094097
Mfr. #: URFP-SDS3HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $61.19
i h h

Description

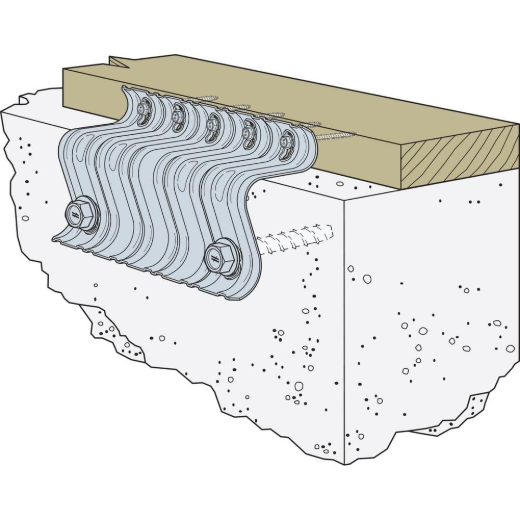

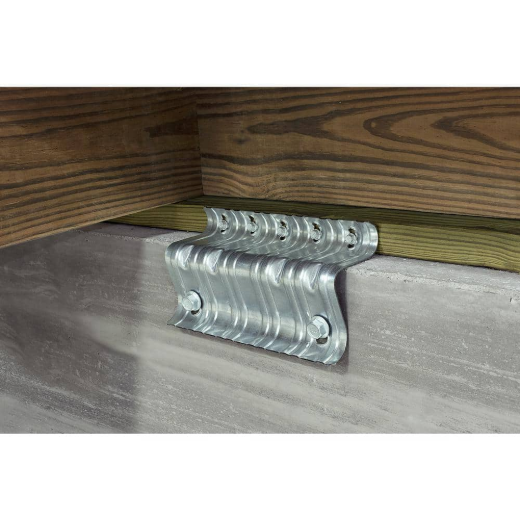

Upgrade your construction projects with the Simpson URFP-SDS3HDG Universal Retrofit Foundation Plate, designed specifically for applications where vertical clearance is limited. This innovative foundation plate offers a reliable retrofit solution to secure the mudsill to the foundation, ensuring stability and strength in your builds. Its universal design accommodates both offset and inset mudsill installations, providing flexibility for various construction scenarios. Engineered with longitudinal embossments and stiffening darts, it delivers exceptional load-bearing capabilities and can be used as a one-for-one replacement for 1/2-in. or 5/8-in. mudsill anchors.
  • Hot-Dip Galvanized (HDG) finish
  • Accommodates offset and inset mudsill installations

Features

  • Ideal where vertical clearance is minimal.
  • Increased loads for wind or earthquake loading.
  • Engineered with longitudinal embossments and stiffening darts for enhanced strength.
  • Scalloped, slotted hole feature allows for installation flexibility.

Includes

  • 1/4 inch x 3 inch Strong-Drive SDS Heavy-Duty Connector screws (supplied)
Products specifications

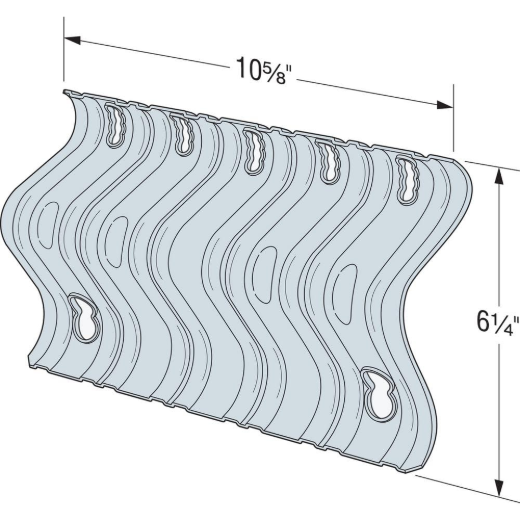

Dimensions 10-5/8 inch x 6-1/4 inch
Material Steel
Coating Hot-Dip Galvanized
Fasteners SDS screws
*
*
*
