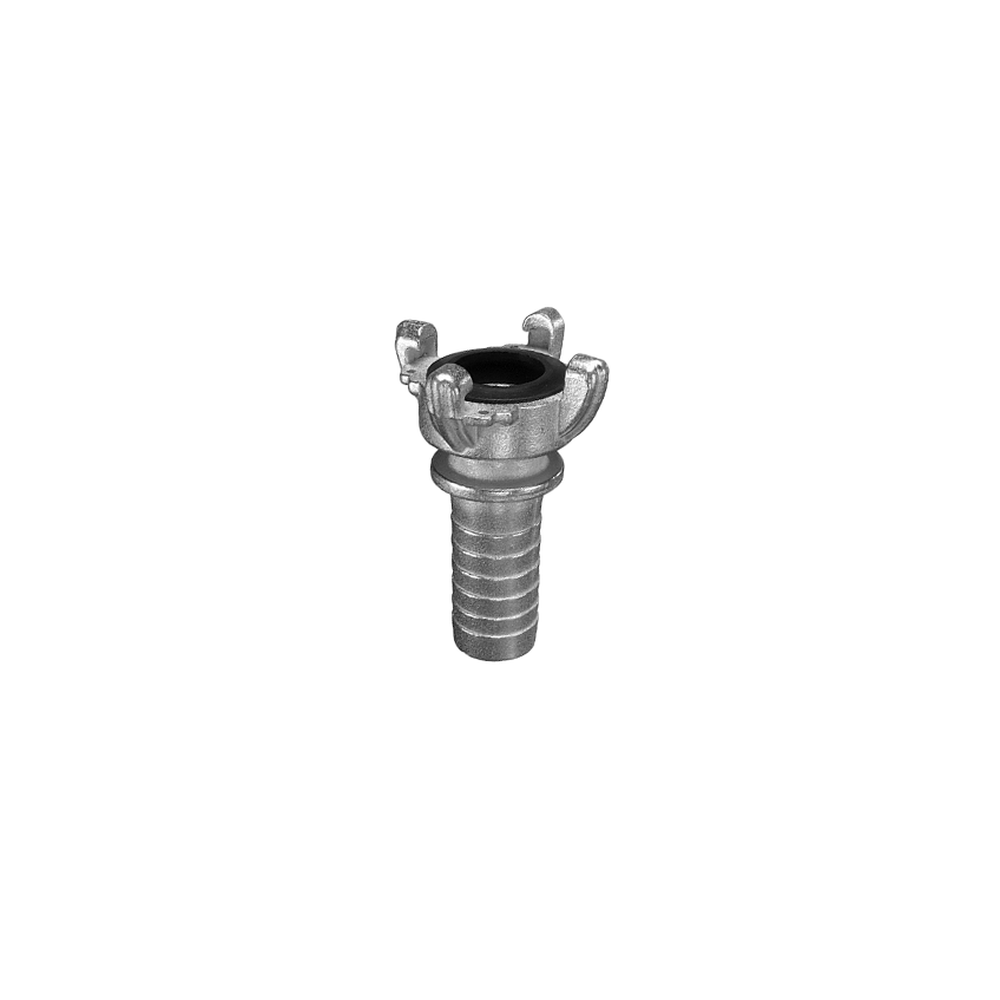

1-1/2 inch Universal 4-Lug Hose End

Mfr.: Approved Vendor
Item #: I077544
Mfr. #: UH-150-M
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $37.76
i h h

Description

This 1-1/2 inch universal hose end is engineered for heavy-duty air and water service in demanding industrial and pneumatic environments. Constructed from plated malleable iron for superior durability, the coupling features a 4-lug head designed for quick and secure quarter-twist connections. It is specifically rated for 150 PSI at ambient temperatures, providing a dependable link between high-capacity compressors and large-diameter industrial hoses.
  • Plated Malleable Iron Construction
  • 150 PSI Maximum Working Pressure

Features

  • 4-lug head interchanges with 1-1/4 inch to 2 inch sizes
  • Interlocking shank for use with bolted clamps
  • Integrated holes for safety clip installation

Includes

  • Safety Clips
  • Rubber Gasket Seal
Products specifications
Product Code UH-150-M
Size 1-1/2 inch
Material Plated Malleable Iron
Coupling Style 4-Lug Universal
Max Pressure 150 PSI (at 70 degF)
Connection Type Hose Barb Shank
Lug Series Large Hose 4-Lug
Interchangeability 1-1/4 inch through 2 inch 4-Lug
*
*
*
