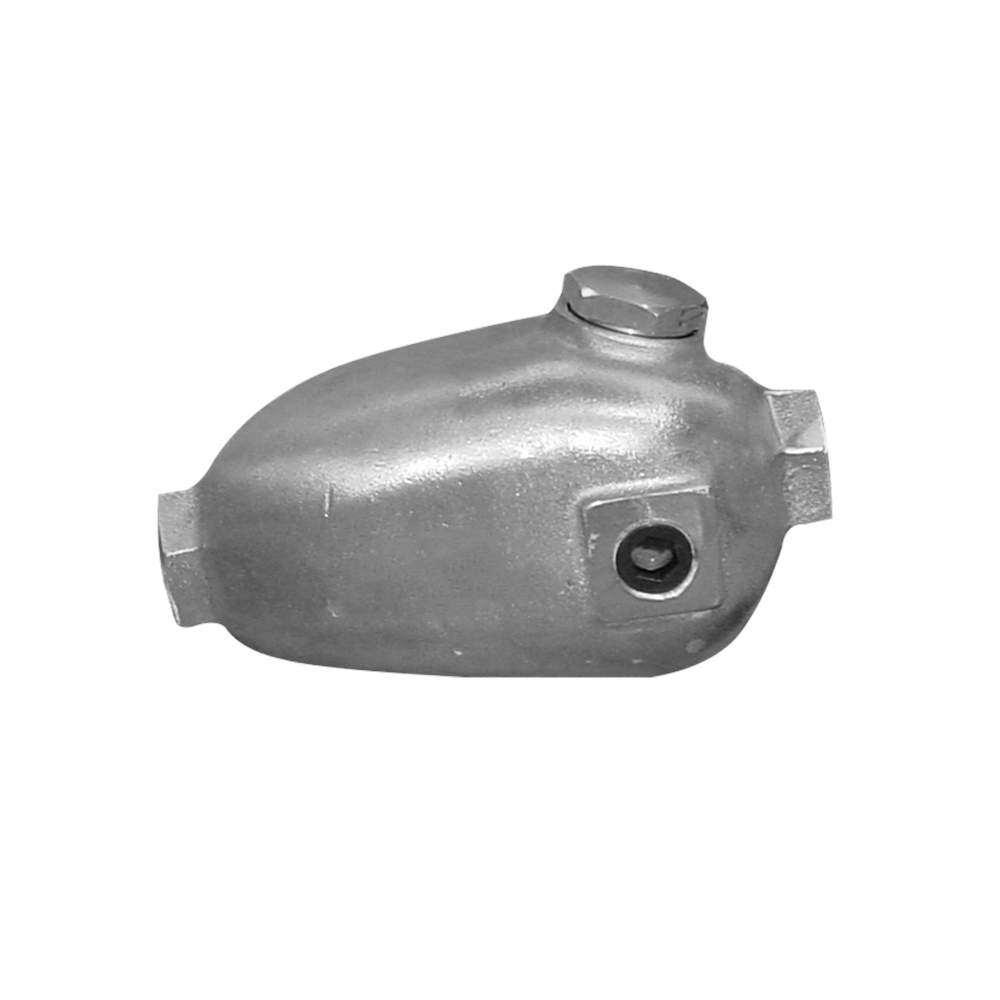

1 in 16.0 Fluid Oz In-Line Lubricator

Mfr.: Approved Vendor
Item #: I077554
Mfr. #: UPL-500
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $221.25
i h h

Description

This heavy-duty in-line lubricator is designed to provide consistent lubrication for air tools operating at a distance from a stationary compressor. It effectively eliminates costly downtime and reduces repair expenses by ensuring tools receive the necessary lubrication for optimal performance. The unit features a durable cast aluminum body with a 16.0 fluid ounce reservoir, making it suitable for demanding industrial jobsites. Its robust design allows for installation directly in the air line, approximately 6 to 8 feet from the tool, to maximize service life.
  • Adjustable Metering Valve
  • Integrated Oil Level Sight Disk

Features

  • Rugged cast aluminum construction provides extreme durability in harsh environments.
  • Large 16.0 fluid ounce reservoir capacity extends operation time between refills.
  • Supports high-flow applications with a maximum air flow of 150 CFM at 90 PSI.
  • High-pressure compatibility with a maximum working pressure of 250 PSI.

Includes

  • 16 oz. In-Line Lubricator Assembly
  • Internal Adjustable Needle Valve
  • Integrated Viewing Sight Disk
Products specifications
Model Number UPL-500
Connection Size 1 inch NPT Female
Fluid Capacity 16.0 Fluid Ounce
Max Working Pressure 250 PSI
Max Air Flow 150 CFM @ 90 PSI
Body Material Cast Aluminum
Weight 4.16 lbs
*
*
*
