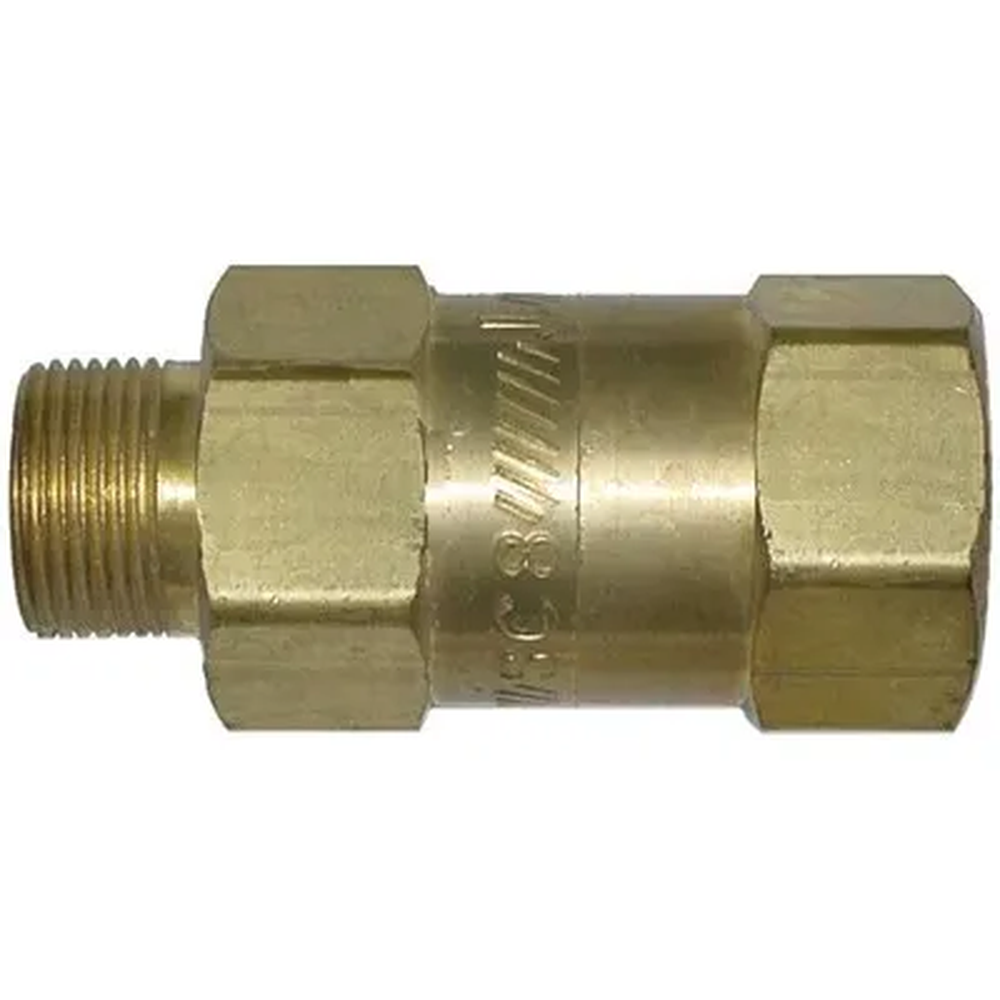

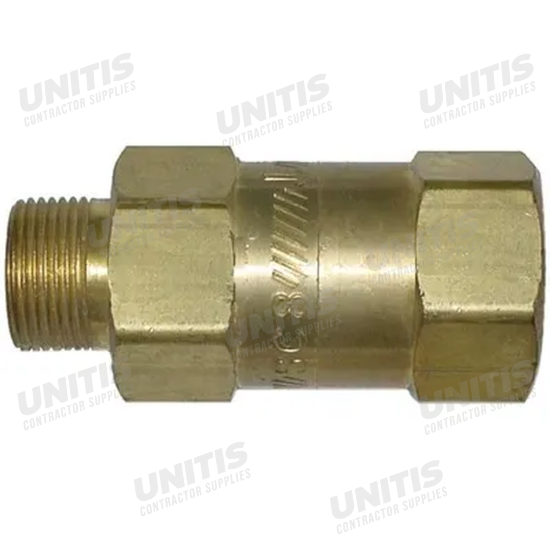

1 in Excess Air Flow Valve (220-260 CFM)

Mfr.: Approved Vendor
Item #: I077562
Mfr. #: UXSV-100
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $185.83
i h h

Description

This high-performance safety check valve is engineered to provide essential protection for compressed air systems by automatically shutting off air flow when a sudden change in flow is detected. It effectively prevents dangerous hose whip in the event of a hose or coupling failure, safeguarding both personnel and equipment in demanding industrial environments. Once the line is repaired and pressure equalizes through the integrated bleed orifice, the valve automatically resets to resume normal operation. This reliable safety component is a critical addition to any high-pressure air line setup.
  • Automatic Shut-off Protection
  • Corrosion-Resistant Brass Body

Features

  • Conforms to safety standards including OSHA regulation 1926.302(b)(7) for air supply lines.
  • Features a stainless steel spring and roll pin for long-lasting performance and reliability.
  • One-directional flow design ensures precise control and helps prevent system hazards.
  • Tamper-resistant construction maintains set safety parameters without manual adjustment.

Includes

  • 1 inch NPT Excess Air Flow Valve
  • Integrated Automatic Reset Bleed Orifice
Products specifications
Connection Size 1 inch NPT
Flow Range 220 - 260 CFM
Maximum Pressure 250 PSI
Maximum Temperature 250 degF
Body Material Solid Brass
Spring Material Stainless Steel
Flow Direction One-Directional
Compliance OSHA 1926.302(b)(7)
*
*
*
