1 Universal Hose End Coupling - Chicago Style

Mfr.: Approved Vendor
Item #: I077542
Mfr. #: UH-100-M
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $13.57
i h h

Description

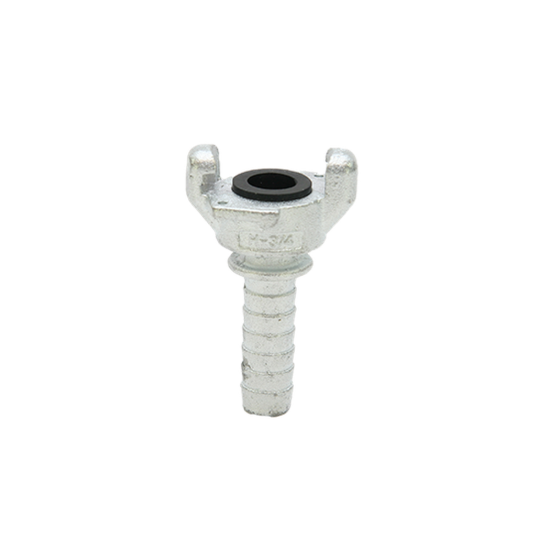

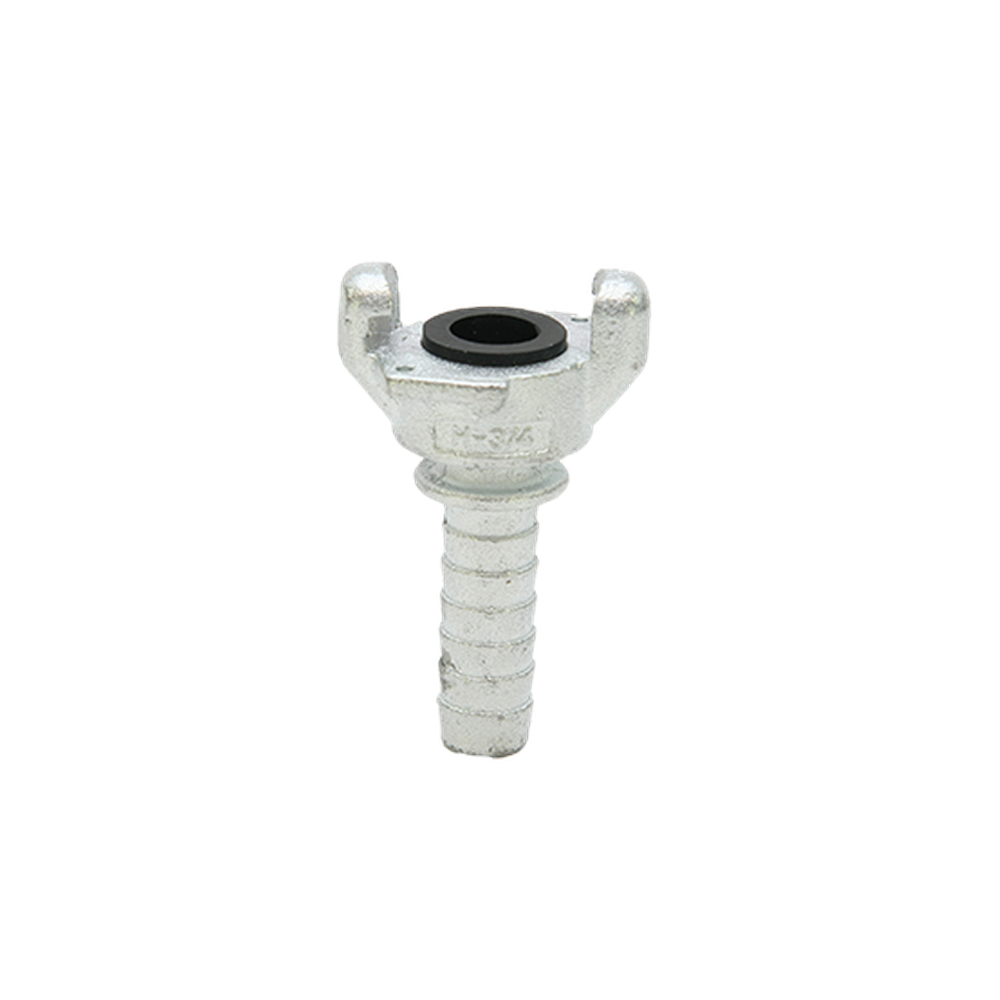

The 1 UNIVERSAL HOSE END is a heavy-duty Chicago-style coupling designed for quick and secure connections in both compressed air and water systems. Its intuitive quarter-turn design allows for rapid tool changes and hose extensions, significantly improving workflow productivity on demanding industrial job sites. Engineered from rugged malleable iron with a corrosion-resistant zinc finish, this hose end provides exceptional durability and long-term reliability. The universal 2-lug head ensures seamless interchangeability with other standard universal couplings up to one inch in size.
  • Rugged Malleable Iron Construction
  • Zinc Plated for Corrosion Resistance
  • Standard 2-Lug Head Design

Features

  • Quick-action quarter-turn connection system requires no tools for operation.
  • Integrated safety pin holes prevent accidental disconnection during high-vibration tasks.
  • Interchangeable with all standard universal couplings from 1/4 inch to 1 inch.
  • Optimized for air and water service in construction and manufacturing environments.

Includes

  • Universal Hose End Coupling
  • Safety Clip Pin
  • Internal Rubber Gasket
Products specifications
Part Number UH-100-M
Nominal Size 1 inch
Material Malleable Iron
Finish Zinc Plated
Connection Type Hose Barb
Max Pressure 150 PSI
Temperature Range -20 degF to 160 degF
Lug Type 2-Lug Universal
Service Air and Water
*
*
*
