16 in IP 67 TECH LEVEL W/CASE

Mfr.: Stabila
Item #: I090494
Mfr. #: 39516
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $332.76
i h h

Description

The Stabila 39516 is a professional-grade 16-inch Type 196 DL Digital TECH Level designed to withstand the harshest jobsite conditions. Featuring ULTRA-PROTECT technology, it is rated IP 67 for complete protection against dust and water, allowing it to be submerged or cleaned under running water. This level is engineered to be calibration-free, maintaining its high precision even after falls or significant temperature fluctuations.
  • ULTRA-PROTECT: Dust and waterproof (IP 67)
  • CAL-FREE: No calibration needed for daily use

Features

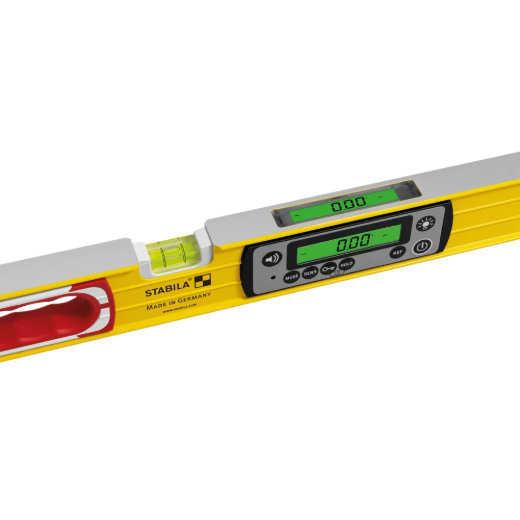

  • Two illuminated digital displays for easy reading in any lighting condition.
  • Acoustic guidance with two different signal tones for quick component alignment.
  • REF-MODE allows for the acceptance, storage, and transfer of angle measurements.
  • Keypad lock (KEY-LOCK) to protect against accidental inputs during use.

Includes

  • 16-inch TECH 196 DL Digital Level
  • Protective Carrying Bag
  • 2 x AA Batteries
Products specifications
Length 16 inches (40 cm)
Electronic Accuracy ± 0.05 deg at 0 deg and 90 deg
Vial Accuracy 0.5 mm/m (0.029 deg)
Protection Class IP 67 (Waterproof and Dustproof)
Battery Type 2 x AA
Operating Life 400 hours
Measuring Modes deg, %, mm/m, in/ft (decimal & fraction)
Housing Aluminum profile with reinforcing ribs
End Caps Shock-absorbing, removable with slip-stoppers
*
*
*
