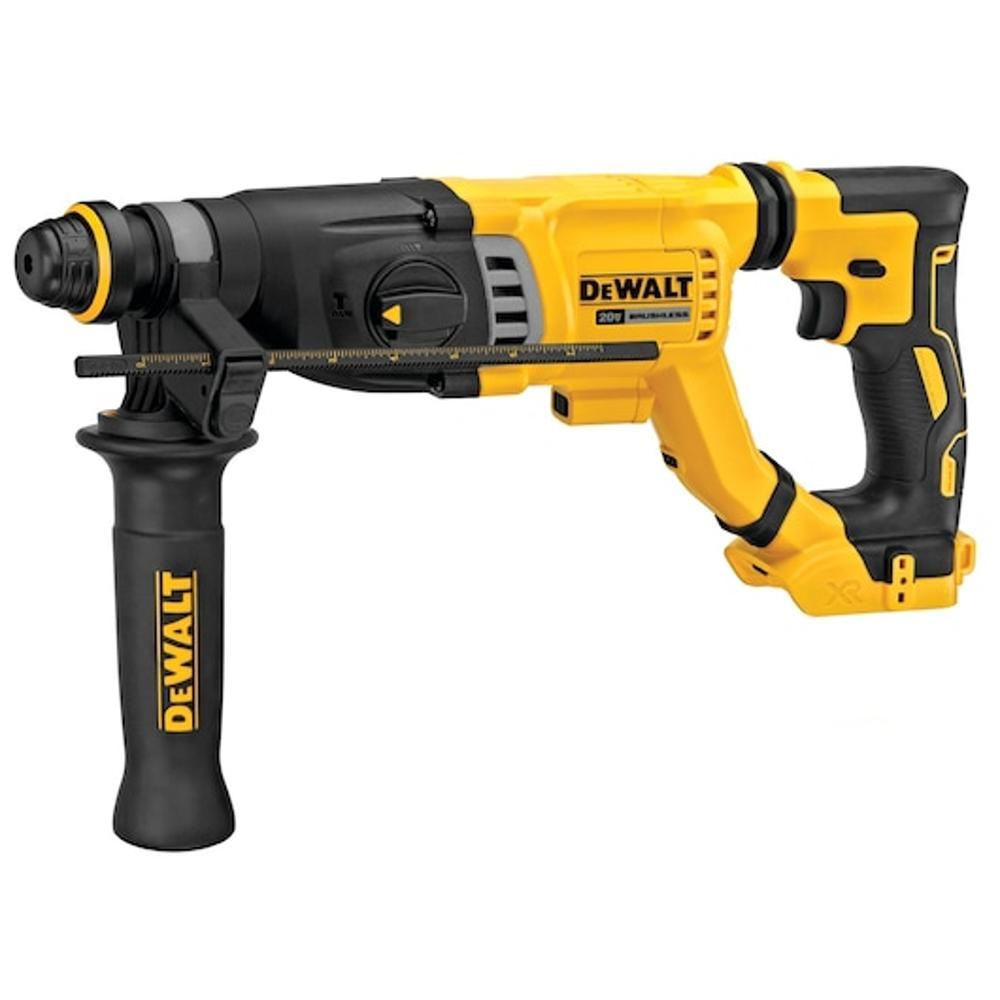

    20V MAX* SDS PLUS 1-1/8 in. Brushless D-Handle Rotary Hammer (Tool Only)

    Mfr.: Dewalt
    Item #: I070519
    Mfr. #: DCH263B
    *
    Pickup at Buena Park | Change Delivering to 92111 | Change

    Price: Call for pricing
    WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

    Description

    Unleash your potential with the formidable 20V MAX* 1-1/8 in. Rotary Hammer. Engineered with a cutting-edge brushless motor and a robust German-crafted mechanism, this powerhouse delivers an impressive 3.0 Joules of impact energy. Its remarkably lightweight build makes it the ultimate companion for a spectrum of demanding tasks, including concrete forming, securing #3 to #5 rebar dowels, supporting tilt walls, hanging rods, anchoring beams and columns, and mounting steel stanchions. Experience enhanced user comfort and reduced fatigue during extended work sessions thanks to the integrated SHOCKS ACTIVE VIBRATION CONTROL System, which effectively minimizes handle vibration. Achieve OSHA Table 1 Compliance with ease when using the DWH205DH On Board Extractor. Battery & Charger Sold Separately
    • 3.0 Joules of impact energy for rapid concrete drilling.
    • The SHOCKS ACTIVE VIBRATION CONTROL System significantly reduces felt vibration at the handles, offering a noticeable improvement over standard rotary hammers.
    • Its lightweight design makes it exceptionally suited for concrete forming, post-installed rebar dowelling (#3 to #5), tilt wall bracing, rod suspension, beam & column anchoring, and steel stanchion installation.

    Features

    • Meets OSHA Table 1 standards when paired with the DWH205DH On Board Extractor.
    • Powered by a brushless motor and a resilient German-engineered mechanism for optimized performance and extended runtime.
    • Features a rotating dial to effortlessly switch between Drill, Hammer Drill, and Chip modes for specific application needs.

    Includes

    • (1) DCH263 Rotary Hammer
    • (1) 360 Side Handle
    • (1) Depth Rod
    Products specifications
    Battery Chemistry Lithium Ion
    Battery Type Lithium Ion
    Battery Voltage [V] 20
    Chuck Size [in] 1-1/8
    Chuck Type SDS+
    Color Yellow
    Has LED Light Yes
    Impact Energy (J) EPTA Value 3.0 J
    Impact Rate per Min. 4300
    Is Brushless Yes
    No Load Speed [RPM] 1165
    Number Of Pieces 3
    Optimum Drilling Range 1/4 - 3/4 in.
    Power Source Cordless
    Product Height [in] 4
    Product Height [mm] 102
    Product Length [in] 17
    Product Length [mm] 432
    Product Weight [g] 2700
    Product Weight [Kg] 2.7
    Product Weight [lbs] 5.95
    Product Weight [oz] 95.2
    Product Width [in] 7-5/7
    Product Width [mm] 195
    RPM 0-1165
    System SHOCKS System
    *
    *
    *
