  • 3/4 inch 11.0 Fluid Oz. In-Line Lubricator

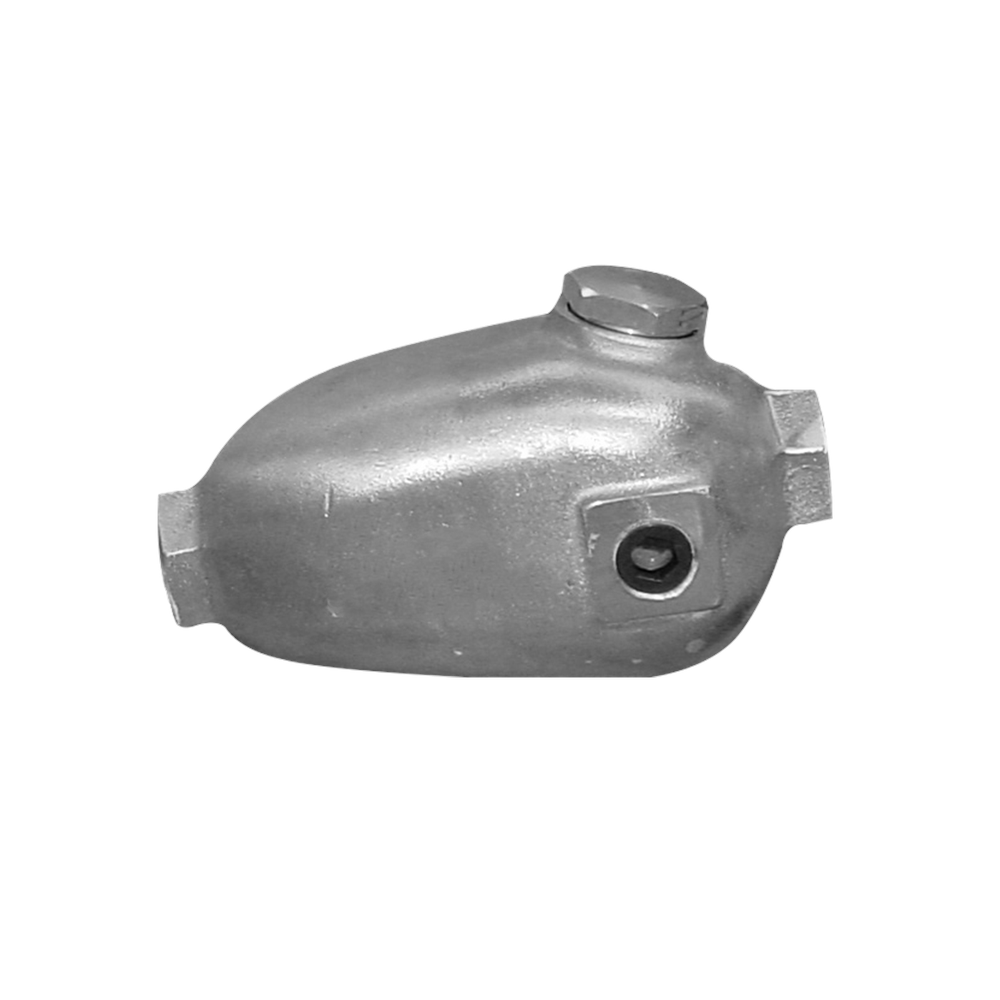

3/4 inch 11.0 Fluid Oz. In-Line Lubricator

Mfr.: Approved Vendor
Item #: I077553
Mfr. #: UPL-400L
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $135.11
i h h

Description

The UPL-400L is a high-capacity in-line lubricator designed to provide essential protection for pneumatic tools by injecting a fine oil mist into the air stream. Featuring a generous 11.0 fluid ounce capacity, this unit is ideal for high-demand environments where frequent refilling is impractical. It effectively minimizes friction and prevents internal corrosion, significantly extending the service life of both portable and stationary air-driven equipment.
  • 11.0 Fluid Oz. Capacity
  • 3/4 inch NPT Female Threads
  • Industrial Aluminum Construction

Features

  • Transparent sight disc allows for immediate visual inspection of oil levels.
  • Oil flow is easily regulated via a precise screwdriver adjustment screw.
  • Rugged 356-T6 aluminum body is built to withstand demanding job site conditions.
  • Designed to operate automatically each time the air tool is activated.

Includes

  • In-Line Lubricator Assembly
  • Integrated Sight Gauge
  • Flow Adjustment Valve
Products specifications
Model UPL-400L
Thread Size 3/4 inch NPT
Oil Capacity 11.0 Fluid Oz.
Material 356-T6 Aluminum
Max Pressure 300 PSI at 70 degF
Max Flow Rate 70 SCFM
Min Flow Rate 30 SCFM
Weight 2.57 lbs.
*
*
*
