  • 3/4 inch 3.7 Fluid Oz. In-Line Lubricator

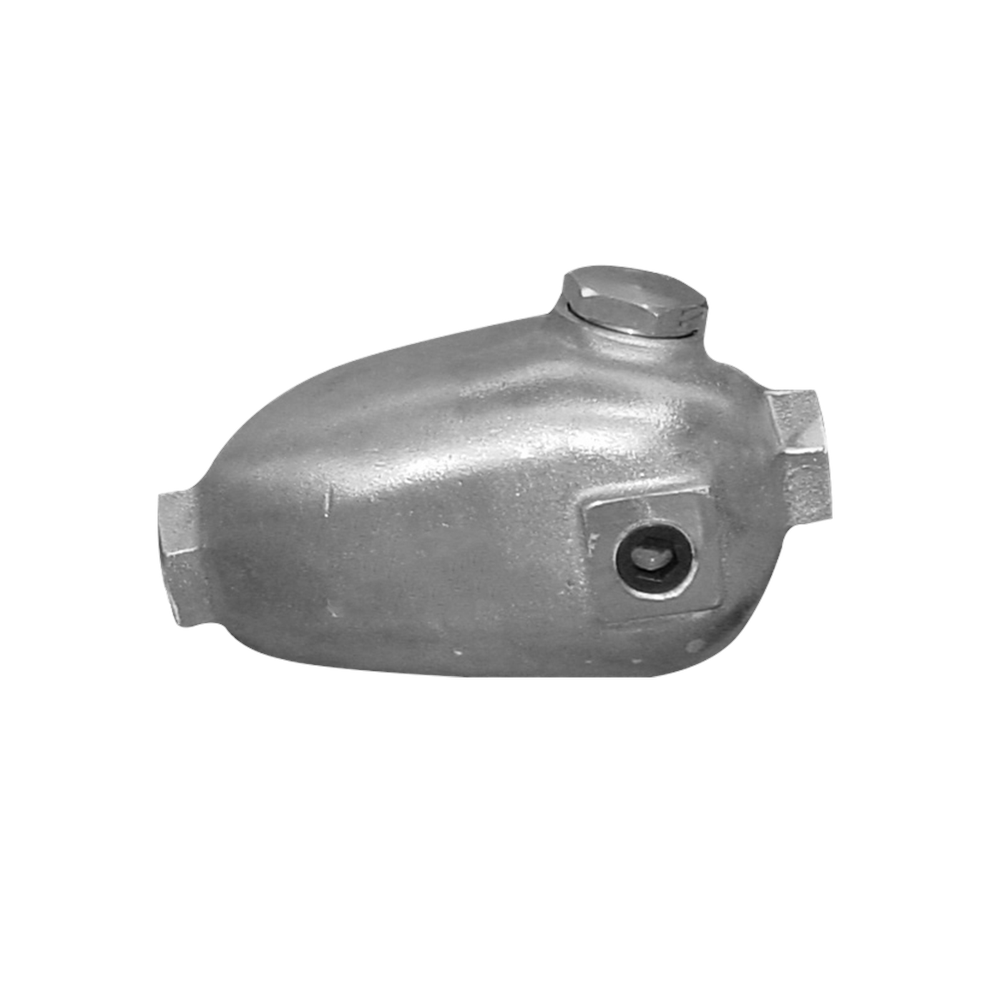

3/4 inch 3.7 Fluid Oz. In-Line Lubricator

Mfr.: Approved Vendor
Item #: I077552
Mfr. #: UPL-400
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $110.33
i h h

Description

This heavy-duty in-line lubricator is designed to protect both portable and stationary air tools by providing consistent, automatic lubrication to internal tool mechanisms. By injecting a fine mist of oil into the air stream during tool operation, it prevents premature wear and significantly extends the service life of pneumatic equipment. Its durable cast aluminum construction ensures reliability in demanding industrial environments while maintaining a lightweight profile.
  • Efficient Mist Injection
  • Corrosion-Resistant Aluminum Body
  • Adjustable Oil Flow

Features

  • Transparent sight disc allows for quick visual inspection of oil levels during operation.
  • Oil flow is easily regulated using a simple screwdriver screw adjustment to meet specific tool requirements.
  • Optimized for intermittent or pulse-operated tools such as nailers and staplers.
  • Maximum working pressure of 200 PSI with a flow rate of 70 SCFM at 90 PSI.

Includes

  • In-line Lubricator Assembly
  • Integrated 3.7 oz. Reservoir
  • Internal Flow Adjustment Valve
Products specifications
Connection Size 3/4 inch NPT Female
Oil Capacity 3.7 Fluid Oz.
Max Pressure 200 PSI
Max Air Flow 70 SCFM
Min Air Flow 30 SCFM
Body Material Cast Aluminum
Overall Height 2-3/4 inch
Overall Width 6 inch
Adjustment Type Screwdriver Screw
Tool Compatibility Pulse/Intermittent Operated
*
*
*
