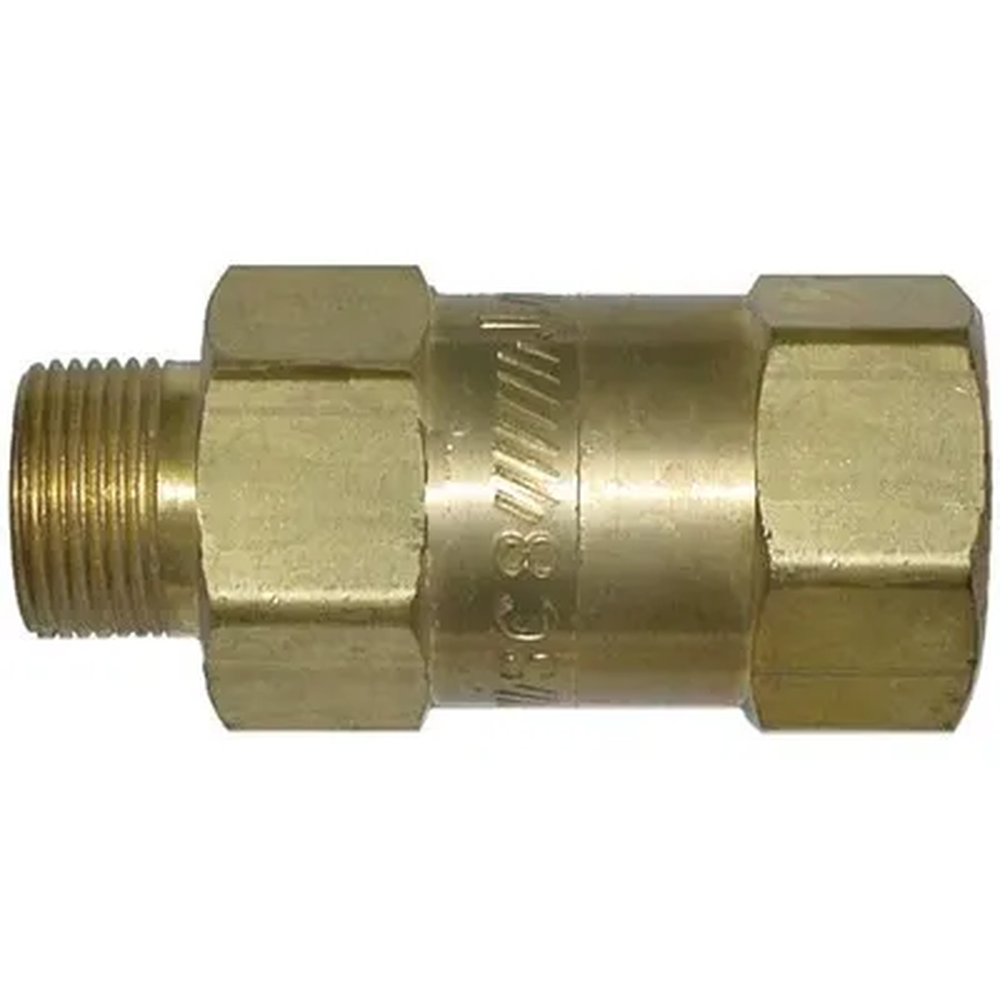

3/4 inch NPT Excess Air Flow Safety Valve (112-128 CFM)

Mfr.: Approved Vendor
Item #: I077563
Mfr. #: UXSV-75
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $164.33
i h h

Description

This high-performance safety check valve is a vital protection device for pneumatic systems, designed to instantly shut off air flow if a sudden surge is detected due to a hose rupture or accidental disconnection. It effectively prevents dangerous hose whip, ensuring the safety of personnel and preventing equipment damage in high-pressure environments. As part of the UXSV series of safety valves, this unit is engineered for reliability and low maintenance in demanding industrial applications.
  • Automatic excess flow shut-off mechanism
  • Self-resetting operation after pressure equalization

Features

  • Optimized for high-flow performance with minimal resistance.
  • Constructed with a rugged solid brass body for long-term durability.
  • Equipped with a corrosion-resistant stainless steel spring and pin.
  • Fully compliant with OSHA regulation 1926.302 (b)(7) safety standards.

Includes

  • 3/4 inch Excess Air Flow Valve
Products specifications
Model UXSV-75
Connection Size 3/4 in NPT
Flow Range 112 - 128 CFM
Testing Pressure 90 PSI
Max Operating Pressure 350 PSI
Max Temperature 250 degF (121 degC)
Body Material Brass
Internal Components Stainless Steel
Compliance OSHA 1926.302 (b)(7)
*
*
*
