3/4 inch Universal Hose End Fitting

Mfr.: Approved Vendor
Item #: I077541
Mfr. #: UH-075-M
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $11.80
i h h

Description

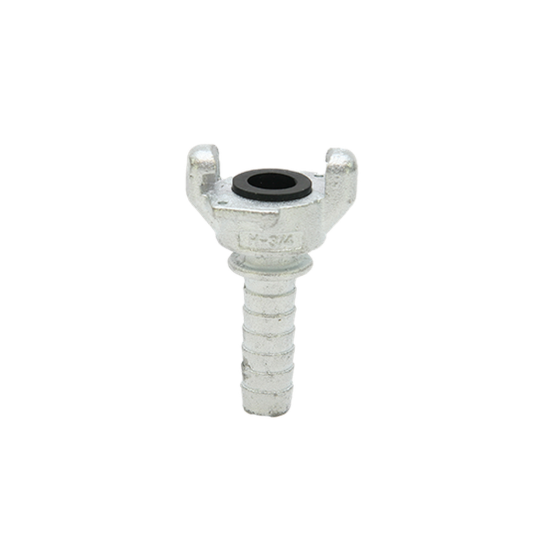

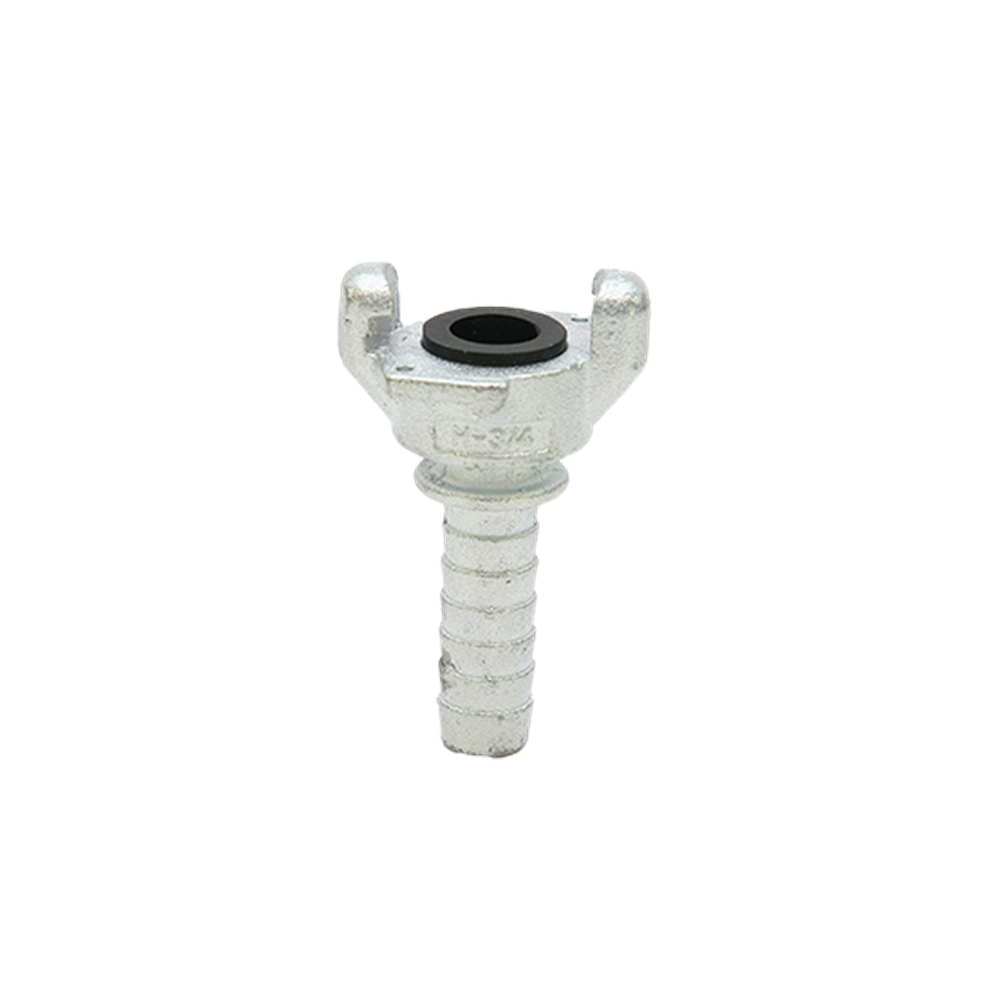

This heavy-duty 3/4 inch universal hose end is engineered for reliable performance in pneumatic and fluid transfer applications. Constructed from rust-proof malleable iron, it provides a secure and durable connection for compressed air, water, and spray systems. The classic two-lug design allows for quick coupling and decoupling, making it an essential component for demanding job sites and industrial environments. It is designed to withstand rigorous use while ensuring a leak-free seal when properly engaged.
  • Durable Malleable Iron
  • Rust-Proof Plating

Features

  • Standard 2-lug universal 'Chicago style' design for cross-brand compatibility.
  • Robust hose barb end provides maximum retention on 3/4-inch ID hoses.
  • Safety clip holes included to prevent accidental disconnection under pressure.
  • Rated for 150 PSI at ambient temperatures for high-pressure air service.

Includes

  • Universal Hose End Fitting
  • Rubber Gasket (AWR4 style)
  • Safety Clip
Products specifications
Part Number UH-075-M
Hose Size 3/4 inch
Material Malleable Iron
Connection Type Hose Barb x Universal 2-Lug
Max Operating Pressure 150 PSI
Temperature Range -20 degF to 160 degF
Style Chicago / Claw Style
Coating Zinc Plated / Rust Resistant
Weight 0.46 lbs
Compliance A-A-59553 (supersedes WW-C-633D)
*
*
*
