  • 3/8 inch Brass Male Straight-Thru Coupling

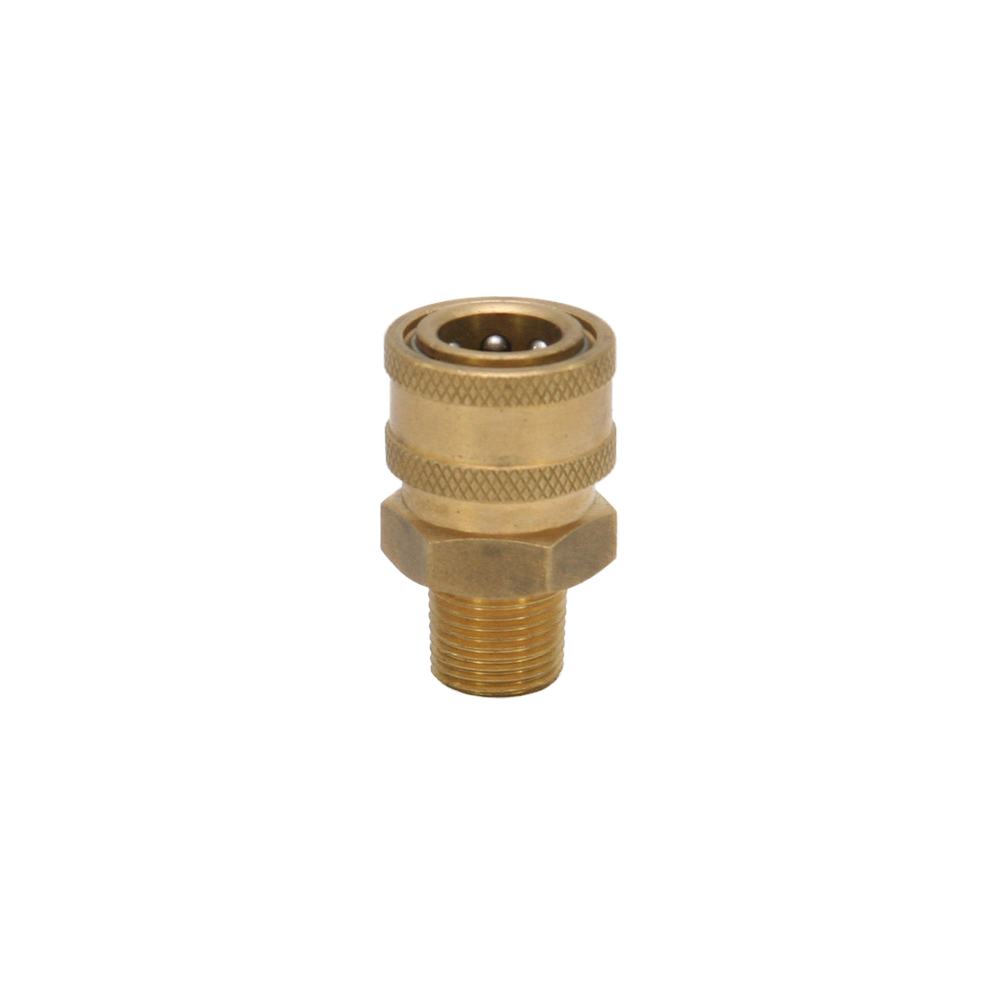

3/8 inch Brass Male Straight-Thru Coupling

Mfr.: Approved Vendor
Item #: I077467
Mfr. #: PW-3EM3-B
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $18.69
i h h

Description

This 3/8 inch brass male straight-thru coupling is engineered for high-pressure environments requiring maximum flow and negligible pressure drop. Its straight-through design is valve-free, allowing for efficient fluid transfer in pressure washing and industrial applications. Built with high-quality brass, it ensures long-lasting durability and resistance to corrosion.
  • Straight-through design for maximum flow
  • High-quality brass construction

Features

  • Interchanges with Parker ST, Foster FST, and Hansen ST
  • Operating pressure rated up to 2,700 PSI
  • Wide temperature range from -40F to 250F

Includes

  • 3/8 inch Brass Male Straight-Thru Coupling
Products specifications
Material Brass
Thread Size 3/8 inch-18 MNPTF
Body Size 3/8 inch
Max Operating Pressure 2,700 PSI
Burst Pressure 10,800 PSI
Temperature Range -40 degF to 250 degF
Hex Size 3/4 inch
Length 1.69 inch
Maximum OD 0.79 inch
Weight 0.20 lbs
*
*
*
