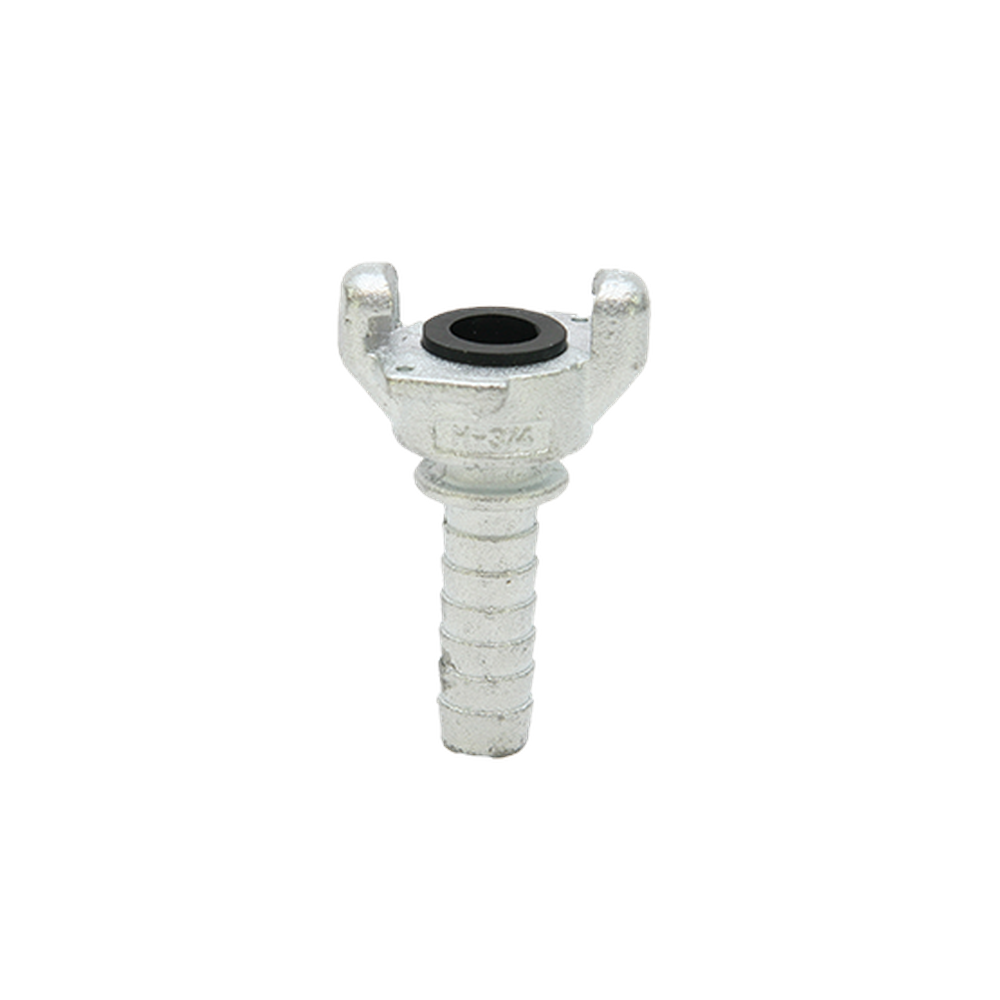

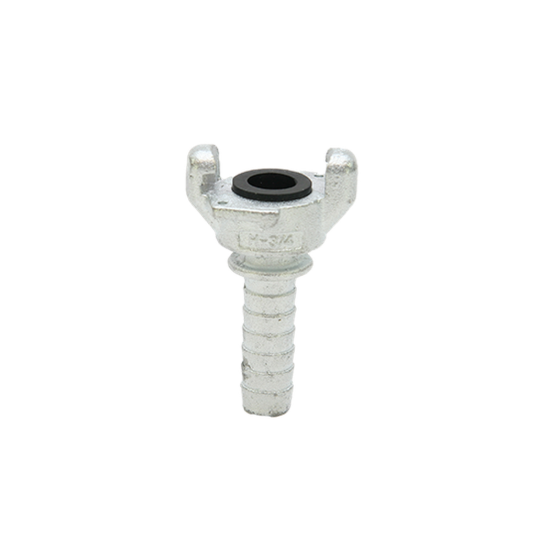

5/8 inch Universal Hose End Coupling

Mfr.: Approved Vendor
Item #: I077539
Mfr. #: UH-062-M
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $21.85
i h h

Description

The 5/8 inch Universal Hose End is a heavy-duty malleable iron coupling designed for fast and reliable connections in high-demand air and water applications. Commonly referred to as a Chicago or Crowfoot coupling, this 2-lug fitting features a quarter-turn design that allows for effortless mating with other universal couplings regardless of the hose size. Its rugged construction and corrosion-resistant finish make it an ideal choice for industrial jobsites, pneumatic tool service, and construction environments.
  • Heavy-duty malleable iron construction
  • Zinc-plated finish for corrosion resistance

Features

  • Universal 2-lug head design interchanges with all standard Chicago-style couplings up to 1 inch.
  • Quick-connect quarter-turn mechanism provides efficient assembly and disassembly on the job.
  • Rated for industrial air and water service at a maximum pressure of 150 PSI at ambient temperatures.

Includes

  • Safety Clips
  • Rubber Washer
Products specifications
Material Malleable Iron
Finish Zinc Plated
Connection Type Hose Barb
Hose I.D. 5/8 inch
Pressure Rating 150 PSI
Lug Style 2-Lug Universal
Service Air and Water Only
*
*
*
