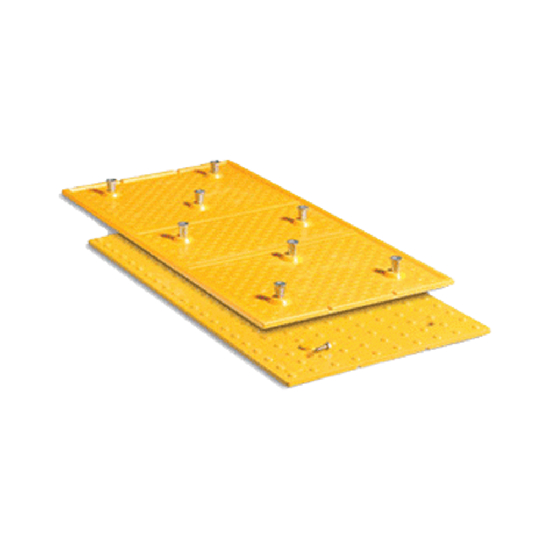

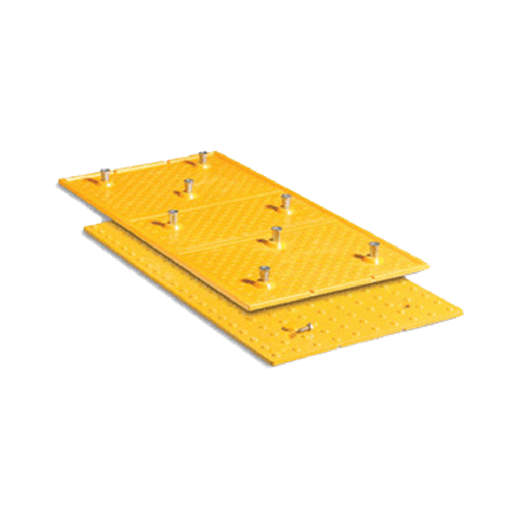

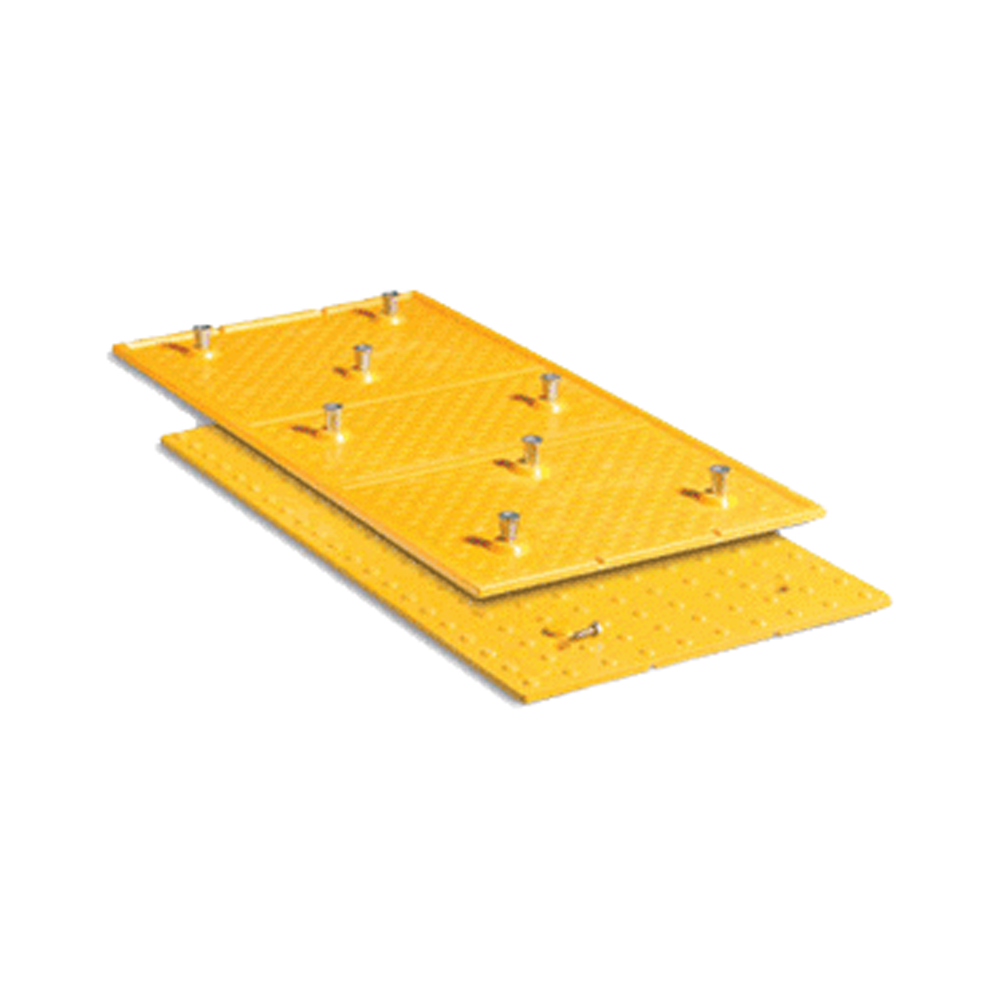

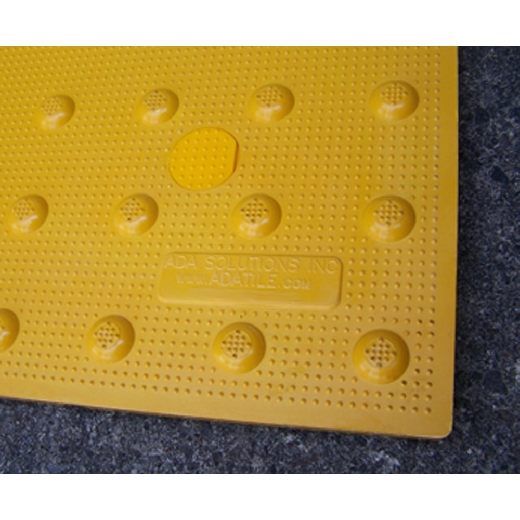

ADA Solutions Truncated Dome 3' x 4' Replaceable Yellow

ADA Solutions introduced this game-changing replaceable system to the market in 2006. Since then, ADA Solutions has installed 18,000,000 square feet of our revolutionary Cast-in-Place Replaceable panels. The Cast-in-Place panel is delivered pre-assembled with an extra heavy-duty anchoring system, specifically designed for easy insertion and embedment into fresh concrete. Our Replaceable cast-in-place detectable warning surface is far superior to any alternative on the market.

FEATURES AND ADVANTAGES:

• Body thickness is 0.25” not including truncated domes (10% greater than the closest alternative).
• Panel weight is 2.25 lbs. per SF (12% more material than the closest alternative).
• Four-Sided Embedment Flange is 0.75” deep and 1.02” thick.
• Utilizes time-tested and proven 0.5” x 1.5” Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
• Inserts are housed in a 0.5” recessed fixture on the back side of the panel.
• This ensures 2” of embedment depth into the concrete (50% deeper than the closest alternative).

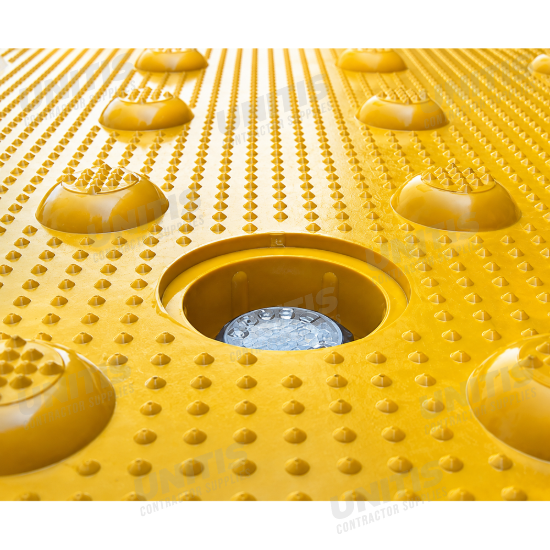

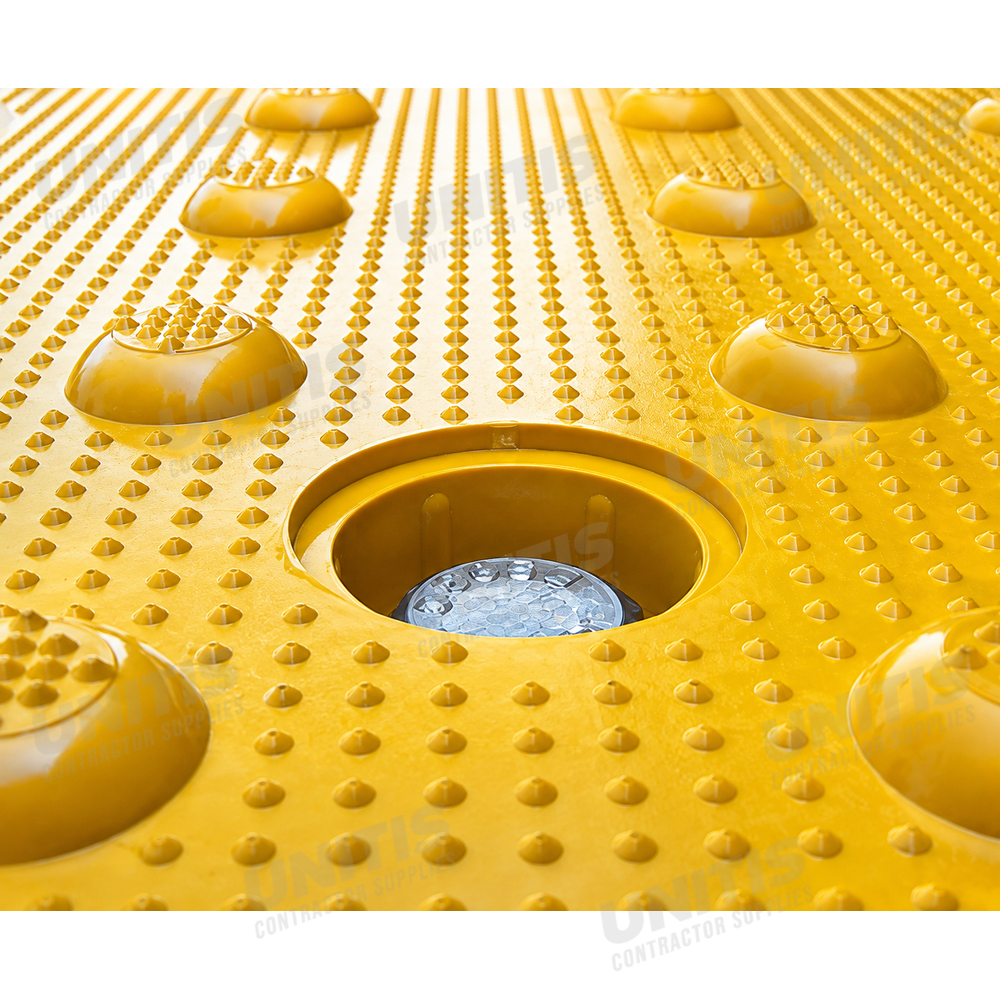

• The Replaceable unit is secured into the anchor with a 0.5” x 1.5” heavy-duty metal bolt located 0.25” into the body of the panel.
• The bolt head is fully covered and protected by structurally fit caps. This is far superior to the open-faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.
