  • Allegro 12 in AC Air Bag Blower with 15' Ducting

Allegro 12 in AC Air Bag Blower with 15' Ducting

Mfr.: Allegro Industries
Item #: I094589
Mfr. #: 9535-12
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $831.91
i h h

Description

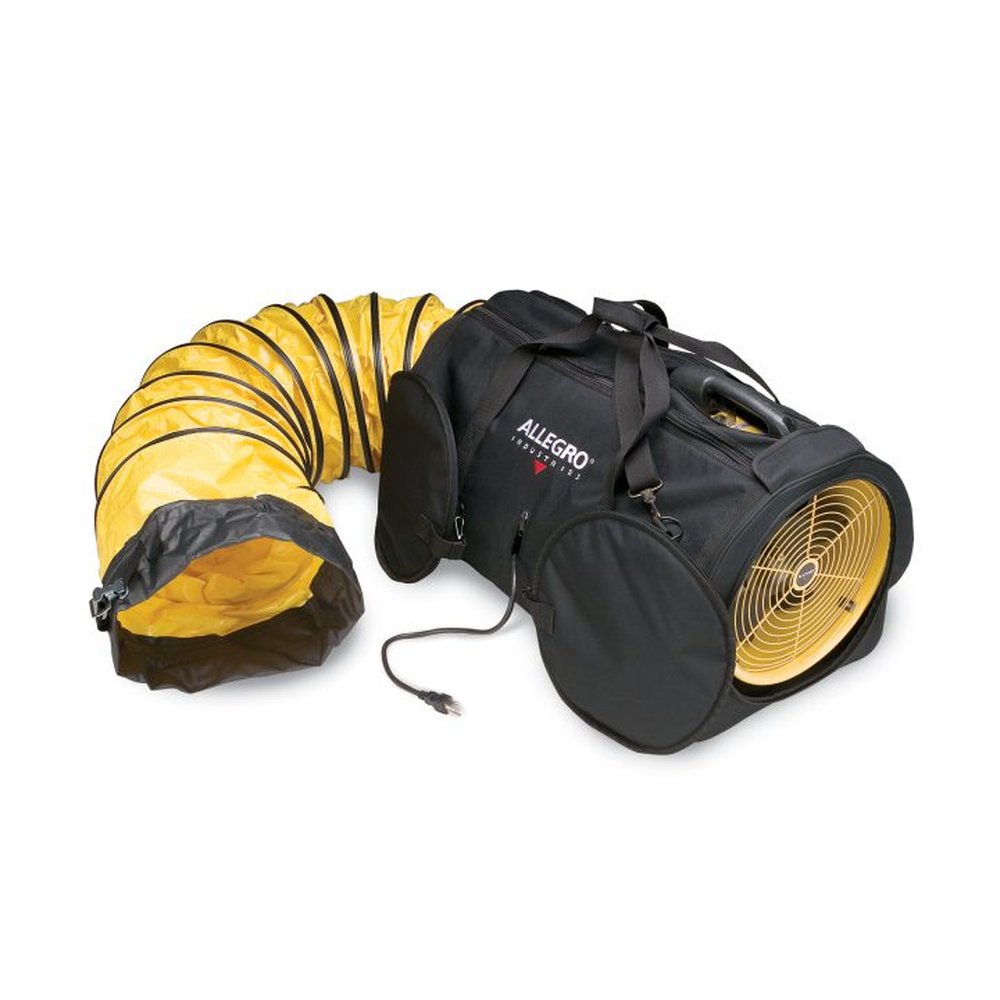

A 12-inch (30.4 cm) axial fan blower system integrated into a heavy-duty storage bag with built-in ducting. The all-in-one unit combines the blower, duct, and storage bag for ease of operation and transportation, certified to CSA Standard C22.2 No 113.
  • All-in-one unit with integrated storage bag and ducting
  • Super quiet operation with 2-speed switch

Features

  • 12-inch (30.4 cm) axial fan blower
  • Lightweight metal construction
  • Super quiet operation
  • Carry handle with molded-in 2-speed switch
  • Steel/powder coated housing and grills
  • Unique bag with openings for plug/cord, inlet, and outlet
  • Durable reinforced polyester bag
  • Easy to carry and store
  • All-in-one unit for ease of operation
  • Duct mounted on blower and stored inside bag
  • Both carrying handle and shoulder strap for transportation
  • 1/2 HP motor
  • UL Recognized, CSA Certified
  • 120V AC, 60 Hz, Single Phase
  • 3.8A current
  • Max RPM: 3300 (loaded at 120V, 60Hz)
  • 6-foot (1.82m) AWG cord
  • 2-speed on/off switch
  • NEMA 5-15P 125V plug
  • Polypropylene seven blade fan
  • Single ply lightweight vinyl/polyester ducting
  • PVC coated 180F (82.2C) temperature resistant
  • Non-collapsible retractable design
  • Yellow with black wear-strip
  • Integrated nylon attachment strap on each end
  • Flow rate: 1840 CFM (3126.18 m3/hr)

Includes

  • 12-inch (30.4 cm) axial fan blower
  • 15-foot (4.75 m) ducting
  • Custom storage bag

Specifications

Product Description12-inch Air Bag Blower System
Part Number9535-12, 9535-12L
StyleAxial Fan
Blower Size12-inch (30.4 cm)
Duct Length15-foot (4.75 m)
CertificationCSA C22.2 No 113
Motor HP1/2 HP
Motor CertificationsUL Recognized, CSA Certified
VoltageHz120V AC, 60 Hz
PhaseSingle Phase
Amps3.8A
Max RPM3300
Cord Length6-foot (1.82m)
Cord TypeAWG
Switch2-speed on/off
Plug TypeNEMA 5-15P 125V
Fan MaterialPolypropylene
Fan BladesSeven blade
Duct MaterialVinyl/polyester PVC coated
Duct Temp Resistance180 degF (82.2 degC)
Duct DesignNon-collapsible retractable
Duct ColorYellow with black wear-strip
Bag MaterialReinforced polyester
Length28-inch (71.1 cm)
Width16-inch (40.6 cm)
Height14-inch (35.5 cm)
Weight35 lbs (15.8 kg)
Flow Rate CFM1840 CFM
Flow Rate m3hr3126.18 m3/hr
*
*
*
