Allegro 12 in Axial AC Plastic Blower with Canister & 25' Ducting

Mfr.: Allegro Industries
Item #: I094583
Mfr. #: 9543-25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1,040.00
i h h

Description

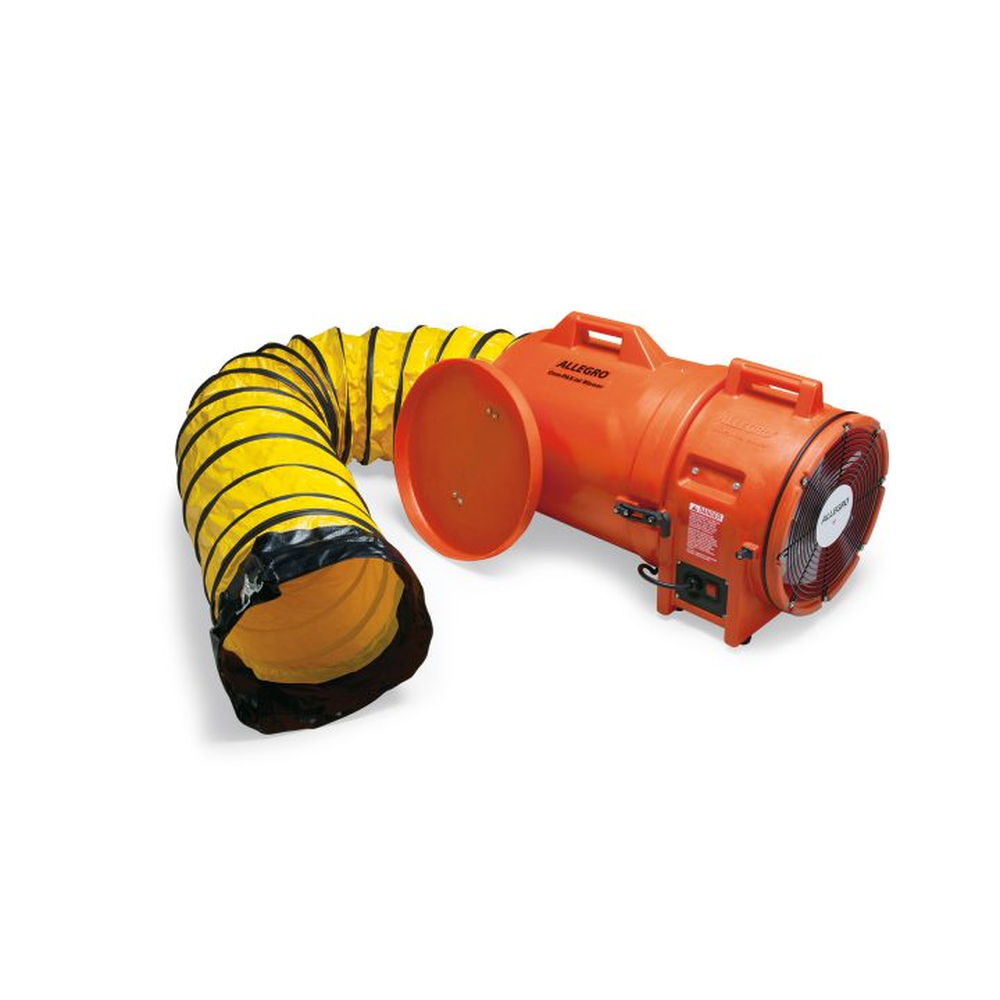

A 12-inch axial AC plastic blower designed for high output in a compact form, available as a complete unit with 25 feet of ducting and a storage canister. The canister attaches to either the intake or output for suction or ventilation applications, and the unit is certified to CSA Standard C22.2 No. 113.
  • High output from a compact axial blower
  • Certified to CSA Standard C22.2 No. 113

Features

  • Polyethylene housing and canister assembly
  • Lightweight, corrosion-, UV-, and chemical-resistant
  • Super quiet operation
  • Safety orange housing color
  • Carry handle molded into blower and canister housing
  • Steel powder coated grill
  • 1 HP motor
  • UL Listed, CSA Certified, CE Certified
  • 115V-230V AC, 50/60 Hz, Single Phase
  • 2800/3400 RPM
  • 11A-5.5A (50 Hz), 10A-5A (60 Hz) amps
  • Built-in On/Off rocker switch
  • 13' AWG cord
  • NEMA 5-15P plug
  • Polypropylene six-blade fan
  • Retractable, non-collapsible ducting design
  • PVC coated vinyl and polyester ducting materials
  • Yellow ducting with black weather strip
  • Integrated nylon attachment strap on ducting
  • Spring steel wire helix in ducting
  • Quick-connect clipping system for tool-free attachment
  • Ducting stores easily within storage canister

Includes

  • 12 inch Axial AC Plastic Blower
  • Storage canister
  • 25' of PVC coated vinyl and polyester ducting

Specifications

Part Number9543-25
Product Type12 inch Axial AC Plastic Blower
StyleWith Canister
Ducting Length25 (7.62 m)
Weight49 lbs (22.2 kg)
Length27 inch (68.5 cm)
Width16 inch (40.6 cm)
Height17 inch (43.1 cm)
Housing MaterialPolyethylene
ColorSafety Orange
Motor HP1 HP
Voltage115V-230V AC
Frequency50/60 Hz
PhaseSingle Phase
RPM2800/3400
Amps 50Hz11A-5.5A
Amps 60Hz10A-5A
Cord Length13 (3.96 m)
Plug TypeNEMA 5-15P
Fan TypePolypropylene six-blade
Ducting MaterialPVC coated vinyl/polyester
Ducting ColorYellow with black strip
Free Air Flow1842 CFM (3129.57 m3/hr)
Flow w One 90 Bend1004 CFM (1705.8 m3/hr)
Flow w Two 90 Bends933 CFM (1585.17 m3/hr)
CertificationsUL, CSA, CE
CSA StandardC22.2 No.113
*
*
*
