Allegro 8 in AC Air Bag Blower with 25' Ducting

Mfr.: Allegro Industries
Item #: I094588
Mfr. #: 9535-08L
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $647.95
i h h

Description

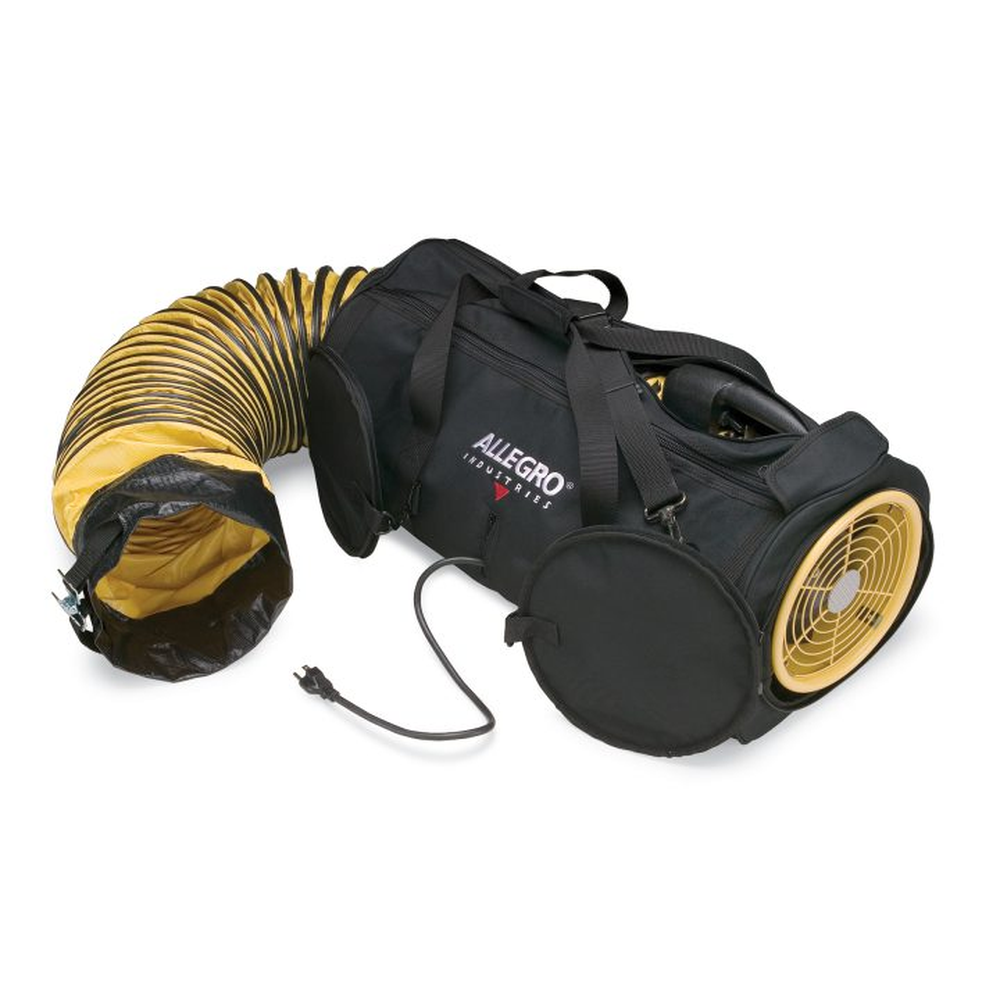

An 8-inch axial fan blower system with 25 feet of ducting built into a heavy-duty polyester storage bag, creating an all-in-one unit for ventilation applications. The system allows blower operation without removing it from the bag and is certified to CSA Standard C22.2 No 113.
  • All-in-one blower system with integrated ducting and storage bag
  • Zippered ends allow operation without removing blower from bag

Features

  • 8-inch (20.3 cm) metal axial blower
  • Super quiet operation
  • Carry handle with molded-in 2-speed switch
  • Steel/powder coated housing and grills
  • Unique bag with openings for plug/cord, inlet and outlet
  • Durable reinforced polyester bag
  • Easy to carry and store
  • All-in-one unit for ease of operation
  • Duct mounted on blower and stored inside bag
  • Both carrying handle and shoulder strap for transportation
  • Polypropylene seven blade fan
  • Single-ply lightweight vinyl/polyester PVC coated ducting
  • 180F (82.2C) temperature resistant ducting
  • Non-collapsible retractable duct design
  • Yellow duct with black wear-strip
  • Integrated nylon attachment strap on duct end
  • Certified to CSA Standard C22.2 No 113
  • UL Recognized motor
  • CSA Certified motor

Includes

  • 8-inch AC blower
  • 25-foot ducting
  • Heavy-duty polyester storage bag

Specifications

Part Number9535-08L
StyleAxial Fan
Motor HP1/4 HP
VoltageHz115V AC, 60 Hz
PhaseSingle Phase
Max RPM3300 (loaded)
Amps1.4A
Cord Length6 (1.82 m)
Switch2-speed on/off
Plug TypeNEMA 5-15P 125V
Length27 inch (68.5 cm)
Width15 inch (38.1 cm)
Height12 inch (30.4 cm)
Weight28 lbs (12.7 kg)
Flow Rate760 CFM (1291.2 m3/hr)
Duct Length25 (7.62 m)
Duct MaterialVinyl/polyester PVC coated
Duct ColorYellow with black strip
Bag MaterialReinforced polyester
Fan MaterialPolypropylene
Fan Blades7 blades
Housing MaterialSteel/powder coated
Temp Resistance180 degF (82.2 degC)
*
*
*
