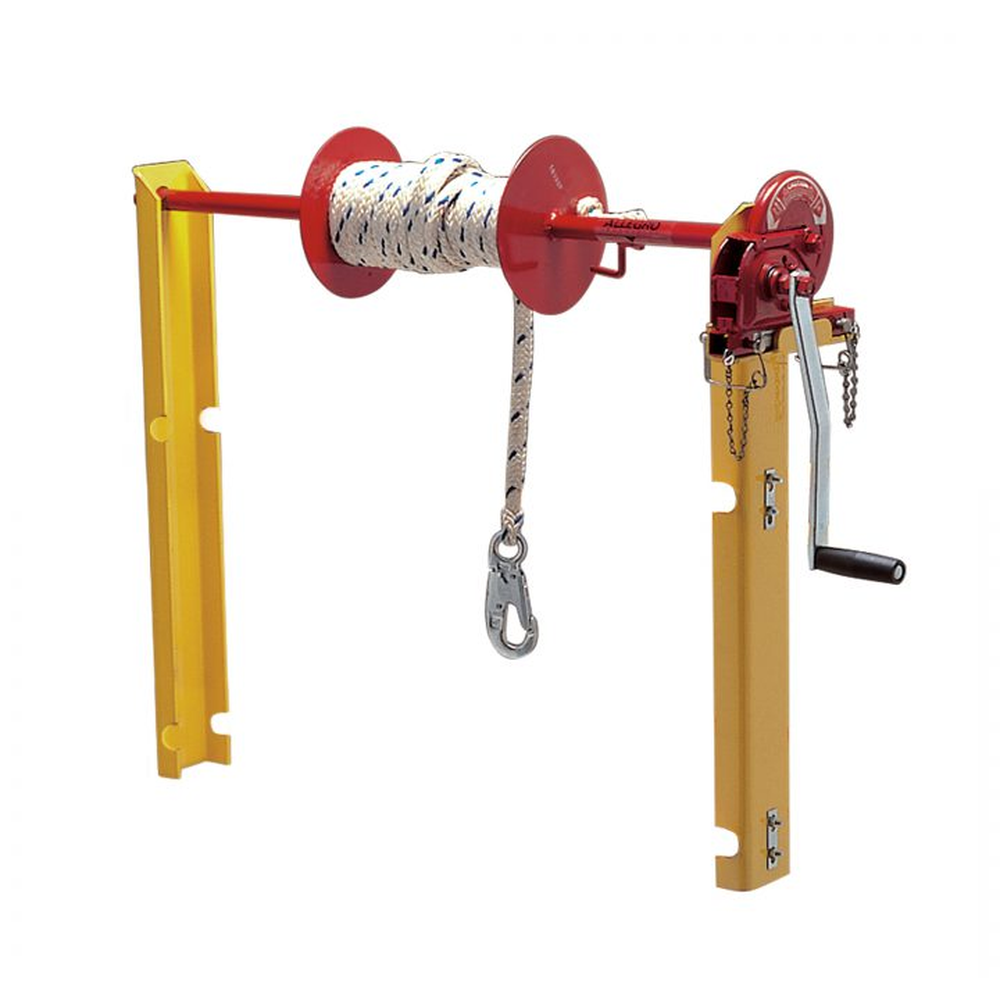

Allegro Guardrail Winch

Mfr.: Allegro Industries
Item #: I094563
Mfr. #: 9401-10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1,347.29
i h h

Description

A hand-operated winch designed for raising and lowering equipment into confined spaces. It is lightweight, portable, and mounts easily on the PN 9401 Manhole Guardrail. Not for use as a personal retrieval device.
  • 300 lbs workload limit with 3:1 safety factor
  • Double disc automatic load lock braking system

Features

  • 300 lbs. (136.07 kg) workload limit
  • 3:1 safety factor
  • 3 inch (7.6 cm) drum center
  • 1 inch (2.5 cm) diameter center pipe 36 inch (91.4 cm) in length
  • Two 7 inch (17.7 cm) discs (11 inch (27.9 cm) apart) to hold rope in place
  • 1/2 inch (1.27 cm) holes (2 inch (5.0 cm) apart) accommodates 3/8 inch x 21/4 inch (0.95 cm x 5.7 cm) Loxall pins
  • Gear covers
  • Bronze bushings
  • Two independent ratchet systems for additional load security
  • Double disc automatic load lock braking system to assure positive load control
  • 9/16 inch (1.42 cm) Safety snap design
  • 35' (10.66 m) rope length
  • 1/2 inch (1.27 cm) Dura-Plex braided rope material
  • High quality steel leg extensions
  • Painted Yellow leg extensions

Includes

  • Crank
  • Snap Hook
  • Rope
  • Leg Extensions

Specifications

Workload Limit300 lbs (136.07 kg)
Safety Factor3:1
Drum Center3 inch (7.6 cm)
Center Pipe1 inch dia x 36 inch long
DiscsTwo 7 inch discs, 11 inch apart
Hole Size1/2 inch holes, 2 inch apart
Pin Accommodation3/8 inch x 21/4 inch Loxall pins
Snap Hook Size9/16 inch (1.42 cm)
Rope Length35 (10.66 m)
Rope Material1/2 inch Dura-Plex braided
Leg MaterialHigh quality steel
Leg ColorPainted Yellow
Width43 inch (109.2 cm)
Depth9 1/4 inch (23.5 cm)
Height32 inch (81.3 cm)
Weight39 lbs (17.6 kg)
*
*
*
