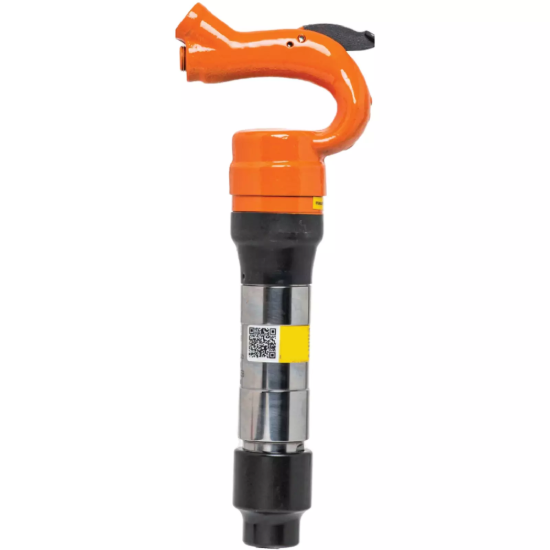

American Pneumatic Tool APT M653 Chipping Hammer

Mfr.: American Pneumatic Tool APT
Item #: I090426
Mfr. #: 5300-04
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $895.67
i h h

Description

The American Pneumatic Tool (APT) M653 Chipping Hammer is a robust and dependable industrial tool engineered for precision work and heavy-duty cleanup. This model is specifically built to handle scaling, chiseling, form stripping, and light concrete demolition, while also excelling at removing concrete build-up from the inside of mixers. Featuring a powerful 3 inch stroke and a pistol grip handle with an outside trigger, it provides operators with superior control and reliable performance in demanding environments.
  • New drop-forged steel handle and collar for maximum durability.
  • Deep case hardened alloy steel cylinder ensures a long tool life.

Features

  • Flapper valve design allows dirt and debris to pass through without stopping the tool.
  • Equipped with an adjustable exhaust deflector to direct air away from the user.
  • Traditional PG-style (Pistol Grip) handle with an outside trigger for improved ergonomics.
  • Interchangeable bushing styles (configured for .680 Round on this model).

Includes

  • Standard Oval Collar Retainer (Part # 7022)
  • Locking Spring (Part # 1942)
  • 6 ft Whip Hose Assembly (Part # 18832)
Products specifications
Model Identifier M653 (5300-04)
Bore 1-1/8 inch
Stroke 3 inch
Blows Per Minute 1,650 BPM
Air Consumption 33 - 35 CFM @ 90 psi
Weight 14 lbs
Length 15-1/4 inch
Air Inlet Size 7/8-24 Female NPT
Bushing Type .680 Round
Handle Style Pistol Grip (Outside Trigger)
Hose Size 1/2 inch
*
*
*
