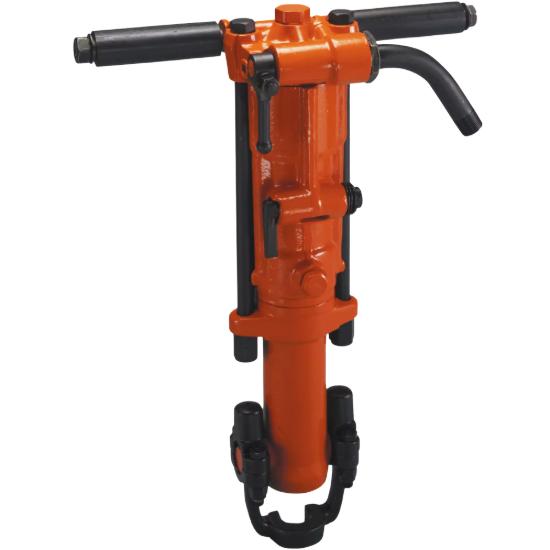

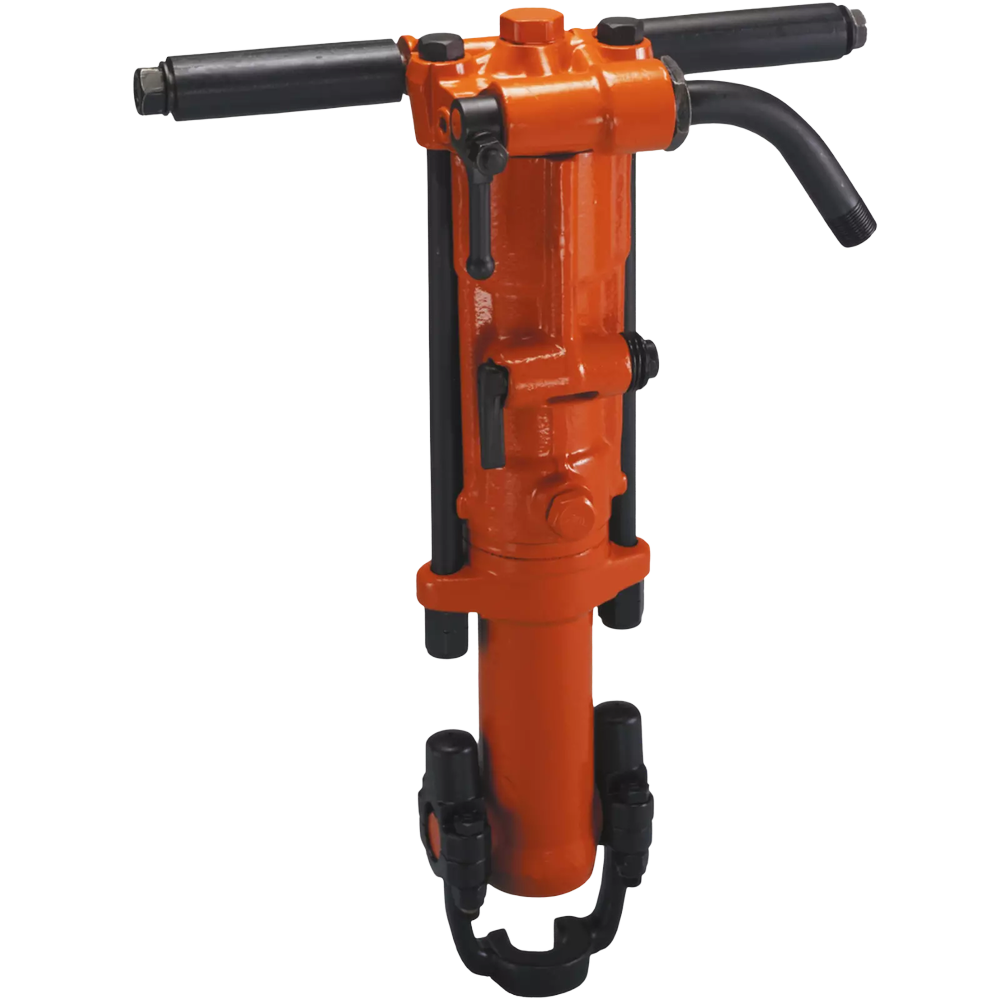

APT M155 Rock Drill

Mfr.: American Pneumatic Tool APT
Item #: I090427
Mfr. #: 5233
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $3,283.06
i h h

Description

The APT M155 Rock Drill is a heavy-duty, 60 lb class pneumatic tool engineered for high-performance drilling in demanding construction and industrial environments. This rugged drill is specifically designed to power through granite, hard-faced rock, and quarry materials, making it a top choice for secondary blasting and utility maintenance. Its balanced design ensures maximum efficiency during deep hole drilling while maintaining operator control and tool longevity.
  • Three-speed throttle control for versatile drilling power.
  • Built-in automatic oiler for consistent internal lubrication.

Features

  • Equipped with a dust blowout feature to clear debris during deep hole operations.
  • Features a replaceable piston stem bearing and rubber handle grips for improved durability and comfort.
  • Designed with counterclockwise rotation and a 1 inch x 4-1/4 inch hex chuck for secure bit retention.

Includes

  • M155 Rock Drill Power Tool
  • 3/4 inch NPT Male Swivel Hose Connector
  • Latch-type Retainer
Products specifications
Part Number 5233
Model M155
Type Dry
Chuck Size 1 inch x 4-1/4 inch Hex
Bore Diameter 2-5/8 inch
Stroke 3 inch
Blows Per Minute 2,100 BPM
Air Consumption 110-120 CFM @ 90 PSI
Weight 61 lbs
Length 22-3/8 inch
Air Inlet 3/4 inch NPT Male
*
*
*
