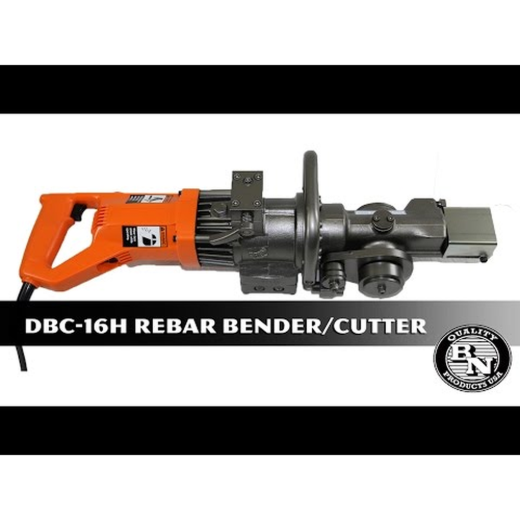

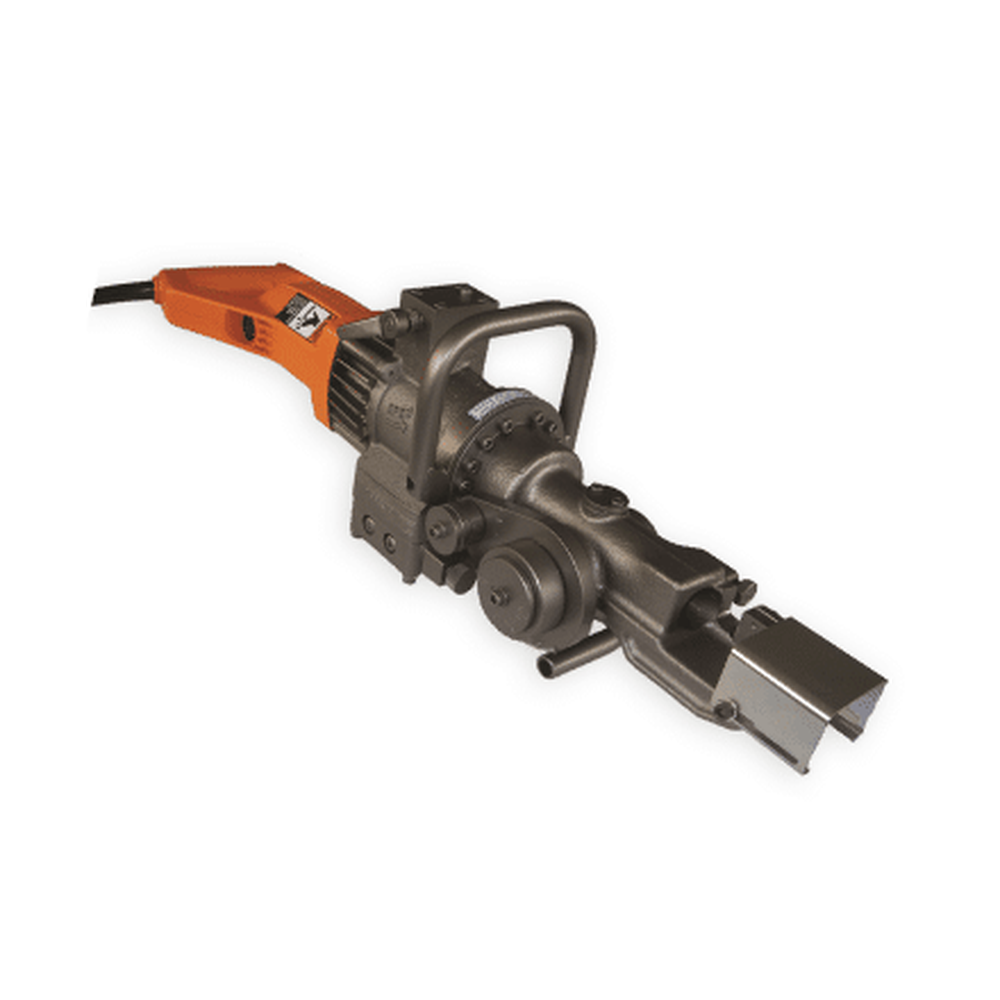

DBC-16H Combination Rebar Bender/Cutter

Mfr.: BN Products
Item #: I021342
Mfr. #: DBC-16H
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $4,376.38
i h h

Description

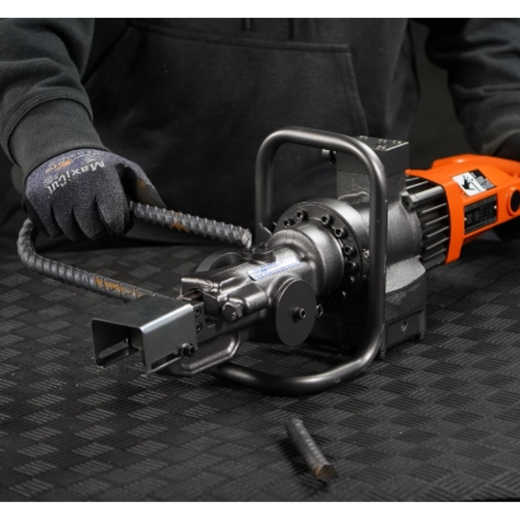

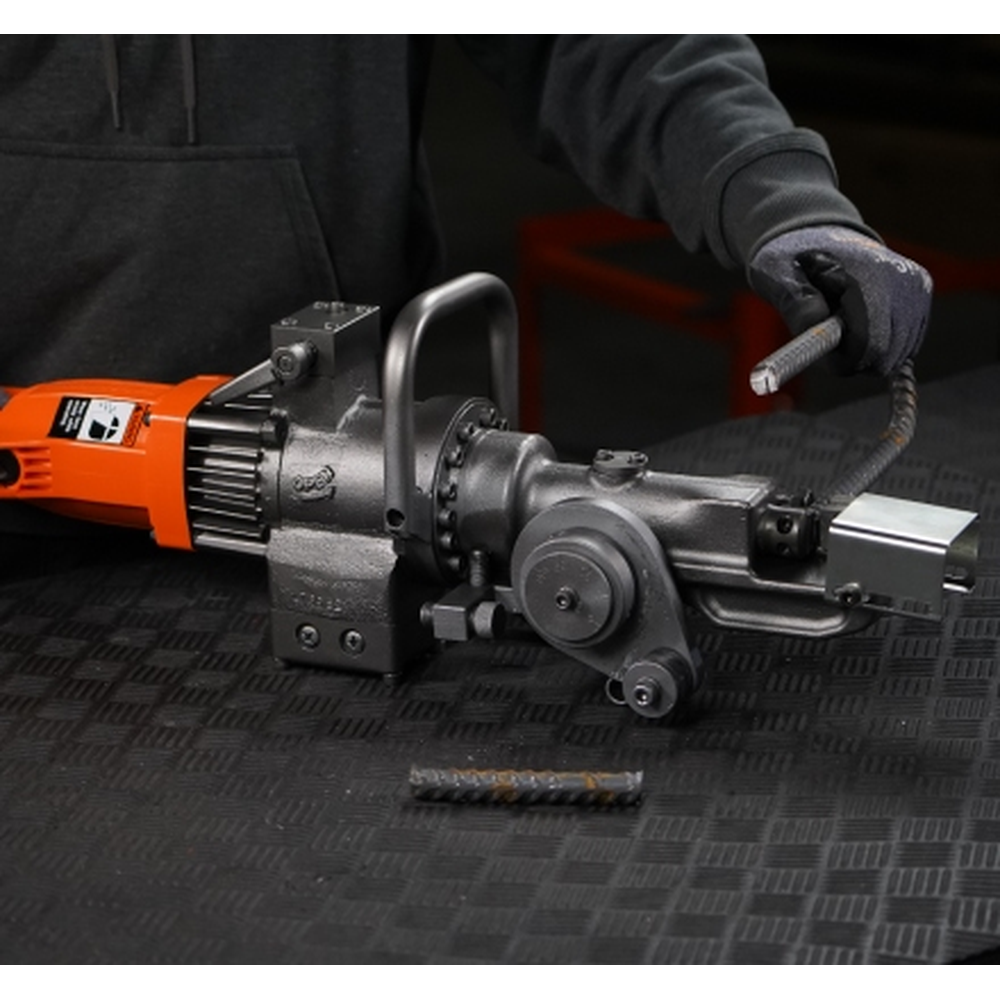

The DBC-16H is a portable, high-performance combination tool designed for both job-site cutting and bending of rebar up to #5 (5/8) Grade 60. Its unique electric/hydraulic design allows operators to work with in-place rebar protruding from walls and columns or perform stationary fabrication on a table. Recognized as one of the most innovative products at the World of Concrete Exposition, this tool significantly increases productivity by eliminating the need for separate machines or attachment changes.
  • Dual-Function Design: Seamlessly transitions between cutting and bending without changing attachments.
  • Heavy-Duty Capacity: Built for #5 (16mm) Grade 60 reinforcing steel with an electric/hydraulic system.

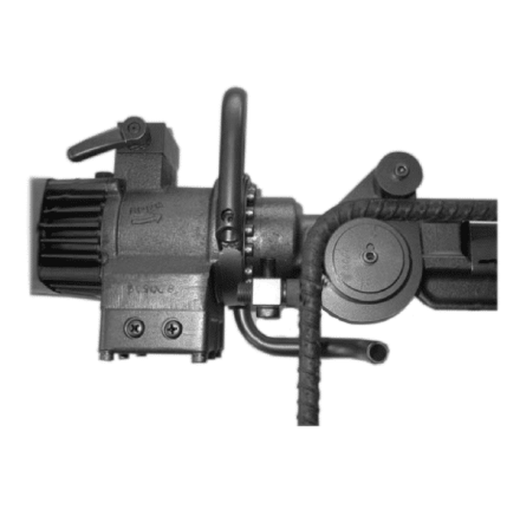

  • Speed and Precision: Delivers a 3-second cut and a 180-degree bend in just 7 seconds.

Features

  • Lightweight 40lb frame ensures excellent mobility and reduces operator fatigue on the job site.
  • Precision balanced armature and double-insulated motor provide long-lasting reliability and safety.
  • Integrated pressure relief valve allows the piston to be retracted at any point during operation.
  • Adjustable stopper bolts maintain rebar at a perfect right angle for consistent cuts and bends.

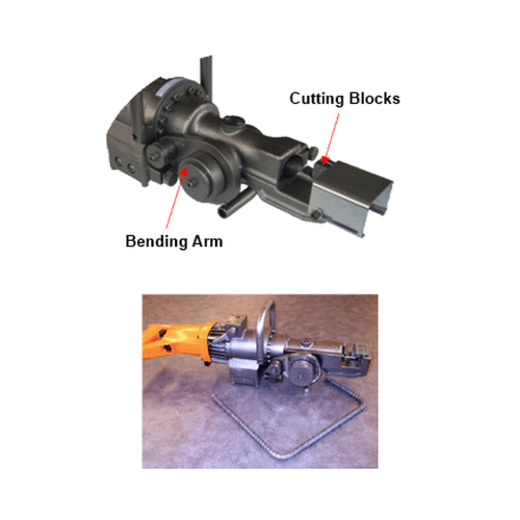

  • Long-life alloy cutting blocks provide four-sided use for extended service intervals.

Includes

  • Steel Carrying Case
  • Tool Kit
  • Hydraulic Oil
  • Operations Manual
  • One-Year Parts and Labor Warranty
Products specifications
Bending Speed 7 Seconds (180 degrees)
Bending Angle Up to 180 degrees
Power Supply 115V 50/60 Hz - 10 Amps
Model Number DBC-16H
Rebar Capacity #5 (5/8 inch) 16mm Grade 60
Cutting Speed 3 Seconds
Center Roller 2.42 inch (62 mm) Diameter
Bending Clearance 4.5 inch (115 mm) from surface
Cutting Clearance 1-3/4 inch (44.5 mm) from surface
Motor Output 1,050 Watts
Tool Weight 40 lbs (18.2 kg)
Tool Dimensions 25-1/8 inch L x 6-3/8 inch W x 8-5/8 inch H
*
*
*
