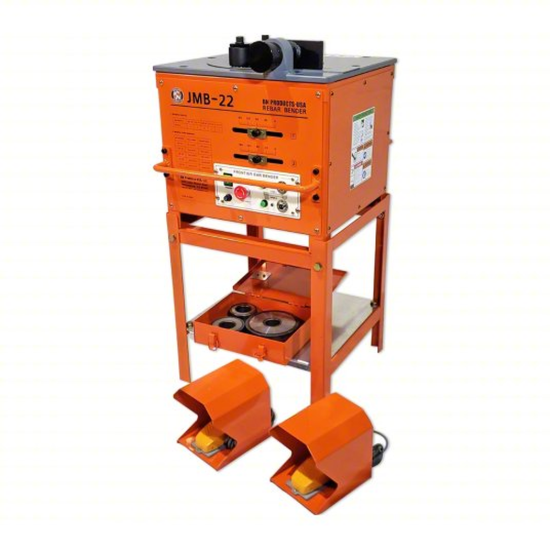

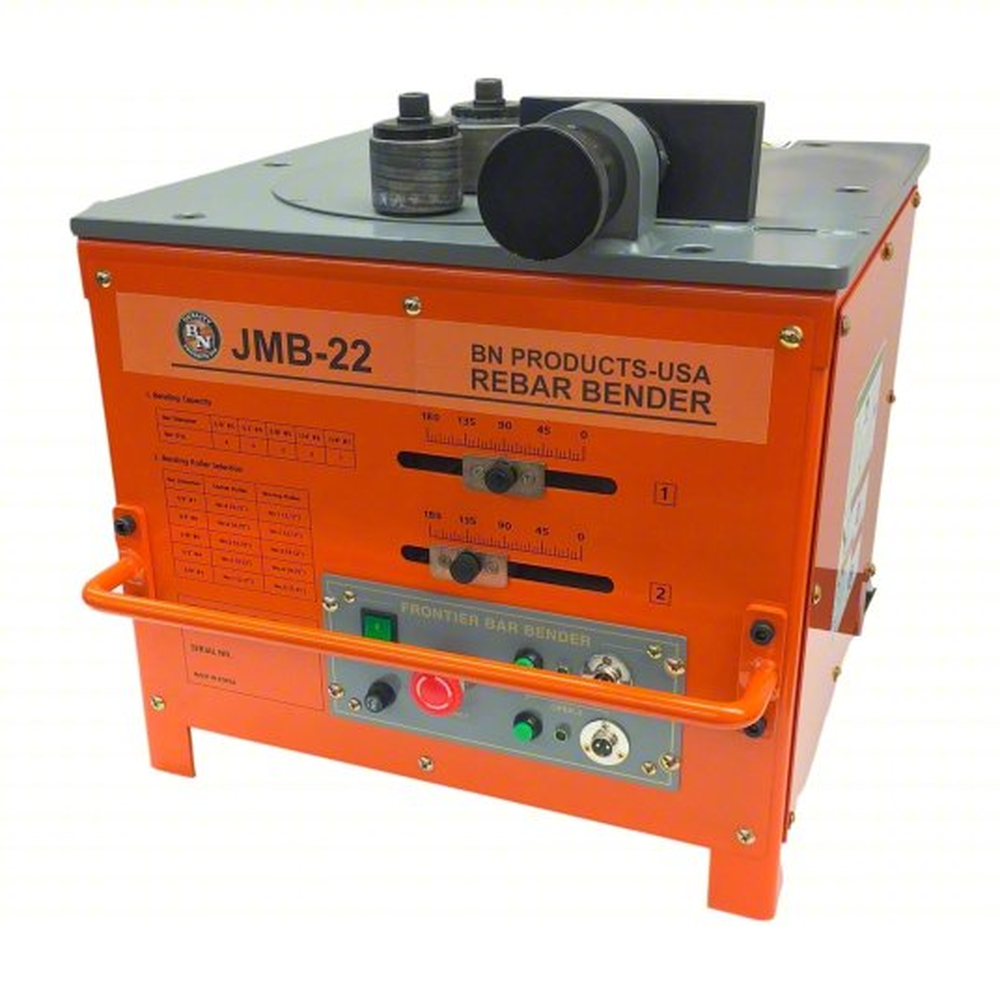

BN Products #7 (7/8 inch) Table-Style Rebar Bender W/ Foot Pedal

Mfr.: BN Products
Item #: I052481
Mfr. #: JMB-22
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $4,190.30
i h h

Description

The JMB-22 Rebar Bender is a heavy-duty table-top tool designed for high-performance bending in both shop and job site environments. It effortlessly handles Grade 60 rebar up to #7 (7/8 inch) diameter, providing a versatile workhorse for professional contractors. With its dual foot pedal controls and preset angle settings, this machine significantly reduces man-hours and labor costs. The unit is built with a powerful 2.2 kW motor to ensure consistent, precise bends for a wide range of construction projects.
  • Heavy-Duty Construction
  • Dual Foot Pedal Control
  • Multi-Bar Bending Capacity
  • Preset Angle Lock

Features

  • Accurately bends any angle from 0 to 180 degrees using a dial-type angle selector.
  • Capable of bending multiple smaller bars simultaneously, such as four #3 or three #4 bars.
  • Equipped with an emergency stop switch and side lifting handles for enhanced safety and mobility.
  • Fast operation speed completes a 180-degree bend in approximately 6 to 9 seconds.

Includes

  • Heavy-duty bender stand
  • Complete bending roller set (5-6 pieces)
  • Steel carrying case for rollers
  • Two (2) standard foot pedal switches
  • Maintenance tool kit
Products specifications
Motor Power 2.2 kW
Amperage 12 - 15 Amps
Dimensions 21.5 inch x 18.4 inch x 18.3 inch
Weight 219 lbs (99.4 kg)
Bending Angle 0 - 180 Degrees
Max Rebar Size #7 (7/8 inch) / 22mm
Voltage 115V 50/60Hz
Bending Speed 6 - 9 Seconds
*
*
*
