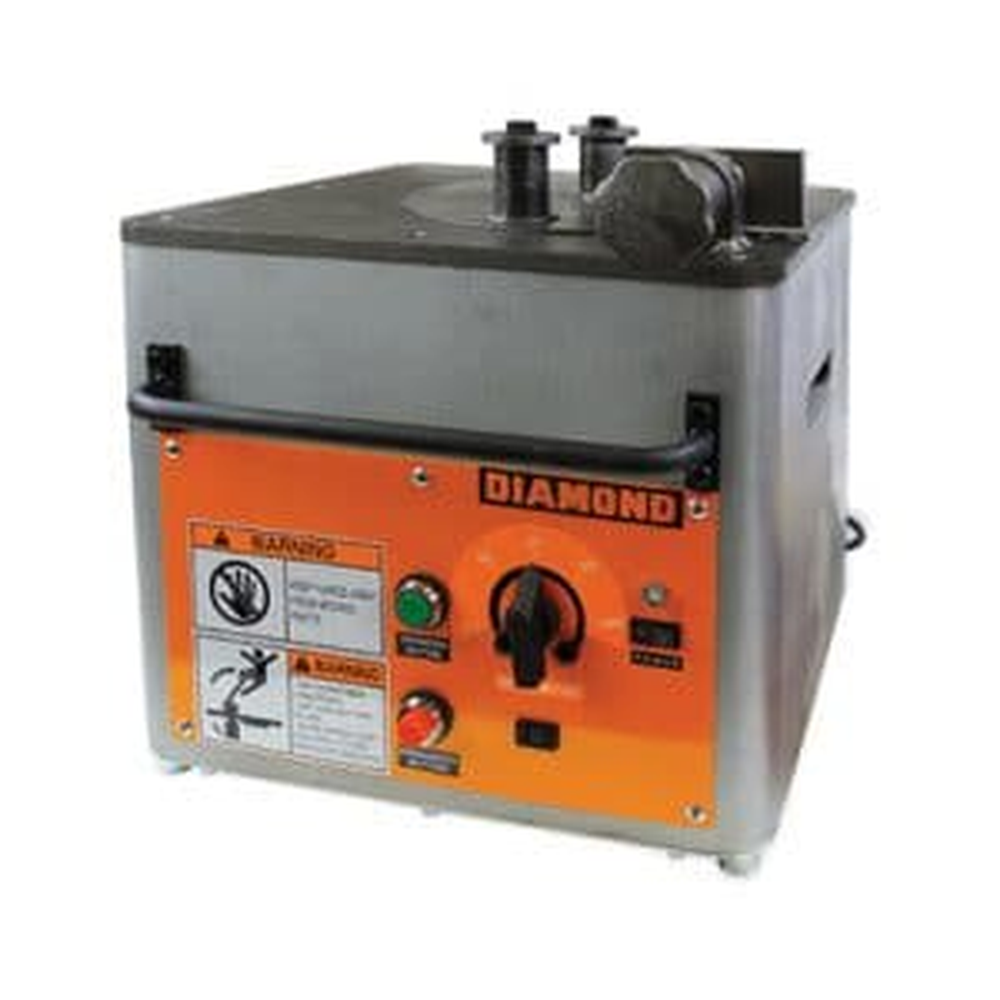

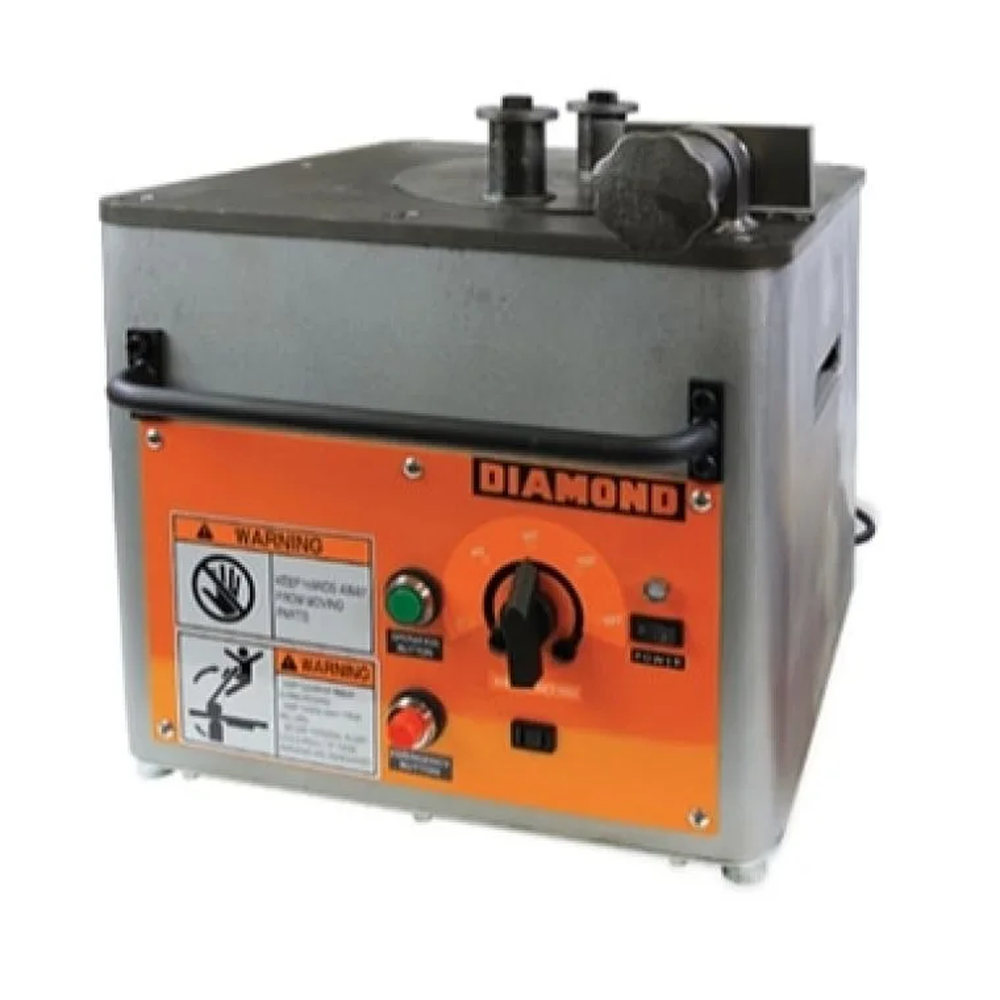

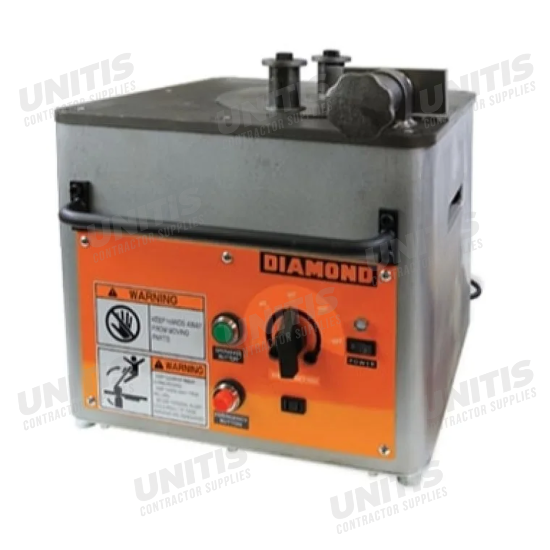

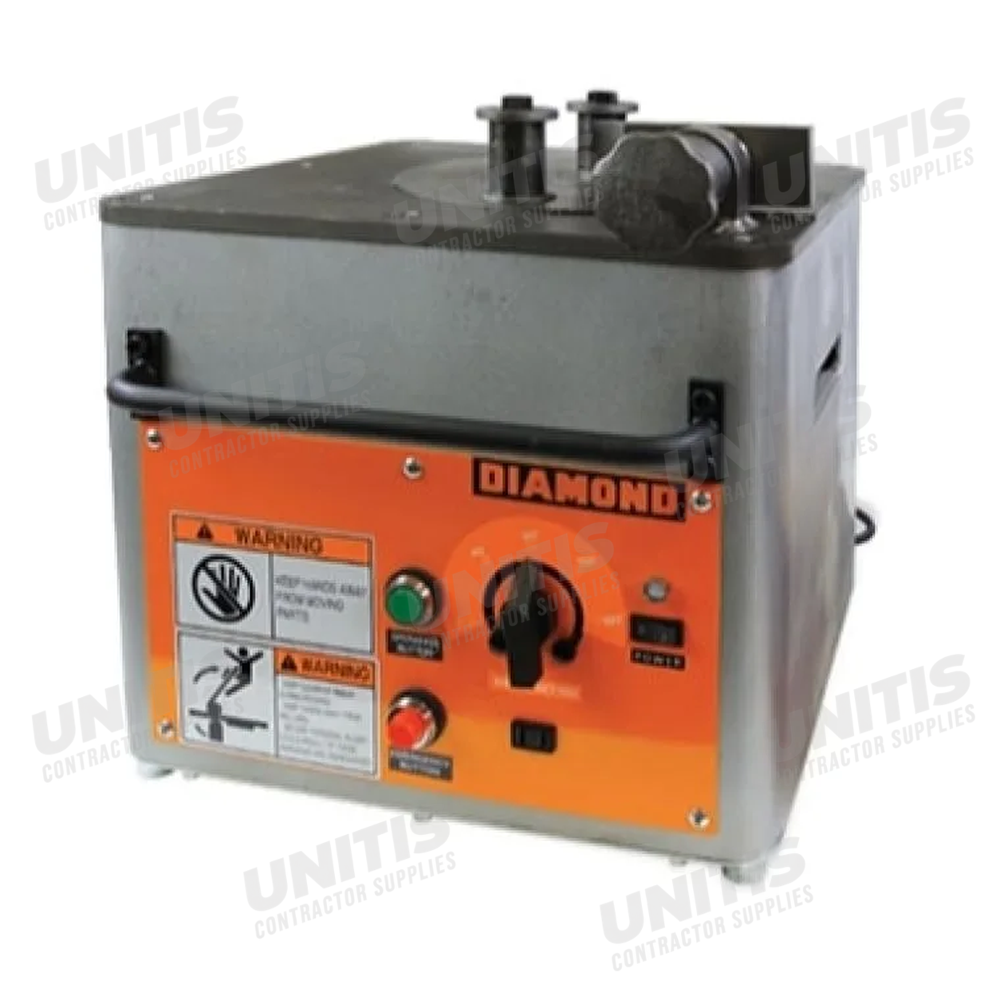

BN Products DBD-20M Mini 3/4 inch Portable Rebar Bender

Mfr.: BN Products
Item #: I077061
Mfr. #: DBD-20M
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $5,929.62
i h h

Description

The DBD-20M is a heavy-duty portable rebar bender designed for precision and efficiency on job sites or in shop environments. It can effortlessly bend Grade 60 rebar up to 3/4' (#6) diameter, operating on standard 115V power or a portable 2000W generator. The tool features a dial-type angle selector that allows for accurate adjustments between 0 and 180 degrees, paired with dual angle locks for consistent repeatability. Equipped with side handles and a foot pedal for hands-free operation, this bender is a reliable solution for increasing productivity in concrete reinforcement tasks.
  • Heavy-duty construction for maximum tool life
  • Pre-set angle locking dial for repeat bends

Features

  • Achieves 180-degree bends in approximately 6-7 seconds
  • Integrated emergency stop switch and two side lifting handles for safety and portability
  • Capable of bending multiple bars simultaneously: (3) #3, (2) #4 or #5, or (1) #6 rebar
  • Standard foot pedal control switch allows for hands-free operation during bending

Includes

  • DBD-20M Rebar Bender Unit
  • Bending Roller Set (6 pieces)
  • Steel Carrying Case for Rollers
  • Standard Foot Pedal
  • Tool Kit and Operator Manual
Products specifications
Max Bending Capacity 3/4 inch (#6) Grade 60 Rebar
Bending Angle 0 to 180 Degrees
Bending Speed 6-7 Seconds (for 180 deg)
Power Supply 115V, 50/60 Hz
AmperageWattage 11 Amps / 1050 Watts
Tool Weight 148.0 lbs (67 kg)
Dimensions (LxWxH) 16.4 inch x 18 inch x 16.2 inch
Warranty 1-Year Parts and Labor
*
*
*
