Combo Guard Curb & Grate Inlet Protection

Mfr.: Ertec Pro Wattle
Item #: I090703
Mfr. #: CG 48x22
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $146.20
i h h

Description

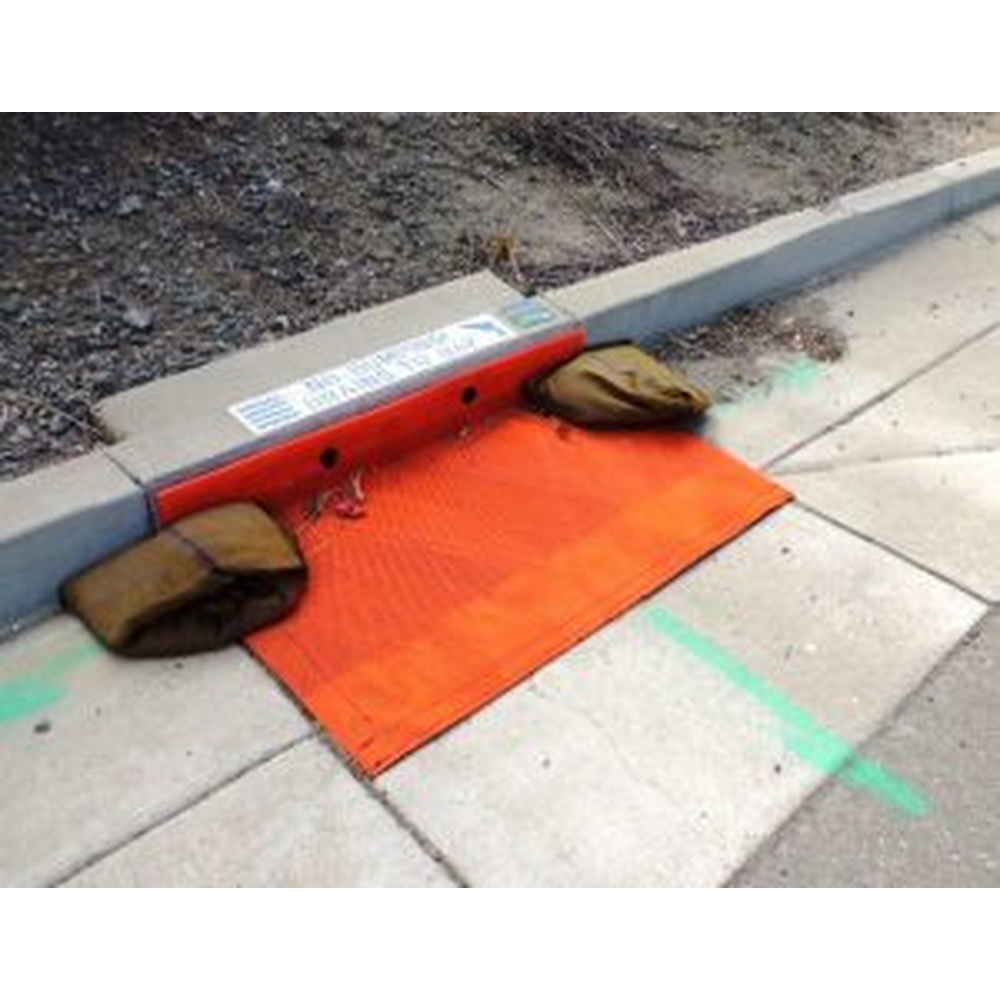

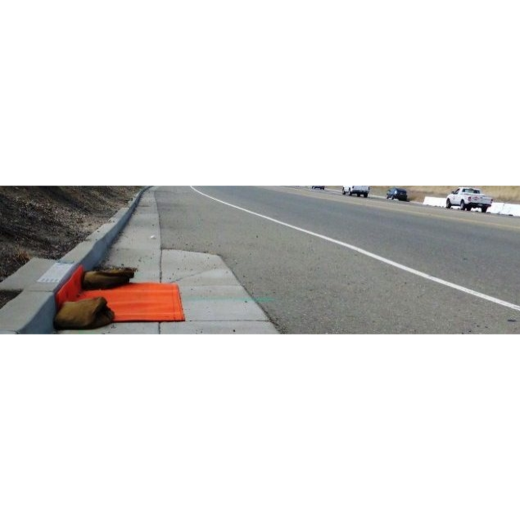

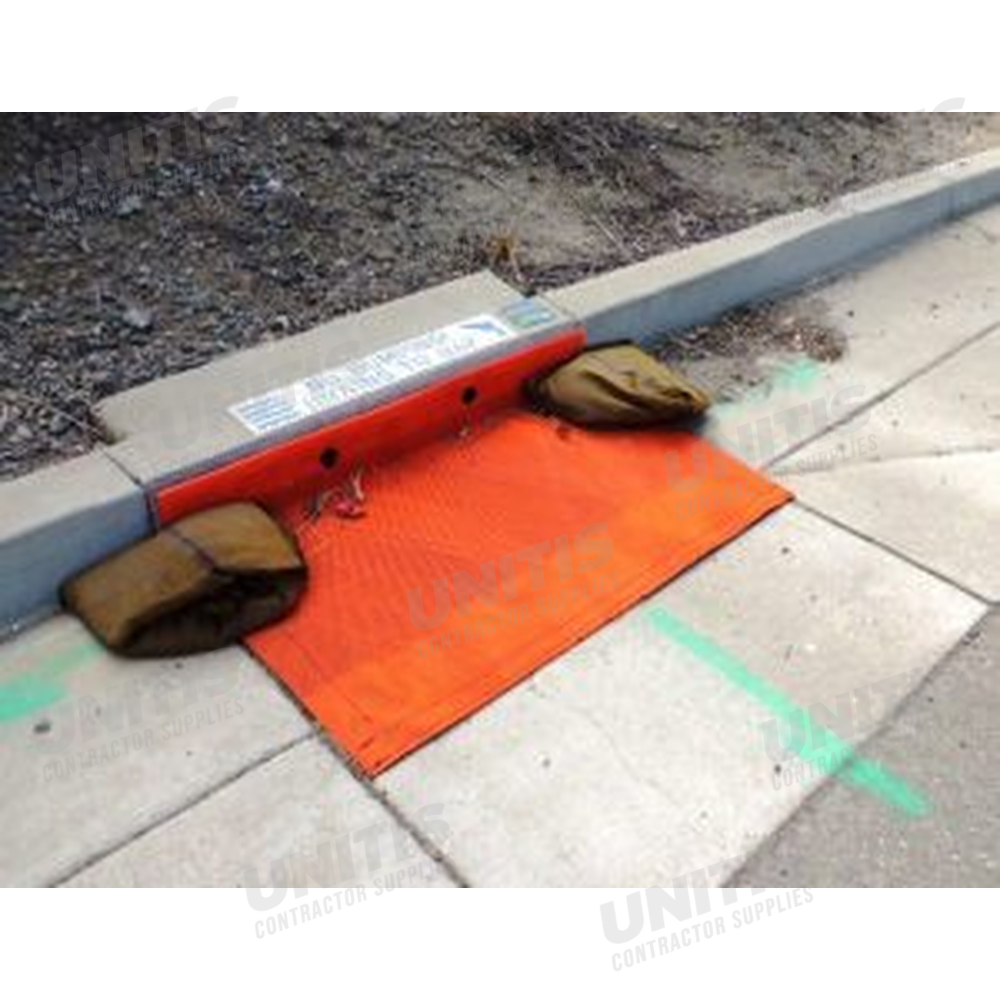

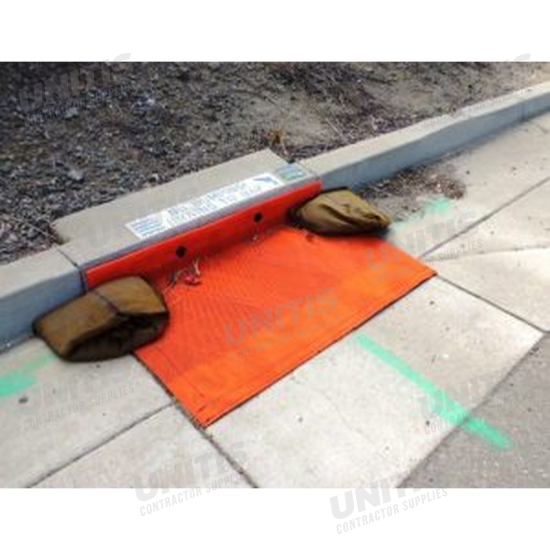

Combo Guard (CG) is a patented, low cost, four layer system designed to reduce sedimentation into combination curb & grate storm drain inlets. CG is engineered to balance the critical tradeoff between allowing water to flow off the street for safety and capturing sediment. The integrated filter has a vertical height of 2 inches to allow bypass in high flow conditions. During installation, the grate does not need to be removed, reducing installer back and foot injuries.

Features

  • Four layer system filters storm water above ground for easy inspection
  • Highly resistant to traffic and UV stable for long life
  • Made from recycled content and is fully reusable
  • Fast and easy installation without grate removal
  • 100% American content and labor
Products specifications
Grate Size Compatibility Fits 36 inchx18 inch, 36 inchx20 inch, 40 inchx17
Unit Weight (average lbs) 3 - 5
Functional Life (min years) 4+
Vertical Height (average inches) 6.0
Filter Freeboard Height (nominal inches) 2.0
Filter - AOS (microns) 425
Filter Flow Rate (ASTM D-4491) 145 gpm/ft2
Tensile Yield (ASTM D-638) 1800 - 2800 lb/in2
Ultimate Tensile Strength (ASTM D-638) 2000 - 2800 lb/in2
Service Temperature (deg F) -30 to 160
Reusable YES
Easy to Clean YES
Recycled Content Yes
Seals to Pavement YES
High-Flow Bypass YES
*
*
*
