Combo Guard Curb & Grate Inlet Protection

Mfr.: Ertec Pro Wattle
Item #: I090702
Mfr. #: CG 48x18.5
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $141.48
i h h

Description

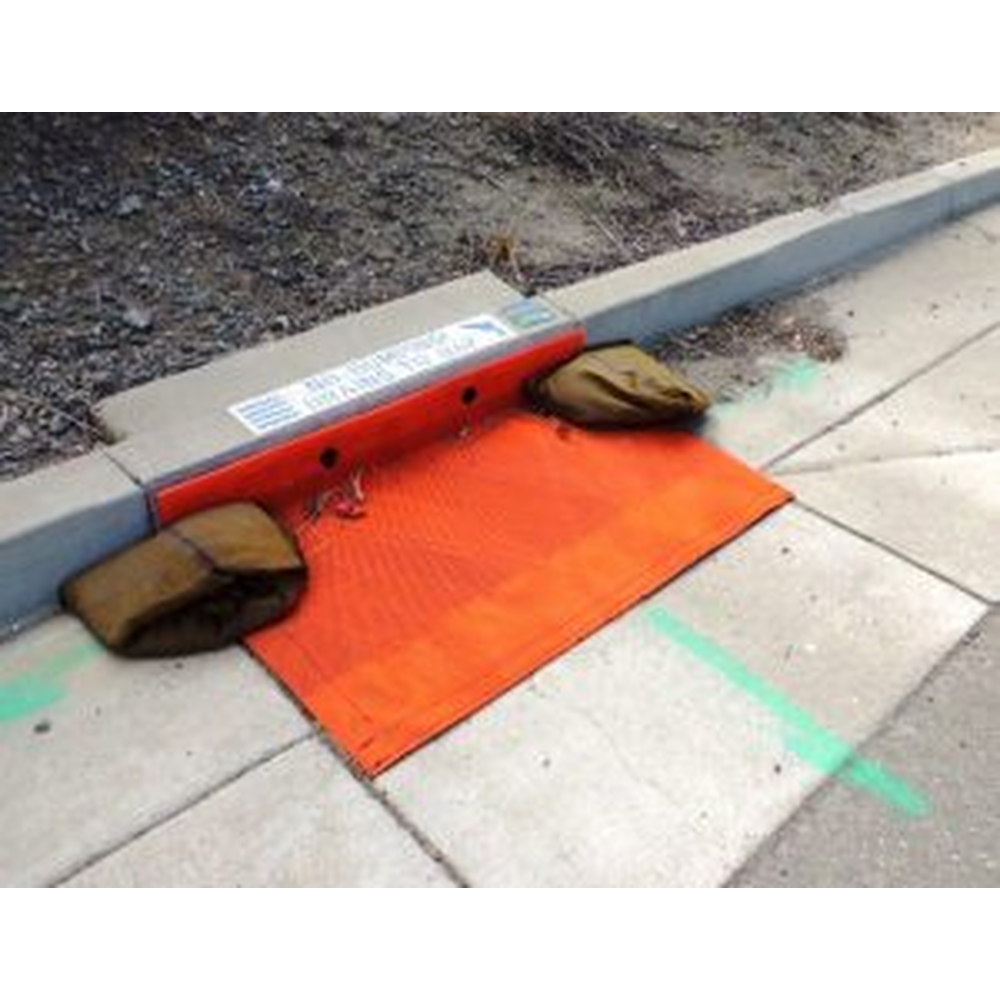

Combo Guard (CG) is a patented, low cost, four layer system designed to reduce sedimentation into combination curb & grate storm drain inlets. It is engineered to balance the critical tradeoff between allowing water to flow off the street for safety and capturing sediment. The system filters storm water above the ground for easy visual inspection and maintenance while featuring a 2-inch vertical height to allow bypass in high flow conditions. During installation, the grate does not need to be removed, reducing the risk of installer back and foot injuries.

Features

  • Fast installation with no grate removal required
  • Significantly lower costs and one installation per project
  • Long life, UV stable, and resistant to traffic
  • Made from recycled content and fully reusable
  • Lightweight and easy to transport, inspect, and maintain
Products specifications
Model Number CG 48x18.5
Grate Compatibility Fits up to 36 inchx18 inch Grate
Unit weight (average lbs) 3 -5
Functional life (min years) 4+
Vertical Height (average inches) 6.0
Filter freeboard height nominal (in) 2.0
Reusable YES
Easy to Clean YES
Bypass for high flow conditions YES
Seals to pavement to control underflow YES
Filter AOS (microns) - nominal 425
Filter Flow Rate ASTM D-4491 (gpmft2) 145
Tensile Yield ASTM D-638 (lbin2) 1800 -2800
Ultimate Tensile Strength ASTM D-638 (lbin2) 2000 -2800
Service temperature (deg F) -30 to 160
Anchoring Method Gravel Bags or Zip Ties
*
*
*
