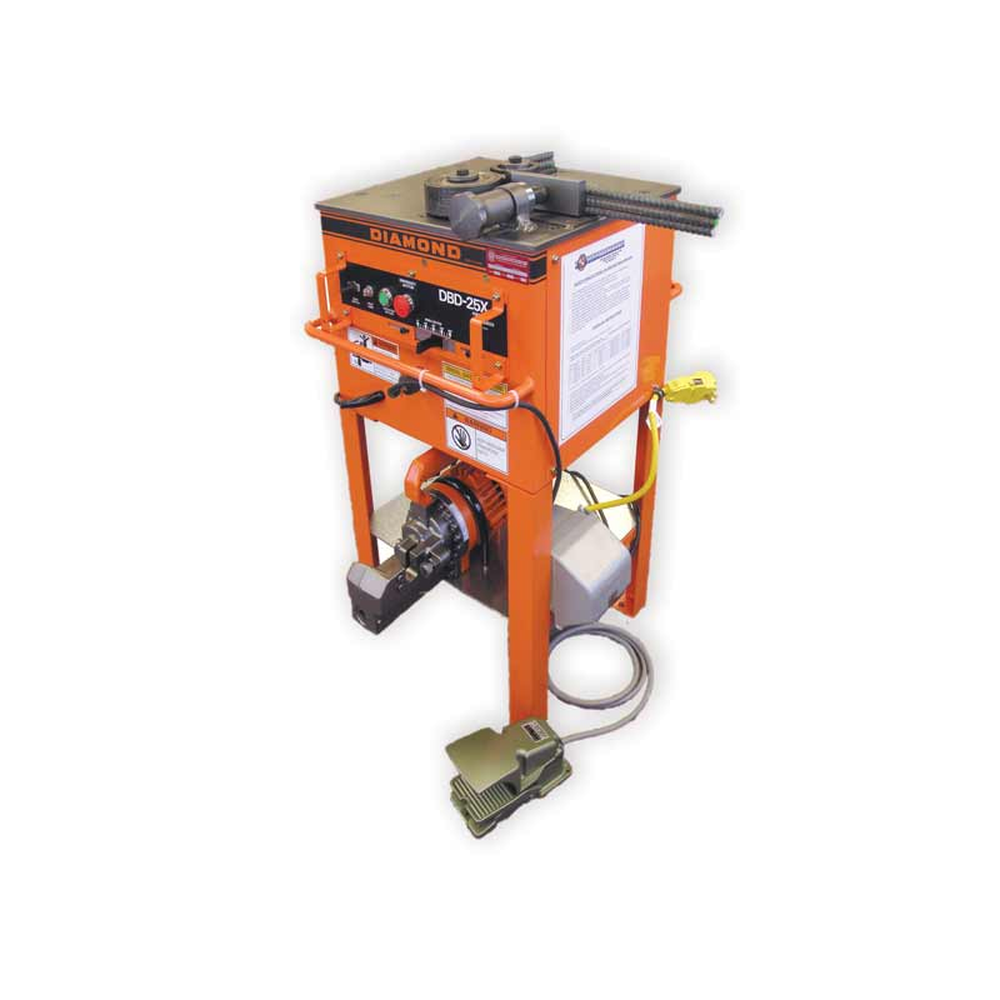

DBC-2520 Combination Rebar Bender with 3/4 inch Rebar Cutter

Mfr.: BN Products
Item #: I077056
Mfr. #: DBC-2520
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $10,153.13
i h h

Description

The DBC-2520 is a professional-grade combination workstation designed for contractors who require high-performance rebar bending and cutting in a single stationary unit. This essential tool integrates the top-selling DBD-25X bender and the DC-20WH rebar cutter onto a heavy-duty stand, providing an ergonomic working height for maximum productivity. The unique design allows the cutter to be easily detached for portable on-site use or locked into position for hands-free operation using the included foot pedal.
  • Dual-purpose design combines a #7 (7/8') capacity bender with a #6 (3/4') capacity cutter
  • Includes a stationary combination stand (BCSE-25X) that positions tools at the ideal working height

Features

  • Versatile operation allows the rebar cutter to be removed from the stand for portable handheld applications.
  • Hands-free control via a standard foot pedal switch for precise bending and cutting.
  • Built-in toggle switch for seamless transitions between bending and cutting functions.
  • High-speed performance with a 7-second bending cycle (180 degrees) and a 3-second cutting speed.
  • Safety-focused engineering including a standard GFI plug and durable steel construction.

Includes

  • DBD-25X Heavy-Duty Rebar Bender
  • DC-20WH Portable Rebar Cutter
  • BCSE-25X Combination Stand
  • 6-Piece Bending Roller Set in Steel Carrying Case
  • Foot Pedal Control Switch
  • Standard Tool Kit
Products specifications
Max Cutting Capacity #6 (3/4 inch) Grade 60 Rebar
Max Bending Capacity #7 (7/8 inch) Grade 60 Rebar
Power Supply 115V, 50/60 Hz
Cutter Motor 115V, 10 Amps
Bender Motor 115V, 12 Amps
Total Weight 250 lbs (113.5 kg)
Bending Speed 7 Seconds (180 deg)
Cutting Speed 3 Seconds
Bending Angle 0 - 180 Degrees
Dimensions 19.25 inch L x 24.75 inch W x 37.25 inch H
*
*
*
