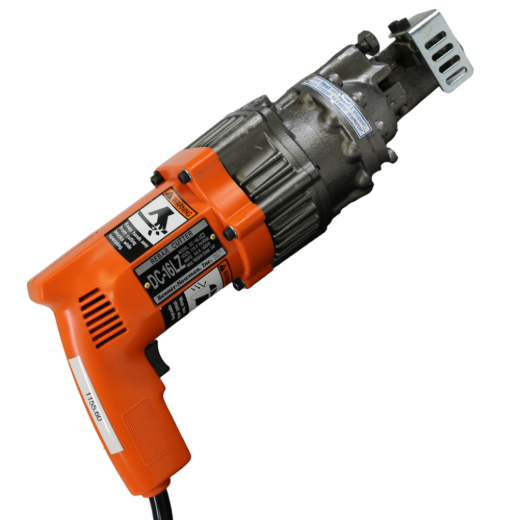

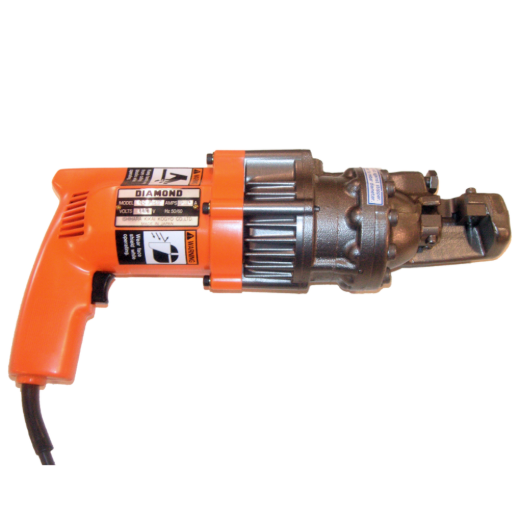

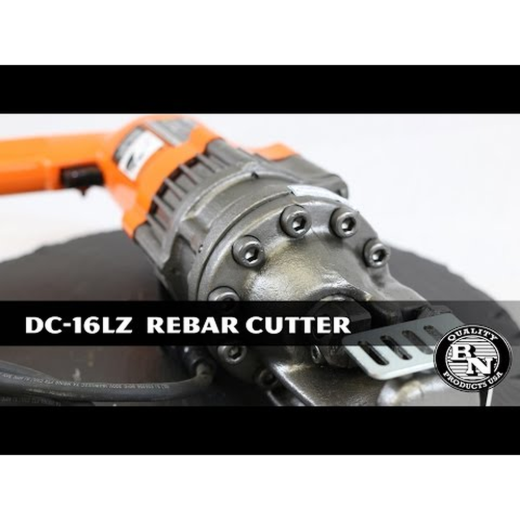

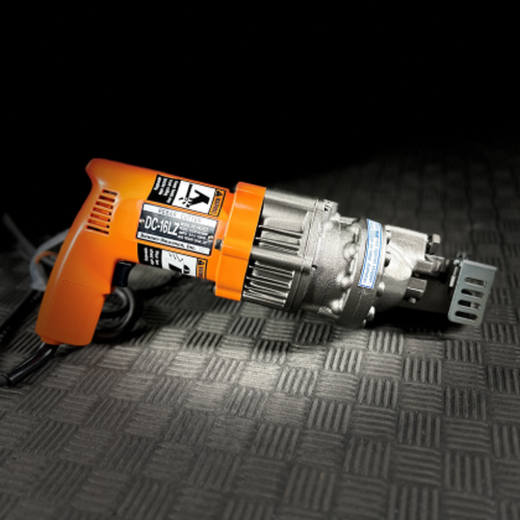

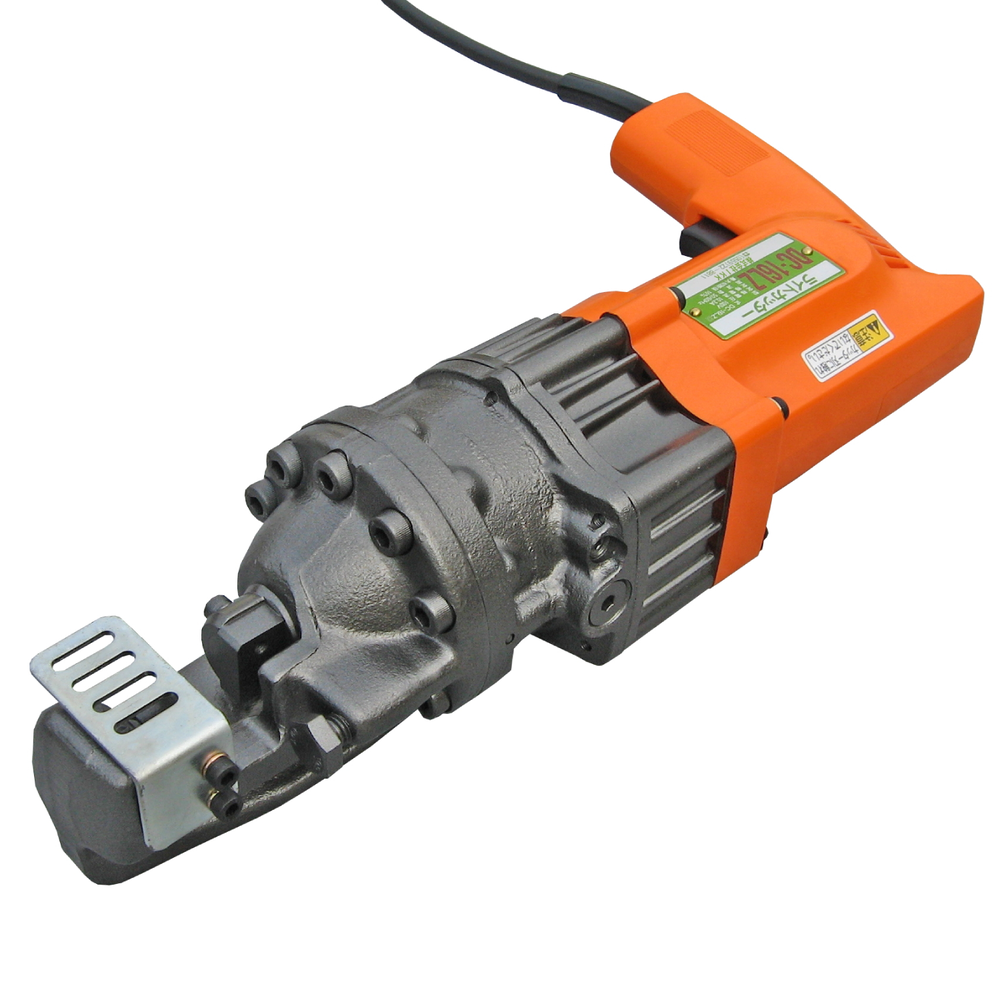

DC-16LZ Portable #5 Rebar Cutter

Mfr.: BN Products
Item #: I077069
Mfr. #: DC-16LZ
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $1,414.88
i h h

Description

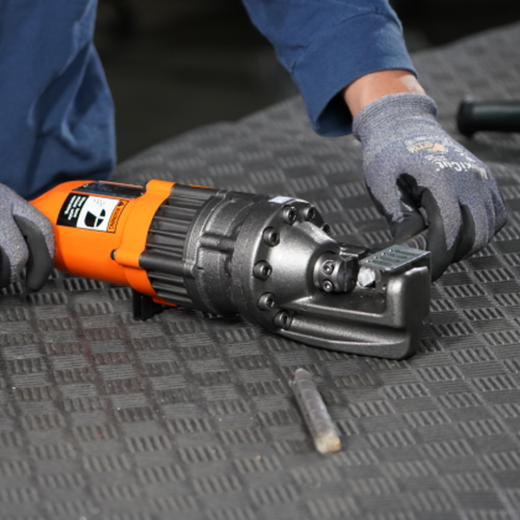

The DC-16LZ is a medium-duty portable rebar cutter designed to safely, efficiently, and cleanly cut reinforcing steel up to 5/8 (#5) diameter Grade 60. This self-contained electric/hydraulic unit provides effortless cutting for both vertical and horizontal applications, making it an essential tool for swimming pool, masonry, and ICF contractors. As a cold-cutting shear, it eliminates the hazards of sparks or flames associated with abrasive blades and torches.
  • Cold-Cutting Technology: No sparks, flames, or abrasive dust during operation.
  • Fast Performance: Delivers a clean shear in just 2 seconds with 13 tons of pressure.

Features

  • Lightweight 15-pound design for superior portability and maneuverability on the job site.

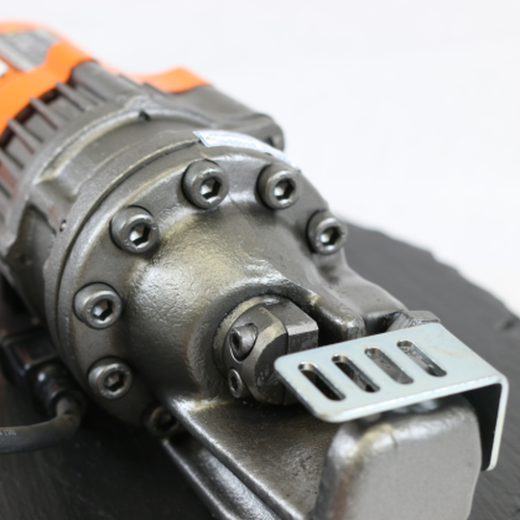

  • Equipped with a safety relief valve for easy piston retraction and a protective cutting guard.
  • Double-insulated electric motor ensures safe operation without the need for a grounded power source.
  • Includes long-life alloy tool-steel cutting blocks and a precision-balanced armature for durability.

Includes

  • Carrying Case
  • Hydraulic Oil
  • Tool Kit
  • Removable Side Handle
Products specifications
Max Cutting Capacity 5/8 inch (#5) Grade 60 Rebar
Cutting Speed 2 Seconds
Cutting Pressure 13 Tons
Tool Weight 15 lbs (6.8 kg)
Dimensions 14.8 inch x 6.8 inch x 4.1 inch
Power Supply 115V, 50/60Hz, 9 Amps
Motor Type Double-Insulated Electrical
Replacement Blocks RB-16LZ
Warranty 1-Year Parts and Labor
*
*
*
