  • DCM-32 Sigma Series Professional Rebar Cutter

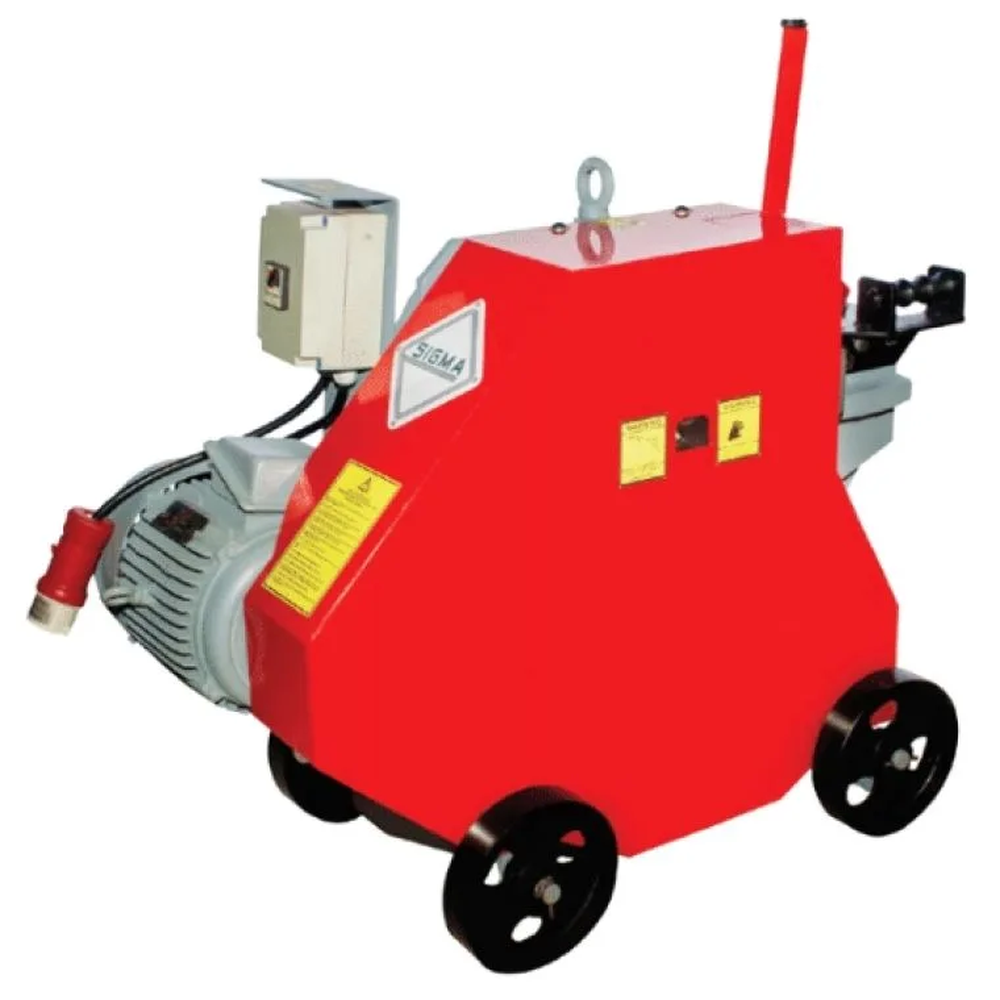

DCM-32 Sigma Series Professional Rebar Cutter

Mfr.: BN Products
Item #: I077073
Mfr. #: DCM-32
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $13,590.36
i h h

Description

The DCM-32 Sigma Series is a heavy-duty, industrial-grade mechanical rebar cutter designed for high-volume production in shops or on job sites. This powerful machine is engineered to shear up to #10 (32mm) Grade 60 rebar with a split-second cycle time and minimal operator effort. Its robust steel alloy body and hardened gear systems ensure long-term durability in demanding construction environments.
  • Maximum cutting capacity of #10 (32mm) Grade 60 rebar
  • Dual-bar capacity for shearing two #6 (20mm) bars simultaneously
  • Powered by a high-performance 5 HP (3.7 kW) industrial motor

Features

  • Unique 8-sided rotating cutting blades extend the life of shearing edges
  • Flywheel-powered mechanical clutch system for instantaneous cutting power
  • Semi-portable design with a robust steel alloy body casting for stability
  • Adjustable stopper spindle provides essential support during the shearing process

Includes

  • DCM-32 Rebar Cutting Machine
  • Installed 8-Sided Shearing Blade Set
  • Technical Operating and Maintenance Manual
Products specifications
Motor Power 5 HP (3.7 kW)
Operating Voltage 240/415V 3-Phase AC
Frequency 60 Hz
Max Capacity #10 (32mm) Grade 60 Rebar
Multi-Bar Capacity (2) #6 (20mm) Grade 60 Bars
Blade Type 8-Sided Rotating Steel
Machine Weight 805 lbs (365 kg)
Dimensions 40.35 inch L x 22.05 inch W x 29.50 inch H
Operating Speed 1400 RPM
Body Material Cast Steel Alloy
*
*
*
